24

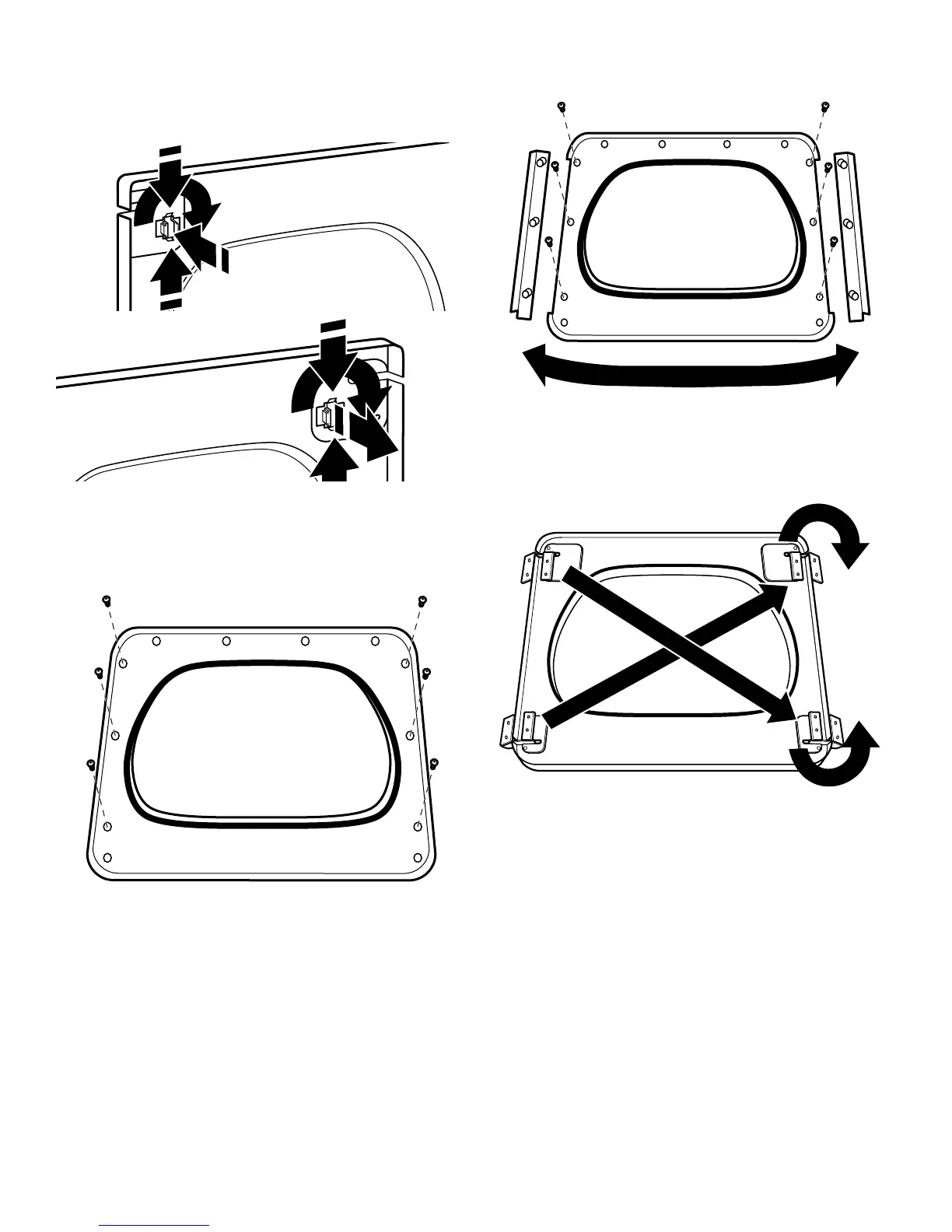

7. Remove the 3 screws down the left and right sides
of the door to remove the outer trim pieces.
9. Add the hinges to the right side of the door and then ip
the hinge labeled 1 to the bottom of the right side and the
hinge labeled 2 to the top of the right side of the door.
6. Remove the door hinges and set off to the side.
8. Lift door up and rotate trim pieces to the opposite side they
were removed from. Then screw trim pieces back in.
5. Remove the door strike plug with a athead screw driver.
Remove door strike by pinching the clips from the inside
door panel and then rotate and push out the front. Insert
door strike on the other side of dryer door by pushing in
and then add the door strike plug.
