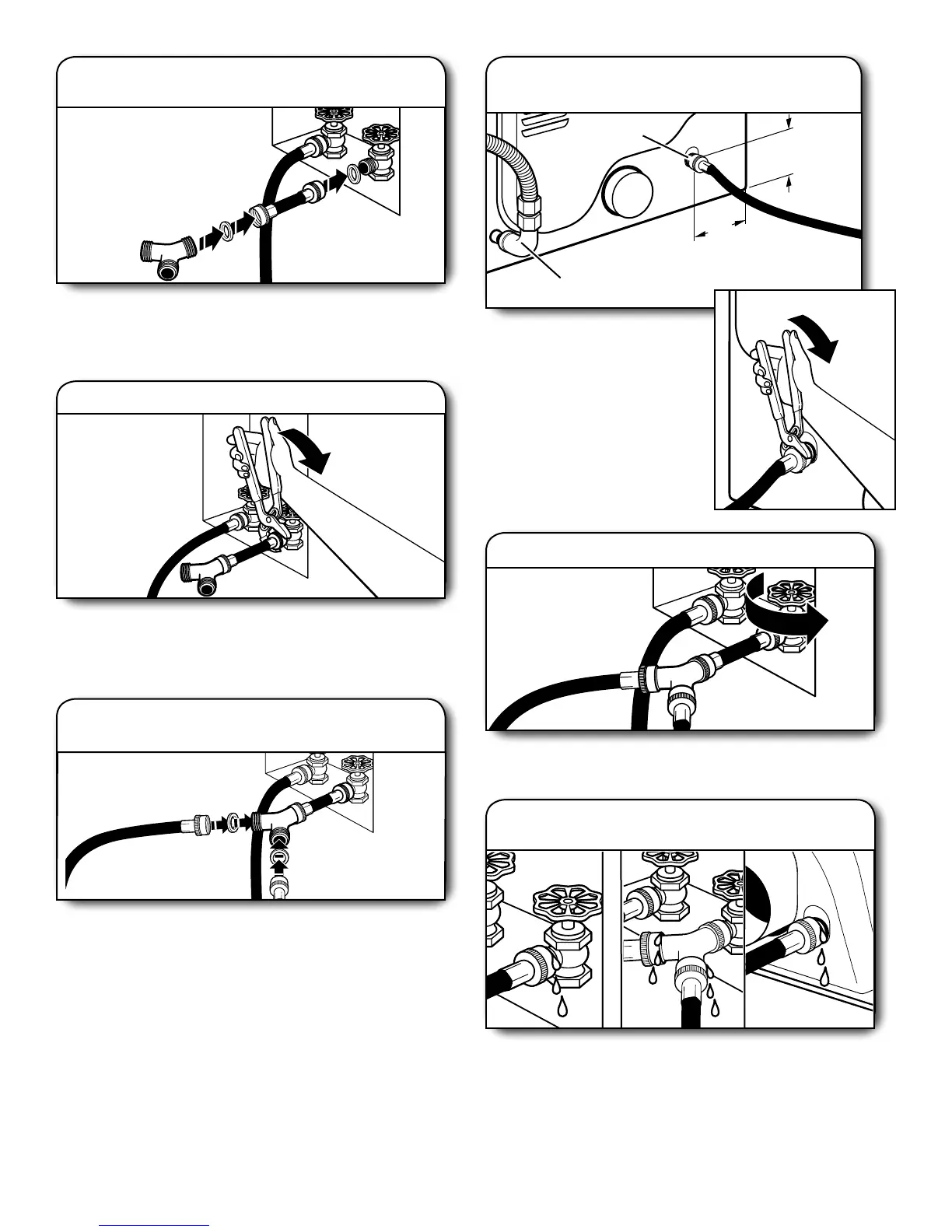

Tighten couplings
3.
Using pliers, tighten the couplings with additional two-thirds
turn.
NOTE: Do not overtighten. Damage to the coupling can result.
Attach short hose and
“Y” connector
2.
Attach 2 ft (0.6 m) inlet hose to cold water faucet. Screw on
coupling by hand until it is seated on faucet. Then attach “Y”
connector to male end of the 2 ft (0.6 m) inlet hose. Screw on
coupling by hand until it is seated on connector.
Attach long hose to “Y”
connector and tighten couplings
4.
Attach dryer 5 ft (1.5 m) inlet hose ends to the “Y” connector.
Attach washer cold inlet hose to other side of “Y” connector.
Screw on coupling by hand until it is seated on connector.
Using pliers, tighten the couplings an additional two-thirds
turn.
NOTE: Do not overtighten. Damage to the coupling can result.
5
7
/8"
(150 mm)
4
1
/2"
(115 mm)
Attach long hose to dryer ll
valve and tighten coupling
5.
Attach other end of long hose
to ll valve at bottom of dryer
back panel. Screw on coupling
by hand until it is seated on ll
valve connector. Using pliers,
tighten the couplings an additional
two-thirds turn.
NOTE: Do not overtighten. Damage
to the coupling can result.
Check for leaks
7.
Check for leaks around “Y” connector, faucets, and hoses.
Turn on cold water faucet
Check that the water faucet is turned on.
6.
Gas Valve
Fill Valve
To Next Page
