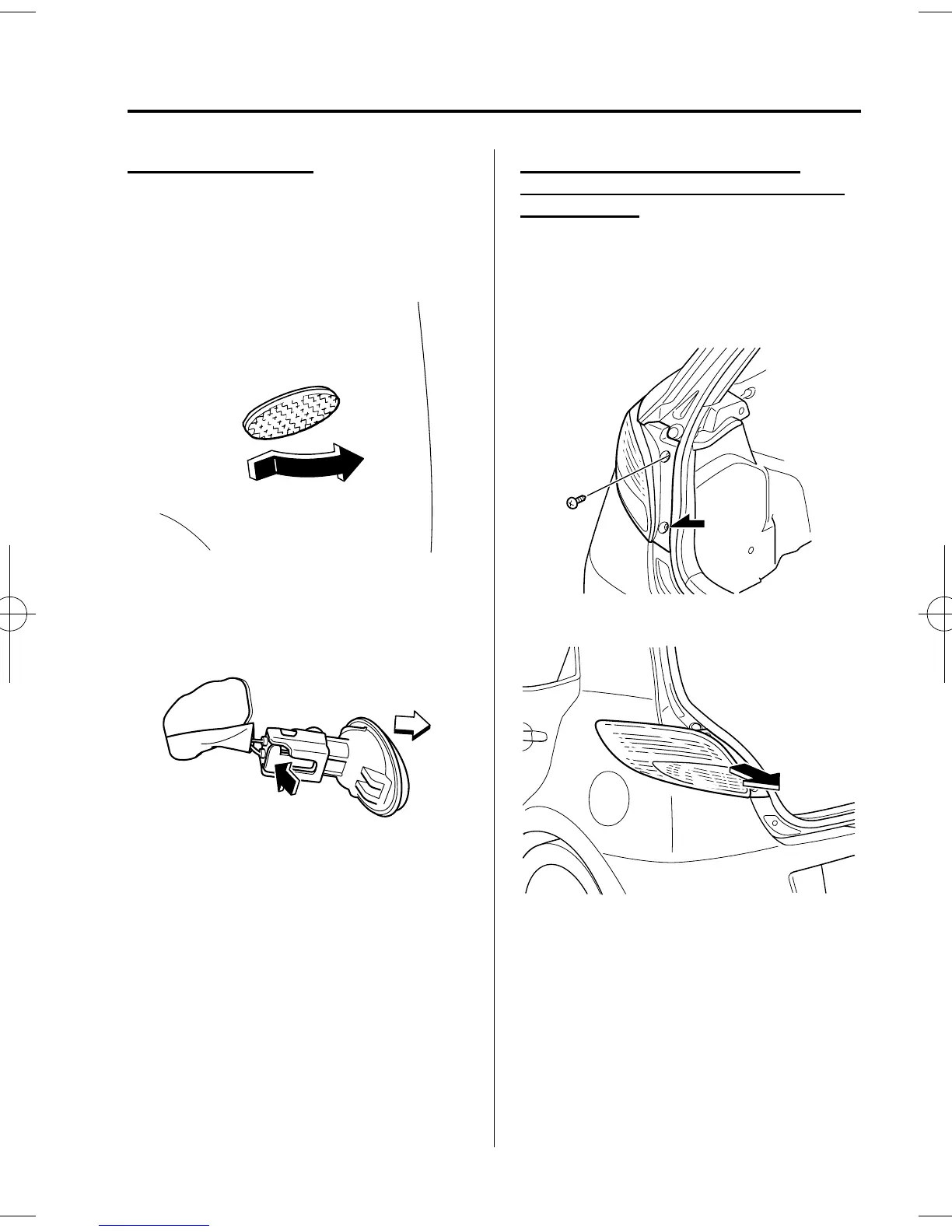

Side turn signal lights
1. Make sure the ignition is switched off,
and the turn signal switch is off.
2. Slide the unit as shown in the figure to
remove it.
3. Detach the electrical connector from
the unit by pulling it outward.
4. Install the ne w side turn signal unit in
the reverse order of the removal
procedure.
NOTE
Bulb replacement is not possible because it is
built into the unit. Replace the unit.
Brake lights/Taillights (Rear side
marker lights)/Rear turn signal lights/
Reverse lights
1. Make sure the ignition is switched off
and the headlight switch is off.
2. Turn the bolts counterclockwise and
remove them.
3. Pull the unit rearward to remove it.
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Disconnect the bulb from the socket.
