8-40
Maintenance and Care
Owner Maintenance
Form No. 8Q36-EA-01F

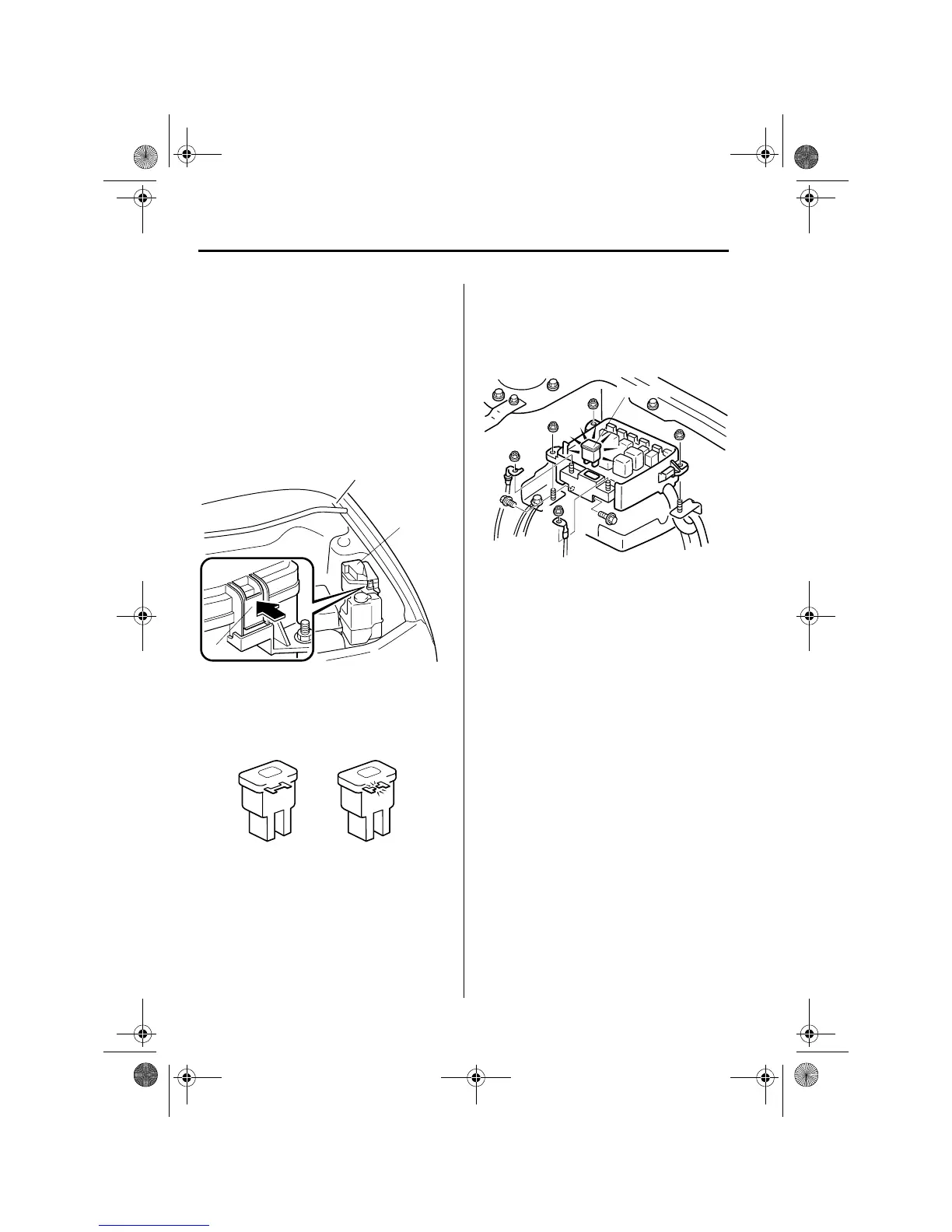

If the headlights or other electrical
components don’t work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
3. If a fuse is blown, replace it with a new
one
of the same rating.
When replacing the 100A fuse:
1. Turn off the ignition switch.
2. Remove the negative battery terminal.
3. Remove the A nuts.
4. Lift the fuse block and remove the B
bolts.
5. Replace the fuse with a new one
of the
same rating.
6. Install in the reverse order of removal.
Tab
Fuse block
cover
Normal Blown
100A fuse
A
A
A
B
A
B
A
J39L(02MY).book Page 40 Thursday, November 1, 2001 10:49 AM
