Mazda 2002 Protege - Fuse Panel Description

8-42
Maintenance and Care
Owner Maintenance
Form No. 8Q36-EA-01F

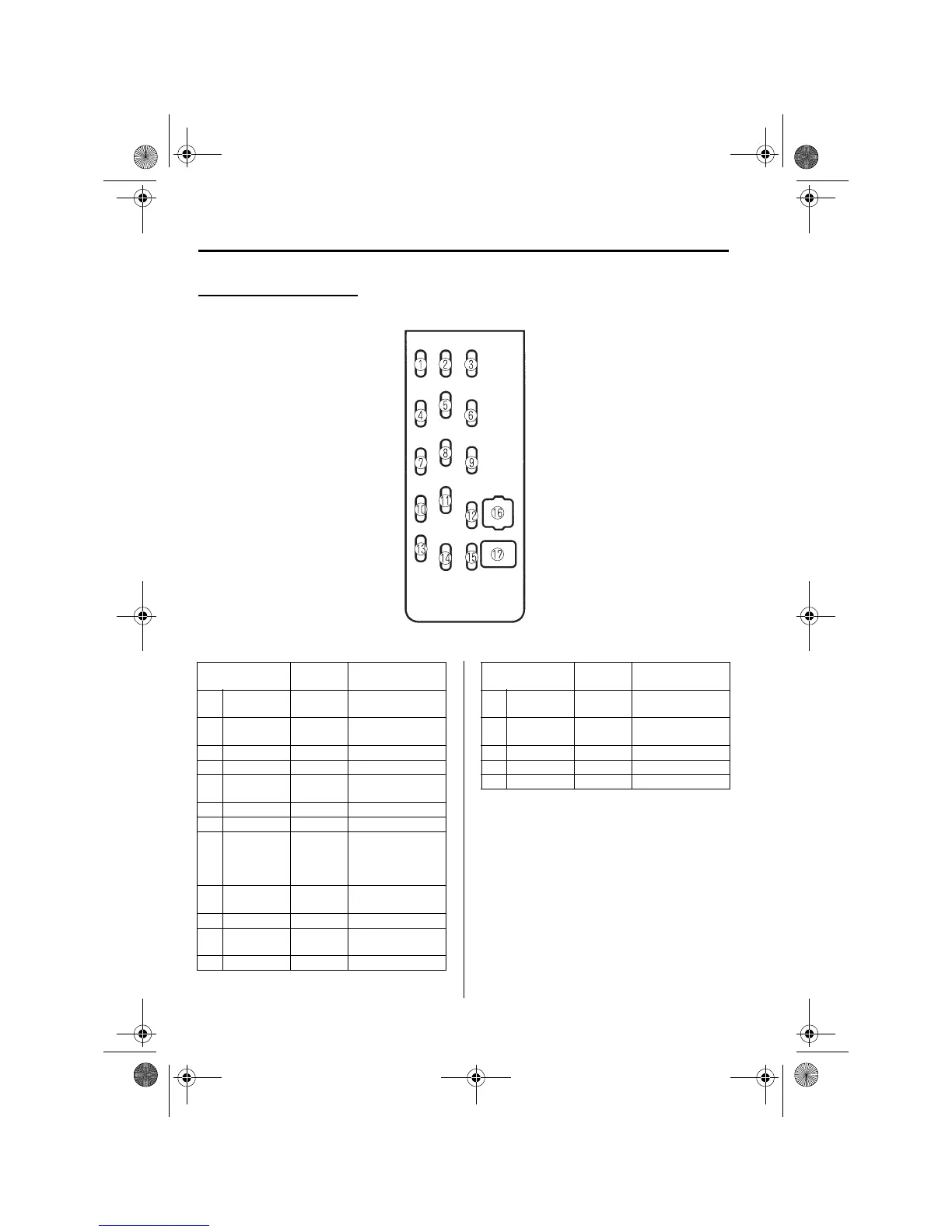

Fuse panel (Driver’s side)
DESCRIPTION
FUSE
RATING
PROTECTED
COMPONENT
1(S/WRM) 15 A
For protection of
various circuits
2 (H/CLN) 20 A
For protection of
various circuits
3 (RADIO) 15 A Audio system
4 (A/C) 15 A Air conditioner
5 (R.WIPER) 10 A
For protection of
various circuits
6 —— —
7 —— —
8 ROOM 10 A
Interior lights,
Trunk light,
Luggage
compartment light
9
(MIRR
DEF)
10 A —
10 —— —
11
(DOOR
LOCK)
30 A Power door lock
12 (P/WIND) 30 A —
DESCRIPTION
FUSE
RATING
PROTECTED
COMPONENT
13 WIPER 20 A
Windshield wiper
and washer
14 ENGINE 10 A
Engine control
unit
15 METER 10 A Instrument cluster
16 —— —
17 (P/WIND) 30 A Power windows
