Mazda 2002 Protege - Fuse Panel Description

8-41
Maintenance and Care
Owner Maintenance
Form No. 8Q36-EA-01F
▼
Fuse Panel Description

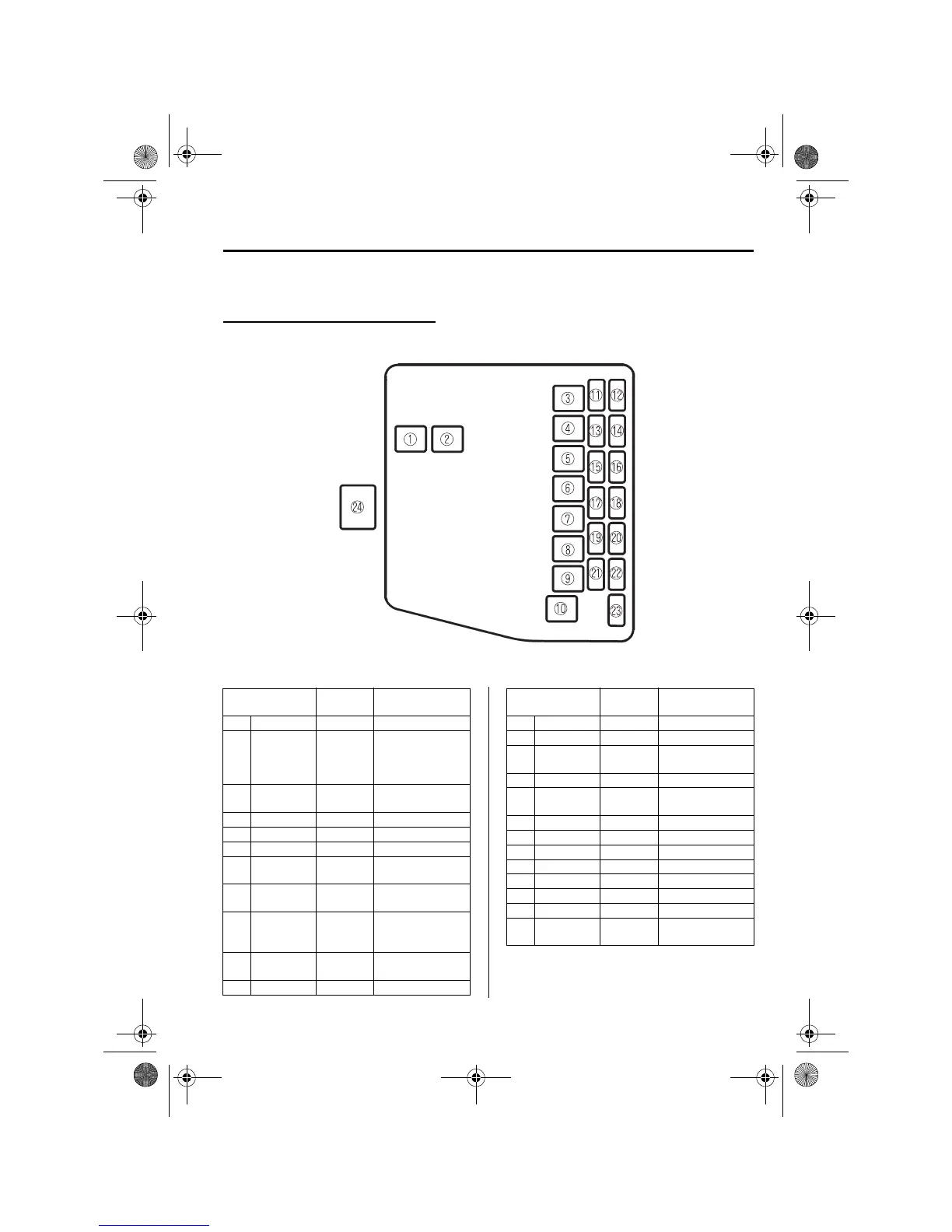

Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED
COMPONENT
1 HEATER 40 A Heater
2 (ABS) 60 A
Antilock brake
system, For
protection of
various circuits
3 IG KEY 60 A
For protection of
various circuits
4 (PTC) 30 A —
5 (GLOW) 40 A —
6 —— —
7
COOLING
FAN
30 A Cooling fan
8 BTN 40 A
Interior lights,
Power door lock
9 (AD FAN) 30 A
Additional
cooling fan for air
conditioner
10
INJ OR
FIP
30 A
Engine control
unit
11 (A/C) 10 A Air conditioner
DESCRIPTION
FUSE
RATING
PROTECTED
COMPONENT
12 (ST.SIG) 10 A Starter signal
13 HORN 15 A Horn
14 HAZARD 15 A
Hazard warning
flashers
15 TAIL 15 A Taillights
16
(HEAD
C/U)
7.5 A
For protection of
various circuits
17 (FOG) 15 A —
18 (FOG) 15 A Fog lights
19 STOP 15 A Brake lights
20 HEAD-R 15 A Headlight-right
21 HEAD-L 15 A Headlight-left
22 —— —
23 HEAD HI 15 A —
24 MAIN 100 A
For protection of
all circuits
