qFuse Panel Description

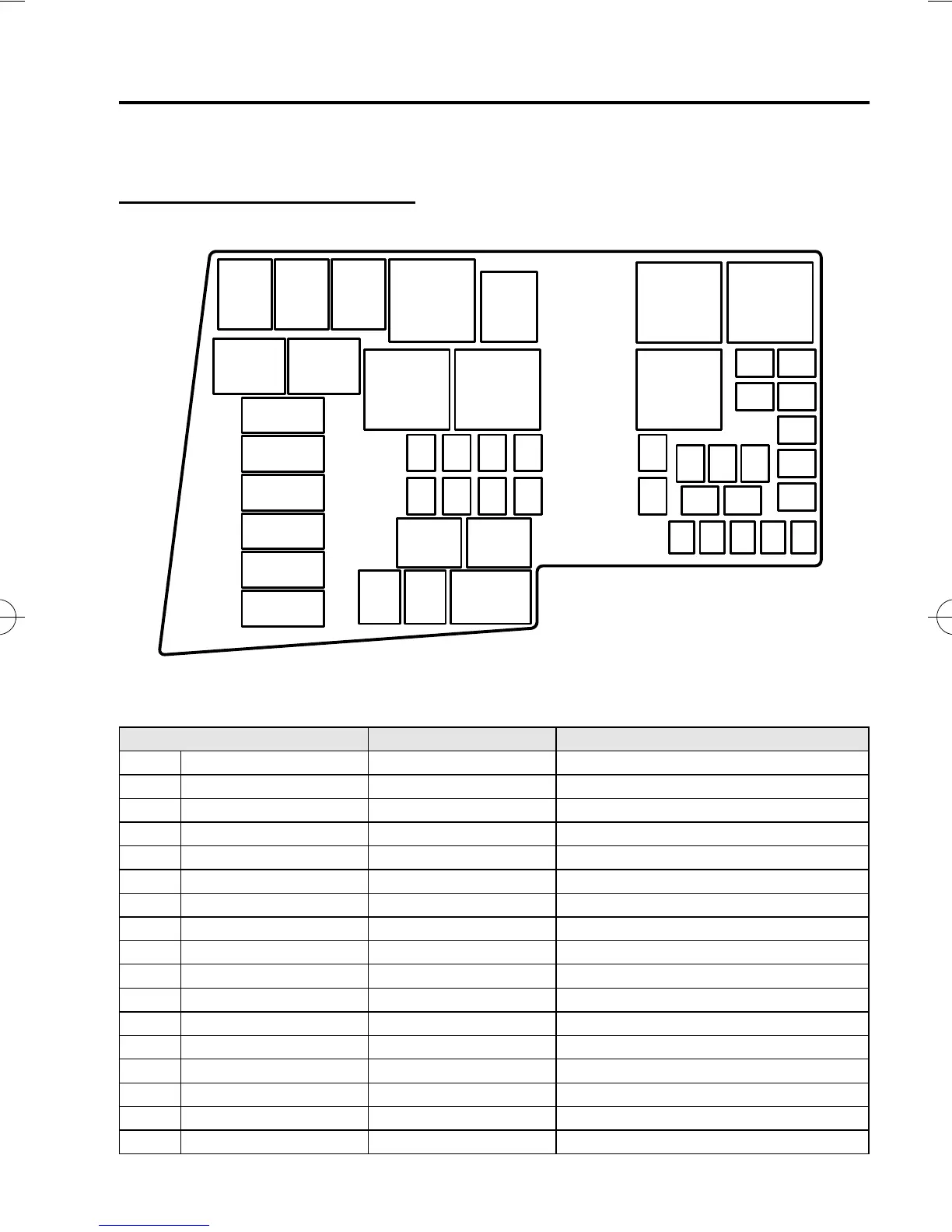

Fuse block (Engine compartment)
1
2
3
4
5
6
78
9
10
11
12
13
14
15
16
17
18
19
20 21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
Without turbocharger
DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 FAN 40A Cooling fan
2 P/ST 80A Power steering
3 BTN 40A For protection of various circuits
4 HEAD 40A Headlights
5 PTC ――
6 GLOW ――
7 ABS 1 30A ABS
í
, DSC
í
8 ABS 2 20A ABS
í
, DSC
í
9 ENGINE 30A For protection of various circuits
10 ―― ―
11 IG KEY 1 30A Ignition switch
12 STARTER 20A Starter clutch
13 IG KEY 2 30A Ignition switch
14 GLOW 1 ――
15 HEATER 40A Blower motor
16 GLOW 2 ――
17 DEFOG 40A Rear window defroster
Maintenance and Care
Owner Maintenance
8-55
í
Some models.
