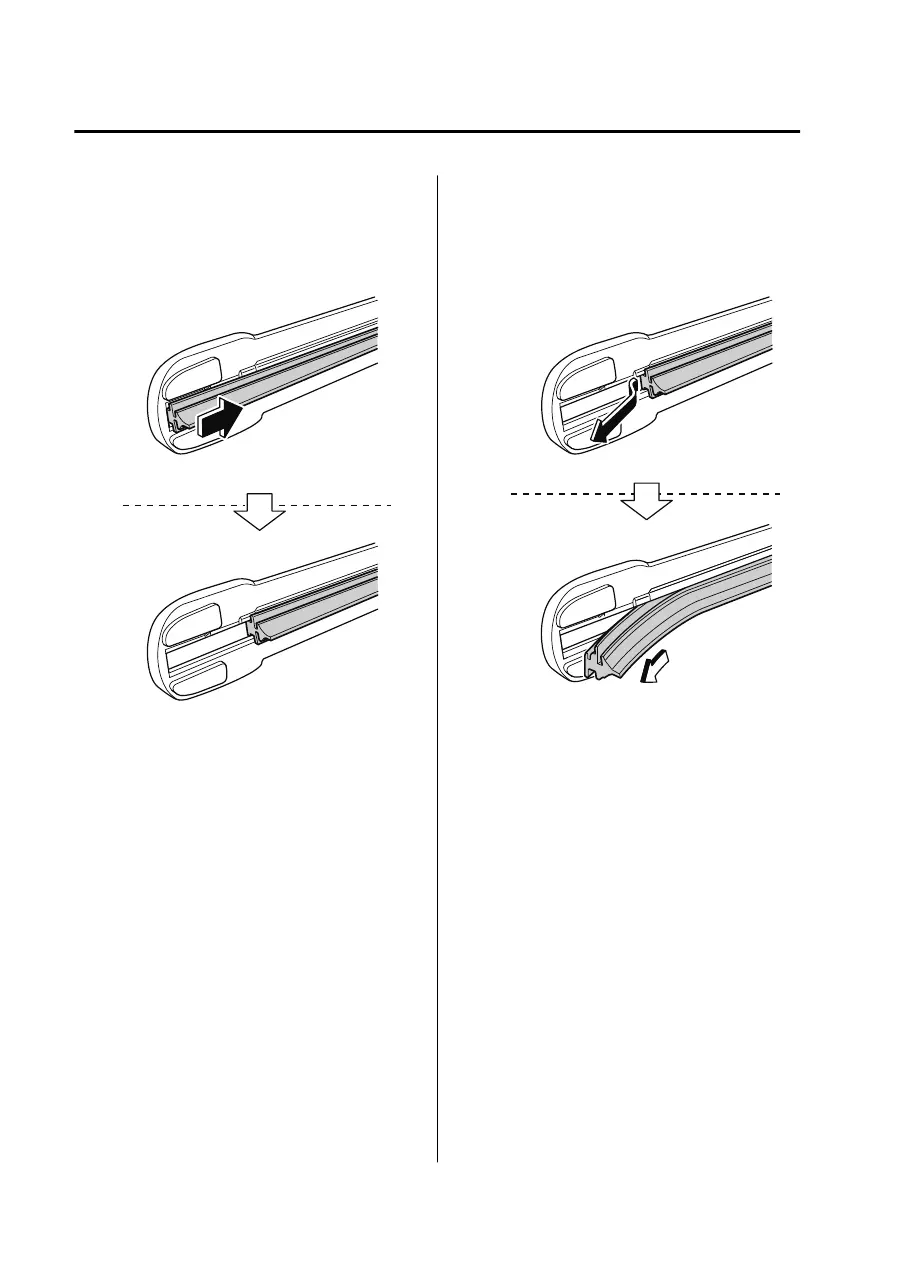

4. Pull the blade rubber in the direction of
the arrow and slide it to a position
where the blade holder groove can be
checked.
5. Pull the end of the blade rubber from
the blade holder groove in the direction
of the arrow and remove the blade
rubber from the blade holder.
Maintenance and Care
Owner Maintenance
6-22
