Body & Accessories Lighting Systems
Lighting Systems
Features
• The construction and operation of the lighting systems is essentially carried over from
that of the current Mazda3 except for the following features:
– LED brake light/taillight has been added for 4SD vehicles (depending on vehicle
grade).
– Headlight auto-leveling control module connected to the DLC-2 (similar to that of the
Mazda5)
– Initialization procedure for the headlight auto-leveling control module has been
added (similar to that of the Mazda5).
Headlight Auto-leveling System

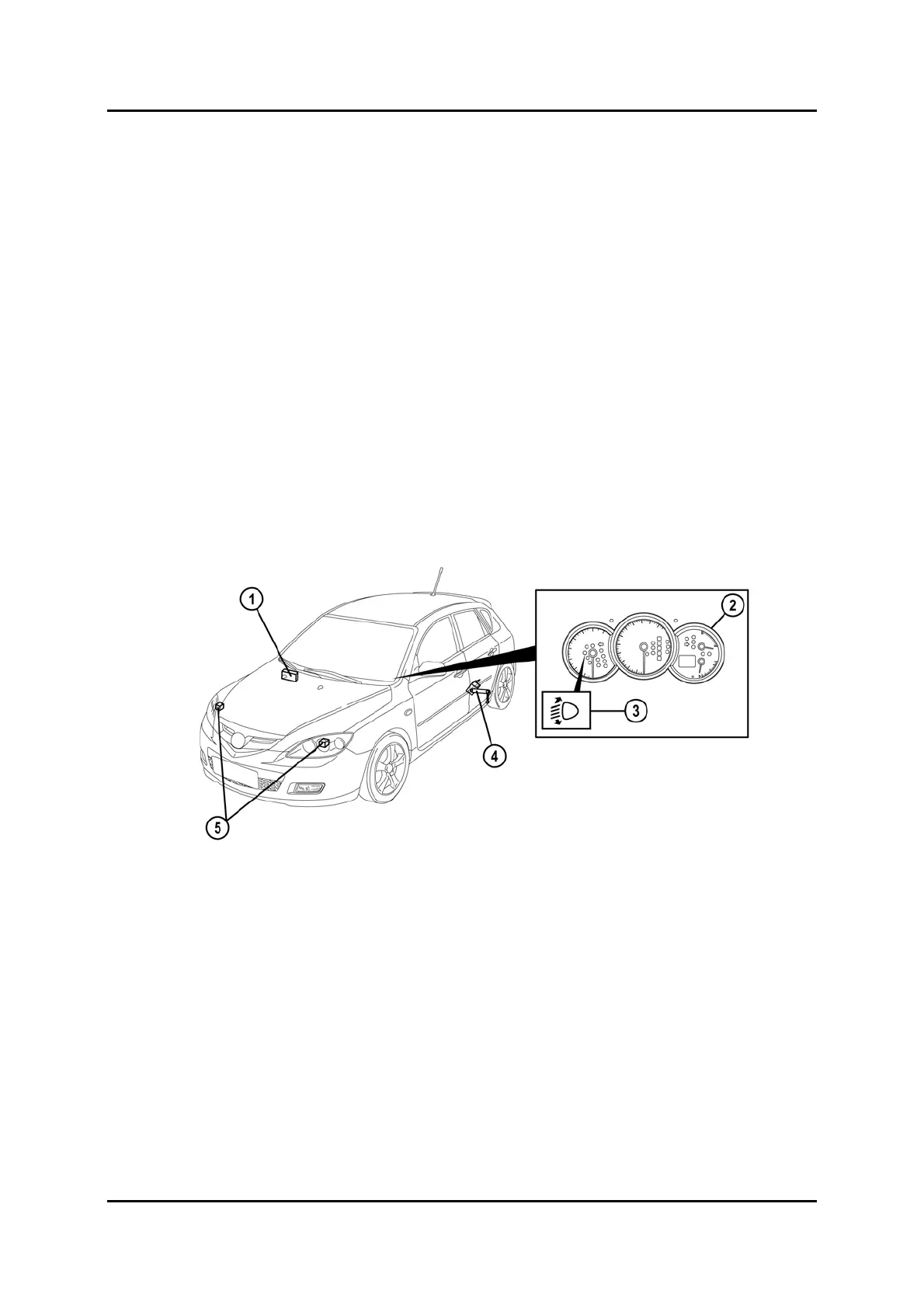

Parts Location
M3FL_09008
1 Auto-leveling control module 4 Auto-leveling sensor
2 Instrument cluster 5 Headlight leveling actuator
3 Auto-leveling warning light
