Entertainment Body & Accessories
System Overview
M3FL_09010

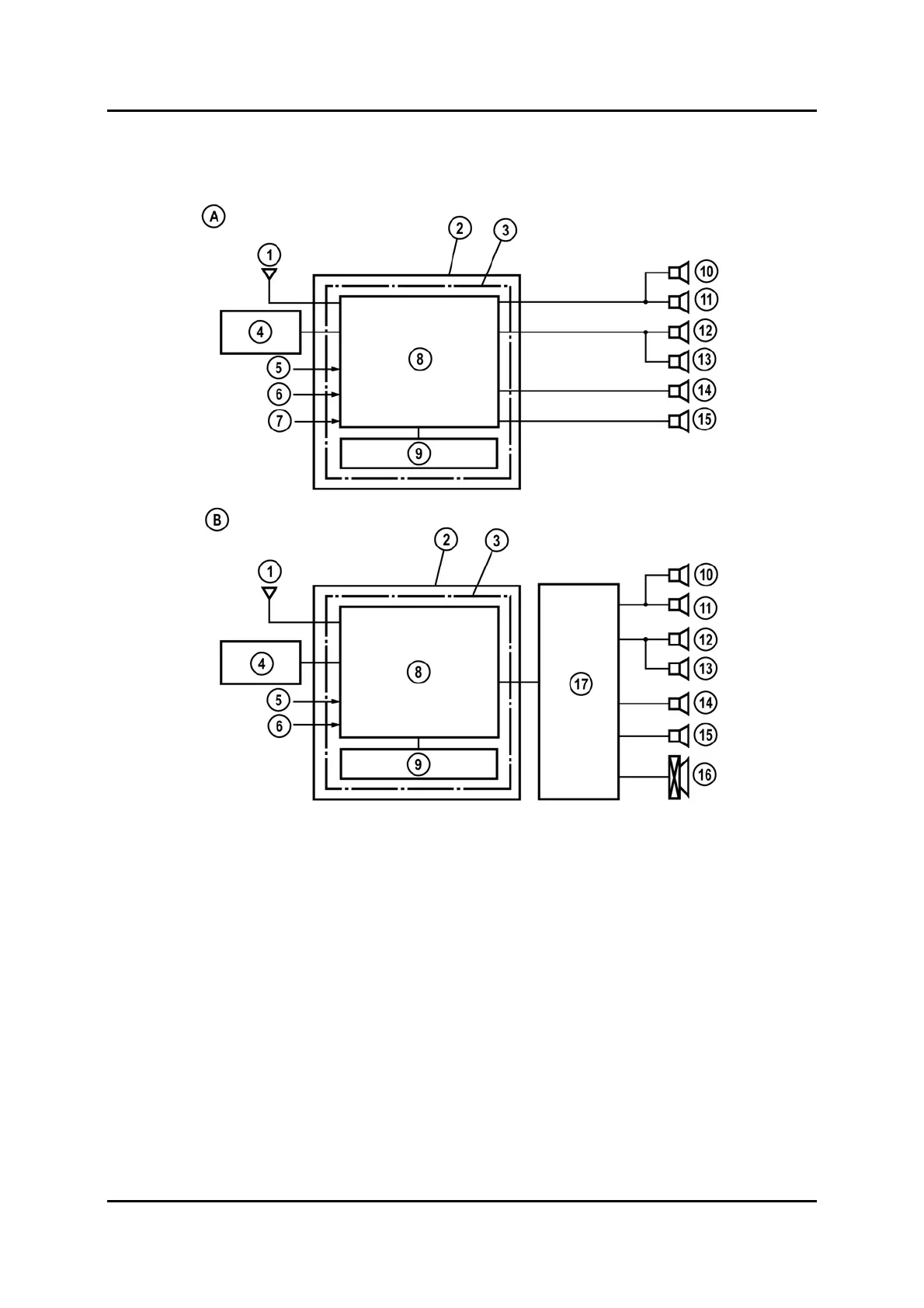

A Standard audio system B Bose audio system
1 Antenna 10 Front tweeter (right)
2 Center panel module (integrated in audio
unit)
11 Front door speaker (right)
3 Audio unit 12 Front door speaker (left)
4 Audio control switches 13 Front tweeter (left)
5 TNS signal 14 Rear door speaker (right)
6 VSS 15 Rear door speaker (left)
7 Remote control (with music HDD) 16 Woofer
8 Base unit 17 Audio amplifier
9 Lower module (without music HDD)
09-28 Service Training Mazda3 F/L
