Side turn signal lights

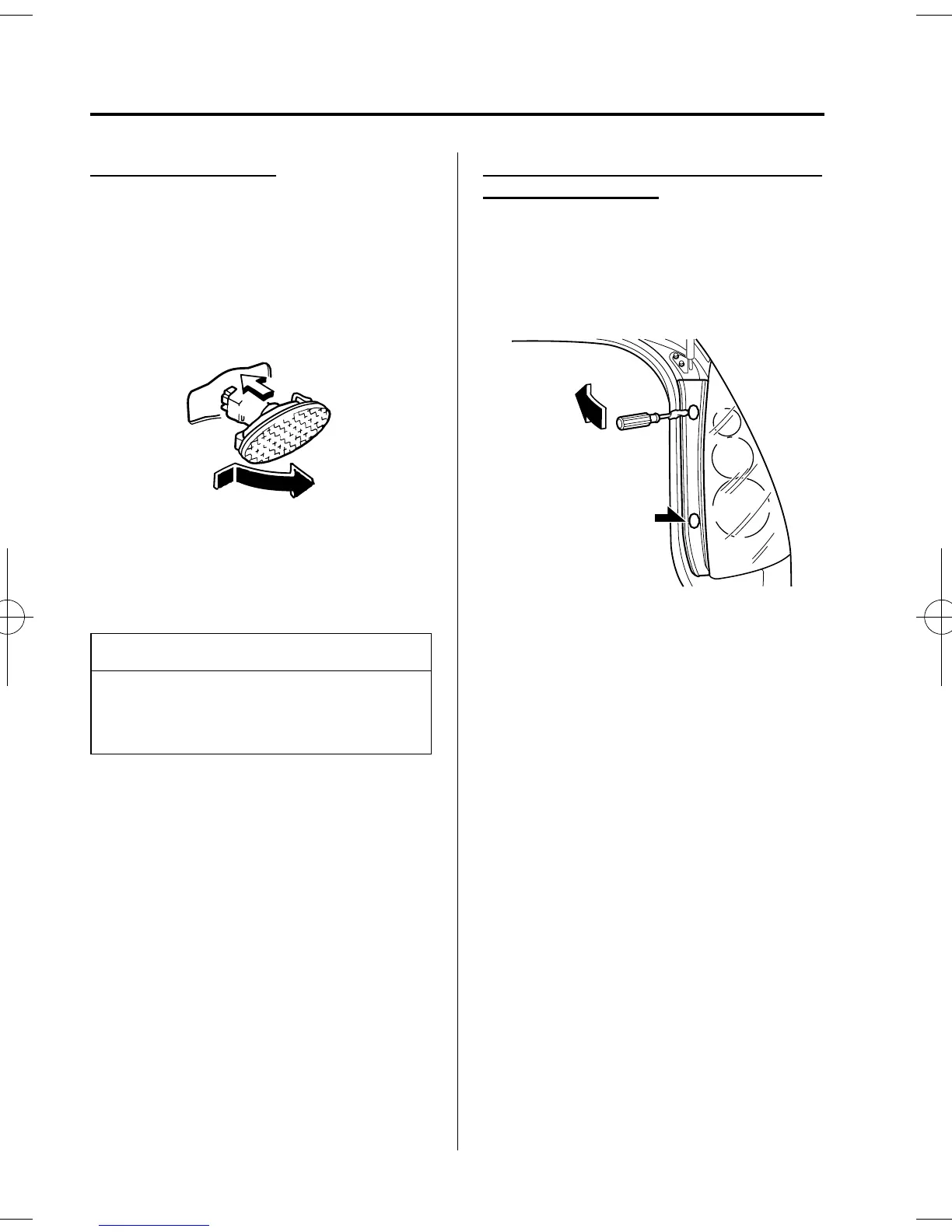

1. Slide the unit as shown in the figure to
remove it.
2. Disconnect the electrical connector
from the unit.
3. Install the new side turn signal unit in
the reverse order of removal.
NOTE
Bulb replacement is not possible
because it is built into the unit. Replace
the unit.
Brake lights/Taillights, Rear turn signal
lights, Reverse lights
1. Wrap a flat head screwdriver with a soft
cloth to prevent damage to the rear
combination component and gently
insert it in the cover as shown in the
figure, and then remove the cover.
2. Remove the screws with a Phillips
screwdriver and remove the rear
combination component.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
8-38
Maintenance and Care
Owner Maintenance
