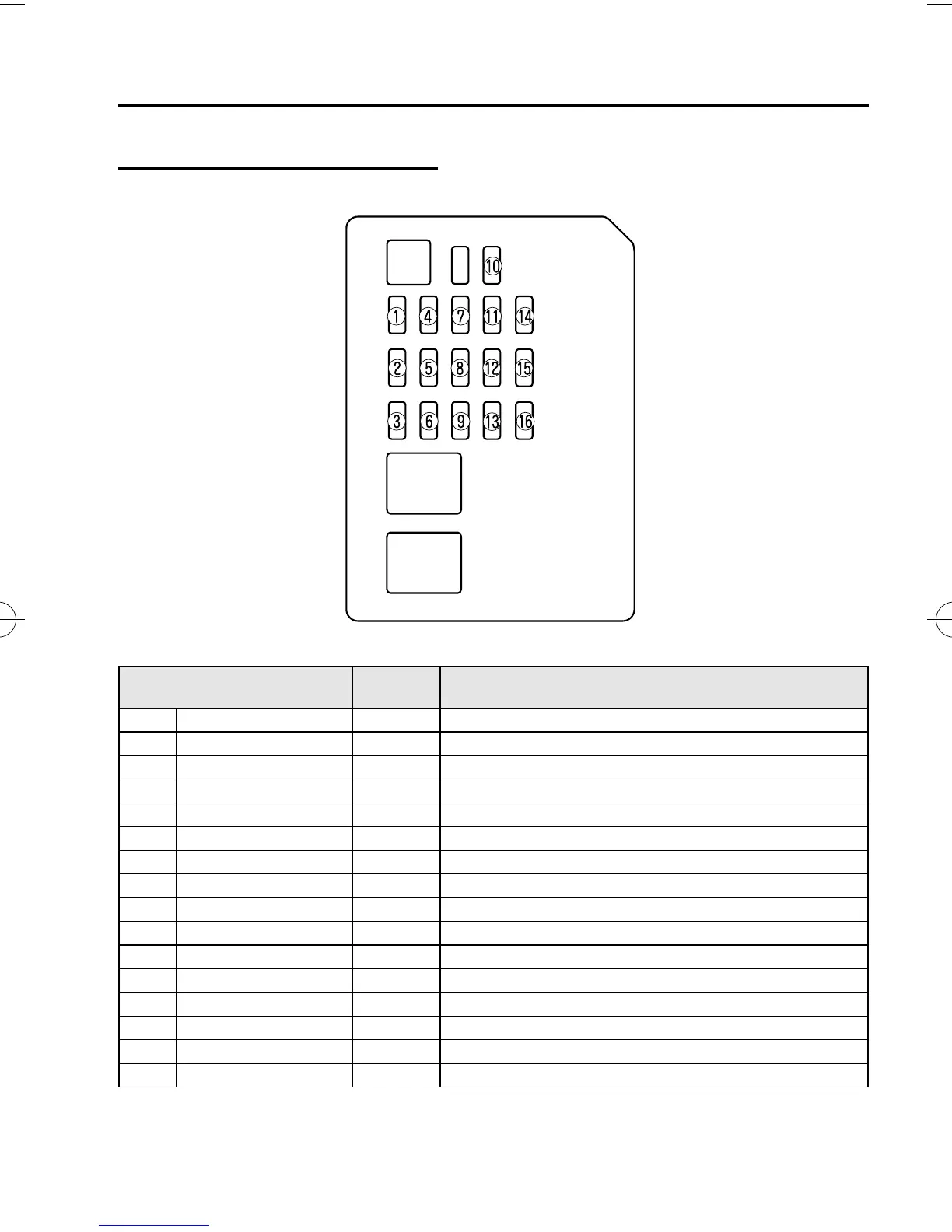

Fuse block (Driver's side kick-panel)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 CIGAR 15 A Accessory socket
2 ENGINE IG 15 A Engine control system
3 A/C 10 A Heater
4 MIRROR 5 A Power control mirror
5 SAS 10 A ABS unit, SAS unit
6 SEAT 15 A Seat warmer
í
7 METER ACC 5 A Audio light off unit
8 METER IG 15 A Instrument cluster
9 R.WIP 10 A Rear wiper
í
10 D.LOCK 30 A Power door locks
11 R.CIGAR 15 A Accessory socket
12 WIPER 20 A Windshield wiper and washer
13 ROOM 15 A Overhead light
14 SPARE ――
15 SPARE ――
16 SPARE ――
