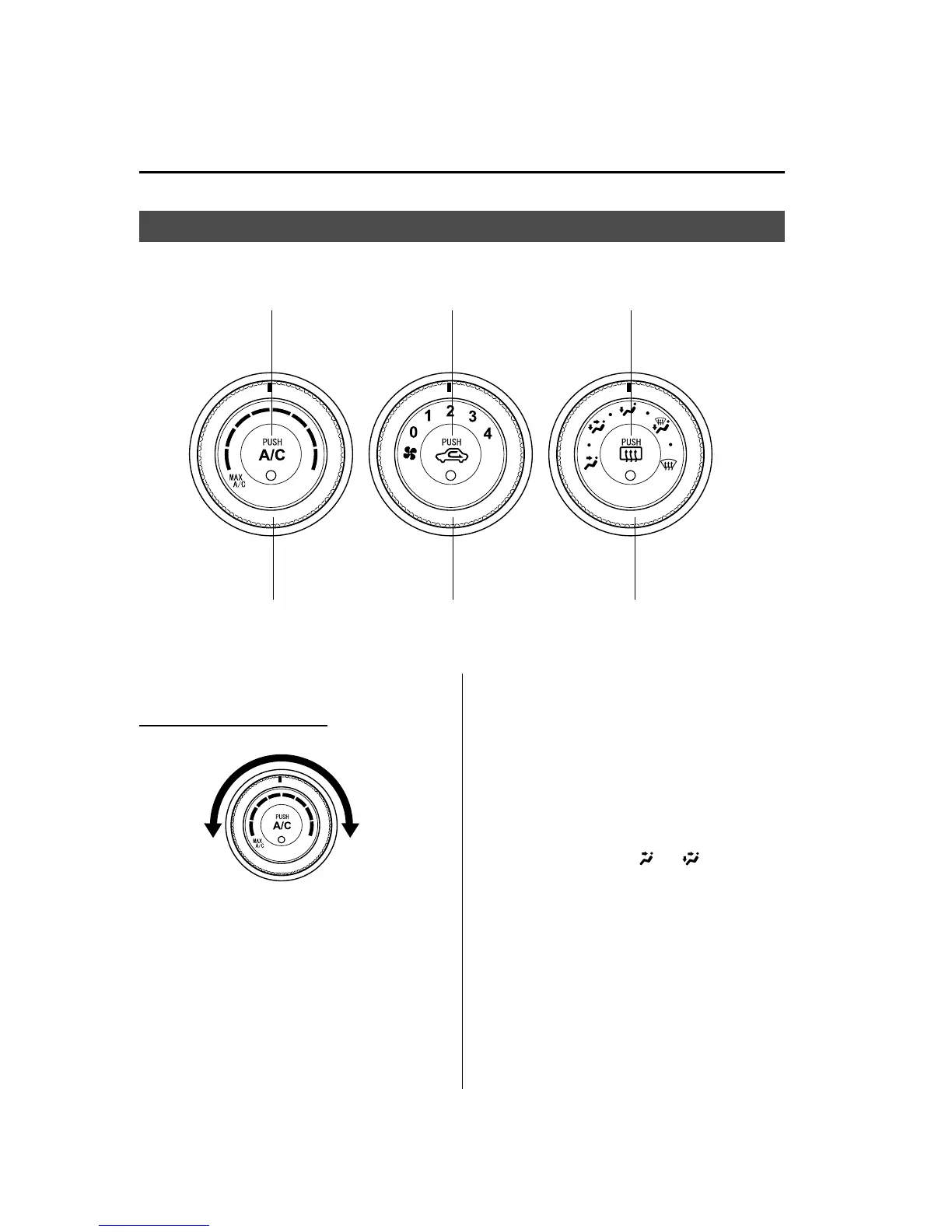

Temperature control dial
Fan control dial
Mode selector dial
A/C switch Air intake selector
Rear window defroster switch
qControl Switches
Temperature control dial
Cold Hot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
MAX-A/C position
For quick cabin cooling, rotate the
temperature control dial counterclockwise
to the MAX-A/C position. The A/C
system automatically turns on and the air
intake mode switches to the reci rculation
position automatically.
NOTE
When the mode is set to or with the fan
control dial in a position other than 0 and the
temperature control dial in the maximum cold
position, the air intake selector switches to the
recirculated air mode and the A/C turns on
automatically.
If A/C is not desired, press the A/C switch to
turn it off.
6-6
Interior Comfort
Climate Control System
