DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
47 FUEL WARM 25 A
Fuel warmer
*
48 TAIL 15 A Taillights, License plate lights, Parking lights
49
SCR2
FUEL PUMP2
25 A
Engine control system
*
50 HAZARD 25 A Hazard warning flashers, Turn signal lights, Parking lights
51 H/L LOW R 15 A Headlight low beam (RH)
52 OUTLET 25 A Accessory sockets
53 STOP 10 A Brake lights
54 ROOM 25 A For protection of various circuit

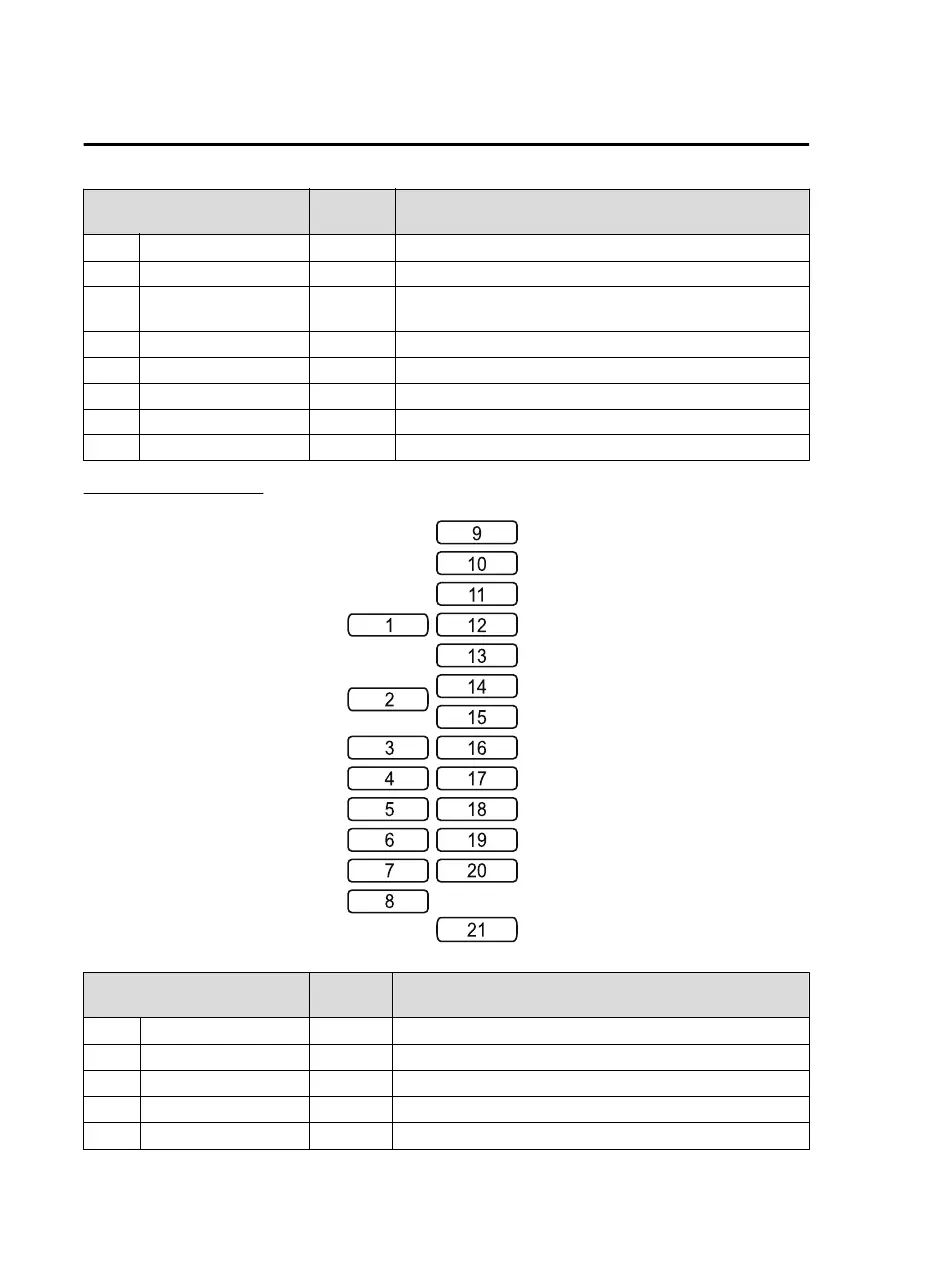

Fuse block (Left side)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 P.SEAT D 30 A
Power seat
*
2 P.WINDOW3 30 A Power windows
3 R.OUTLET3 15 A Accessory sockets
4 P.WINDOW2 25 A Power windows
5ESCL15 A
Trailer hitch
*
Maintenance and Care
Owner Maintenance
6-58
*Some models.
