SRS Air Bag Deployment Criteria

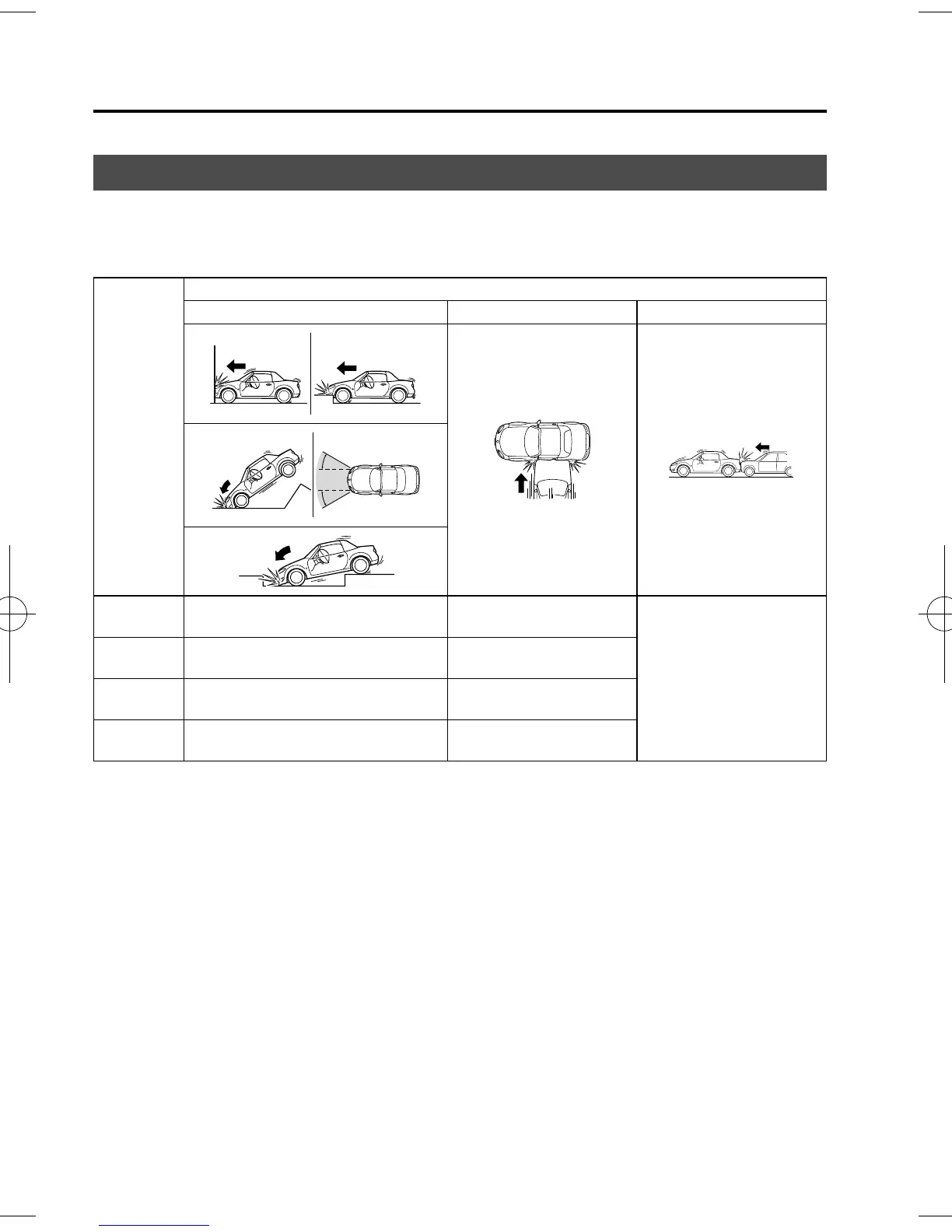

This chart indicates the applicable SRS equipment that will deploy depending on the type
of collision.
(The illustrations are the representative cases of collisions.)
SRS
equipment
Types of collision
A severe frontal/near frontal collision A severe side collision A rear collision
Seat belt
pretensioner
X
*1
(both sides)
No air bag and front seat
belt pretensioner will be
activated in a rear collision.
Driver air
bag
X
Passenger air
bag
X
*1
Side air
bag
í
X
*1
(impact side only)
X: The SRS air bag equipment is designed to deploy in a coll ision.
*1: The passenger front and side air bags and the seat belt pretensioner are designed to
deploy depending on the condit ion of the total seated weight on the passenger seat.
