MOUNT THE SECURITY MODULE
4
MOUNT THE EMERGENCY OVERRIDE BUTTON
1. LOCATE THE 24-PIN CONNECTOR ON THE SECURITY SYSTEM HARNESS
AND ATTACH IT TO THE MATING 24-PIN CONNECTOR ON THE SECURITY
SYSTEM MODULE.
2. LOCATE THE 5-PIN CONNECTOR ON THE SHOCK SENSOR HARNESS
AND ATTACH IT TO THE MATING 5-PIN CONNECTOR ON THE SECURITY
SYSTEM MODULE.
NOTE: BE SURE TO ENGAGE THE 5-PIN CONNECTOR FROM THE SHOCK
SENSOR HARNESS TO THE SECURITY MODULE, NOT THE 4-PIN
CONNECTOR.
3. POSITION THE SECURITY SYSTEM MODULE ON THE STEEL DASH BRACE
AT THE RIGHT SIDE OF THE STEERING COLUMN.
4. BE SURE TO POSITION THE MODULE WHERE THE MAIN 24-PIN
CONNECTOR IS FACING TOWARD THE DRIVER’S SIDE KICK PANEL
AND THE SMALL 5-PIN CONNECTOR FACES UPWARD. (FIGURE H)
5. ATTACH THE SUPPLIED, LONG WIRE TIES IN A CRISS-CROSS MANNER,
AROUND THE MODULE AND THROUGH THE EYELETS TO ATTACH IT TO
THE STEEL DASH BRACE. (FIGURE H)
6. BE SURE BOTH WIRE TIES ARE TIGHTENED COMPLETELY, THEN TRIM
OFF EXCESS.
7. ROUTE THE SHOCK SENSOR HARNESS UPWARD AND SECURE IT TO
THE VEHICLE WIRE HARNESS WITH A SHORT WIRE TIE.
!
CAUTION: DO NOT OVERTIGHTEN COVERED NUT.

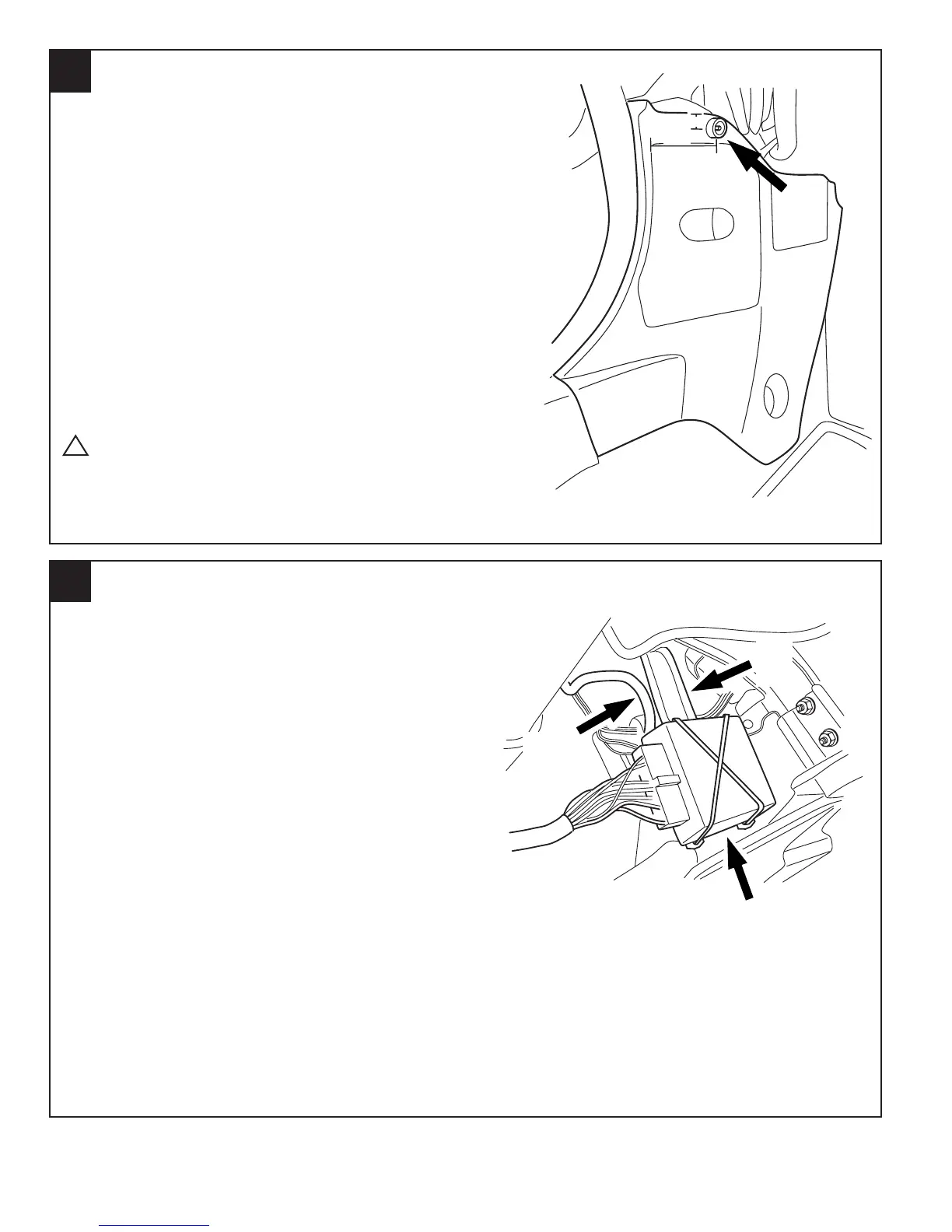

FIGURE G
1. LOCATE THE PREVIOUSLY REMOVED DRIVER’S KICK PANEL.
2. CENTER PUNCH THE DRIVER’S KICK PANEL, EXACTLY 11 mm DOWN FROM
THE TOP AND 54 mm RIGHT OF THE LEFT EDGE OF THE FUSE PANEL DOOR.
(FIGURE G)
3. CAREFULLY DRILL A 9/32” DIAMETER HOLE AT THE CENTER PUNCHED
LOCATION.
4. DISCONNECT THE EMERGENCY OVERRIDE BUTTON FROM THE SECURITY
HARNESS BY UNPLUGGING THE TWO 2-PIN WHITE CONNECTORS.
5. REMOVE THE COVERED NUT AND LOCK WASHER FROM THE EMERGENCY
OVERRIDE BUTTON AND INSERT THE BUTTON THROUGH THE DRILLED HOLE
FROM THE BACK SIDE OF THE DRIVER’S SIDE KICK PANEL.
6. REPLACE THE LOCK WASHER AND COVERED NUT AND CAREFULLY TIGHTEN
BY HAND.
FIGURE H
STEEL
DASH
BRACE
VEHICLE
WIRE
HARNESS
SECURITY
SYSTEM
MODULE
