Mazda MX-5 - Horn Connection

1031733 Rev. A 05/06
6
27-PIN
30-PIN
6-PIN

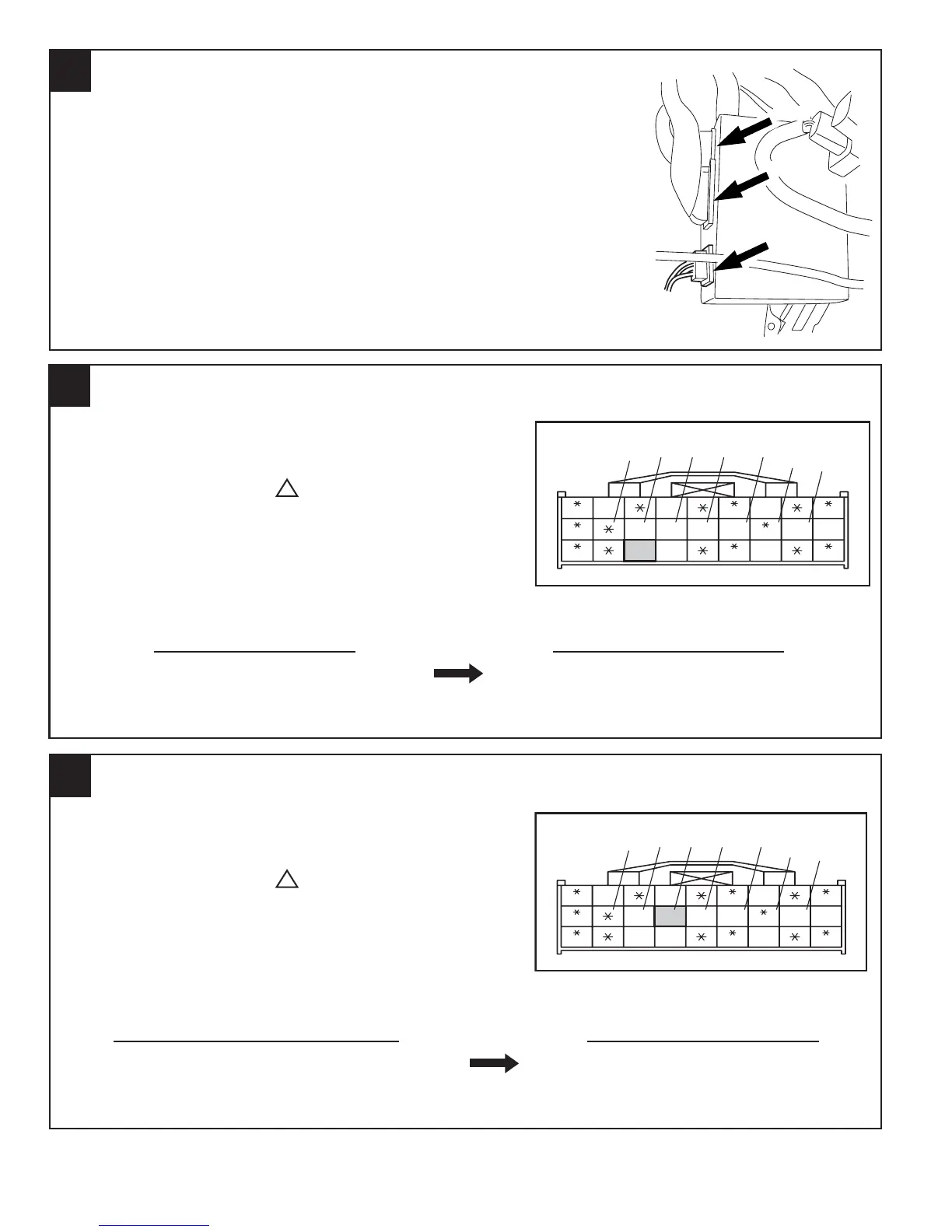

HORN CONNECTION
1. LOCATE THE 27-PIN CONNECTOR AT THE KEYLESS CONTROL MODULE IN
THE DRIVER’S KICK PANEL. (FIGURE M)
2. USING A RAZOR KNIFE, CAREFULLY CUT BACK 1”-2” OF THE ELECTRICAL
TAPE TO EXPOSE THE WIRING. ( CAUTION: BE EXTREMELY CAREFUL
NOT TO DAMAGE ANY OF THE WIRES.)
3. USING (1) SUPPLIED IDC WIRE TAP, CONNECT THE WIRES LISTED BELOW
AND CRIMP THE IDC WIRE TAP IN PLACE USING PLIERS. ENSURE THAT A
COMPLETE AND SECURE CONNECTION IS MADE. REFER TO FIGURE M & N
FOR PROPER CONNECTOR AND PIN LOCATION.
VEHICLE’S HORN WIRE SECURITY HARNESS WIRE
GREEN/ORANGE GREEN/ORANGE
NOTE: REFER TO PAGE 2 FOR IDC WIRE TAP PROCEDURE AND WIRE COLOR CODE INFORMATION.
9
KEYLESS CONTROL MODULE CONNECTIONS
10
1. LOCATE THE 6-PIN WHITE CONNECTOR AT THE KEYLESS CONTROL MODULE
LOCATED IN THE DRIVER’S KICK PANEL. (FIGURE M)
2. DISCONNECT THE 6-PIN FEMALE CONNECTOR FROM THE KEYLESS CONTROL
MODULE.
3. PLUG THE 6-PIN FEMALE SECURITY HARNESS CONNECTOR INTO THE KEYLESS
CONTROL MODULE WHERE THE 6-PIN FEMALE VEHICLE CONNECTOR WAS JUST
DISCONNECTED.
4. PLUG THE 6-PIN MALE SECURITY HARNESS CONNECTOR INTO THE 6-PIN FE-
MALE VEHICLE CONNECTOR.
DOOR TRIGGER CONNECTION
1. LOCATE THE 27-PIN CONNECTOR AT THE KEYLESS CONTROL MODULE IN
THE DRIVER’S KICK PANEL. (FIGURE M)
2. USING A RAZOR KNIFE, CAREFULLY CUT BACK 1”-2” OF THE ELECTRICAL
TAPE TO EXPOSE THE WIRING. ( CAUTION: BE EXTREMELY CAREFUL
NOT TO DAMAGE ANY OF THE WIRES.)
3. USING (1) SUPPLIED IDC WIRE TAP, CONNECT THE WIRES LISTED BELOW
AND CRIMP THE IDC WIRE TAP IN PLACE USING PLIERS. ENSURE THAT A
COMPLETE AND SECURE CONNECTION IS MADE. REFER TO FIGURE M & O
FOR PROPER CONNECTOR AND PIN LOCATION.
VEHICLE’S DOOR TRIGGER WIRE SECURITY HARNESS WIRE
BLACK/BLUE BLACK/BLUE
NOTE: REFER TO PAGE 2 FOR IDC WIRE TAP PROCEDURE AND WIRE COLOR CODE INFORMATION.
11
FIGURE M
L/B B/L O
BR/R
Y/G
#Y/B
#L/O
4C4F4I4L4O4R4U4X4AA
4A
4D
4G
4J4M4P
4S
4V
4Y
4B4Z
4E
4H
4K4N4Q4T
4W
#R/B
#G/B
#L/W #L
#P
#G/W
BR/W
GY/R
VGY
G/O G/L
BR
0914-101D KEYLESS CONTROL MODULE(R)
FIGURE N
L/B B/L O
BR/R
Y/G
#Y/B
#L/O
4C4F4I4L4O4R4U4X4AA
4A
4D
4G
4J4M4P
4S
4V
4Y
4B4Z
4E
4H
4K4N4Q4T
4W
#R/B
#G/B
#L/W #L
#P
#G/W
BR/W
GY/R
VGY
G/O G/L
BR
0914-101D KEYLESS CONTROL MODULE(R)
FIGURE O
VIEW FROM HARNESS SIDE
VIEW FROM HARNESS SIDE
!
!
