Mazda MX-5 - Pictorial Index; Interior Overview (Left-Hand Drive Model)

1031733 Rev. A 05/06
7
PLASTIC
FASTENER
LED
HARNESS
SECURITY
HARNESS

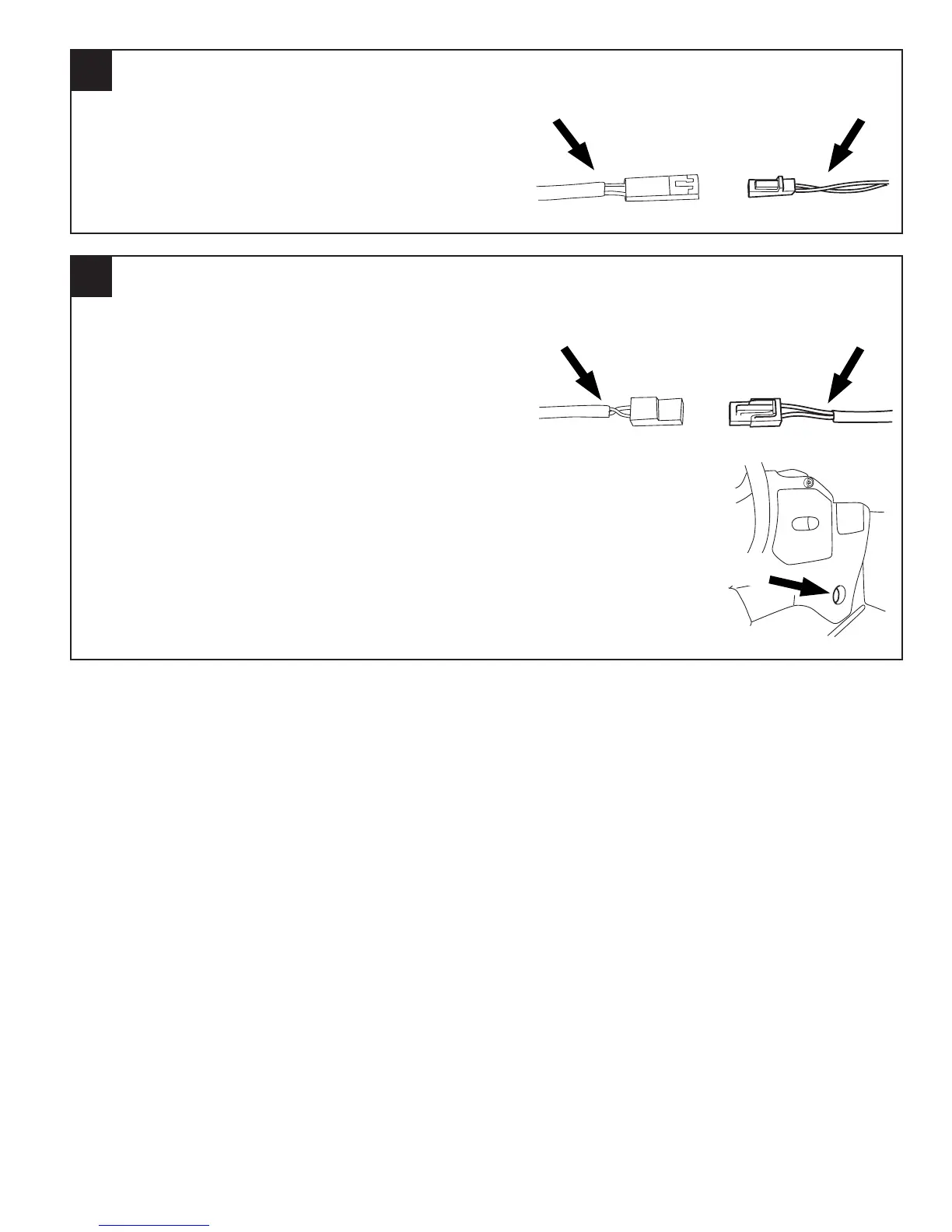

CONNECT THE LED STATUS INDICATOR
1. LOCATE THE 2-PIN BLACK CONNECTOR ON THE SECURITY HARNESS.
2. LOCATE THE 2-PIN BLACK CONNECTOR FROM THE LED HARNESS, WHICH
WAS PREVIOUSLY MOUNTED IN THE FAR LEFT SWITCH KNOCK OUT IN THE
VEHICLE DASH PANEL, AND PLUG IT INTO THE 2-PIN BLACK CONNECTOR
FROM THE SECURITY HARNESS. (FIGURE P)
12
CONNECT THE EMERGENCY OVERRIDE BUTTON AND REPLACE DRIVER’S KICK PANEL
1. LOCATE THE 2-PIN WHITE CONNECTOR ON THE SECURITY HARNESS.
2. LOCATE THE 2-PIN WHITE CONNECTOR FROM THE EMERGENCY OVERRIDE
BUTTON, WHICH WAS PREVIOUSLY MOUNTED IN THE DRIVER’S KICK PANEL,
AND PLUG IT INTO THE 2-PIN WHITE CONNECTOR FROM THE SECURITY
HARNESS. (FIGURE Q)
3. RE-INSTALL THE DRIVER’S KICK PANEL BY ENGAGING THE RETAINING CLIP
ON THE PANEL. RE-INSTALL THE PLASTIC FASTENER AND REPLACE THE
WEATHERSTRIP. (FIGURE R)
13
FIGURE P
FIGURE Q
FIGURE R
BUTTON
HARNESS
SECURITY
HARNESS
