Mazda Protege - Instrument Cluster and Gauges; Vehicle Gauges; Warning Lights Identification

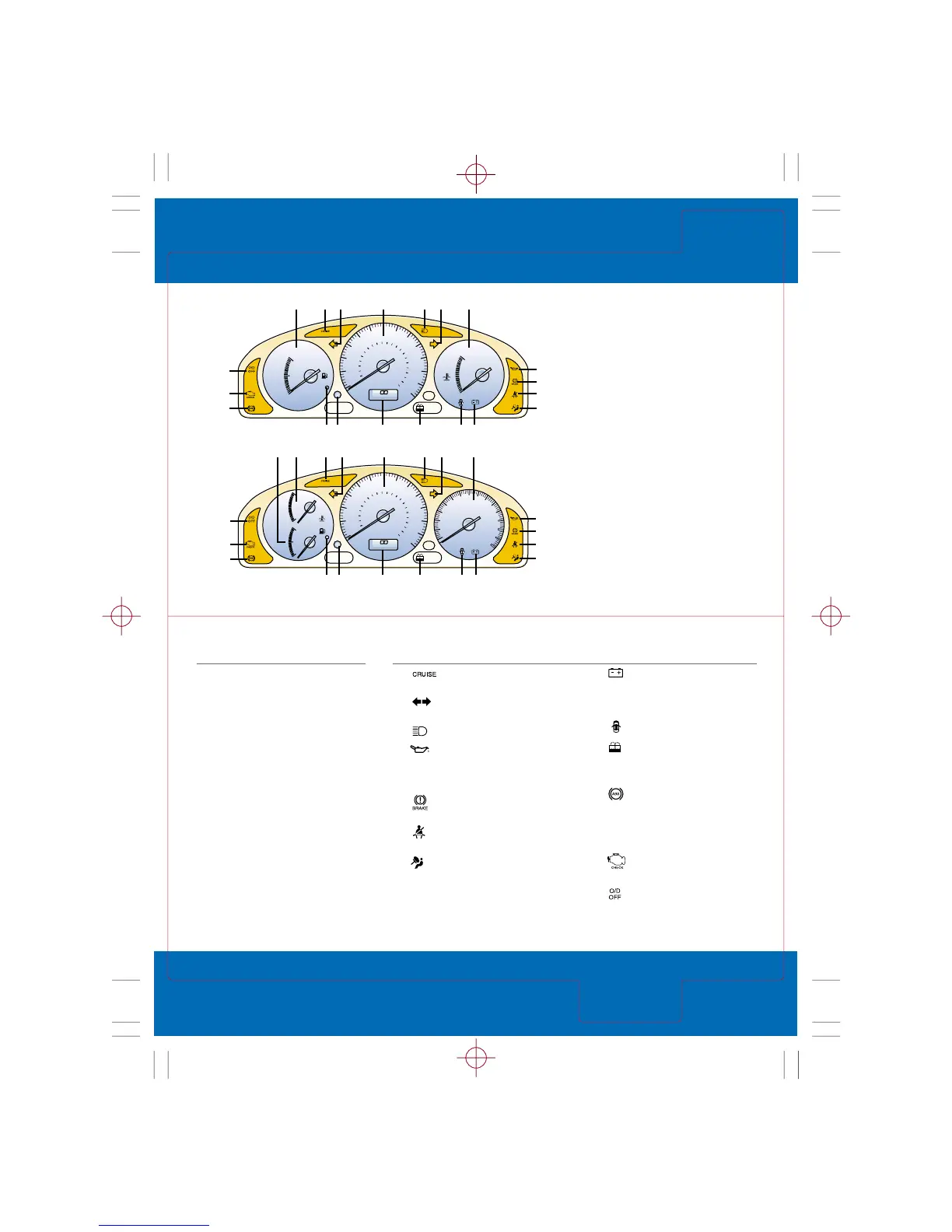

INSTRUMENT CLUSTER
Always check the Owner’s Manual for more operating information and safety features
GAUGES
1. Fuel gauge
13.2-gallon/50-liter tank
(1.6L engine)
14.5-gallon/55-liter tank
(1.8L and 2.0L engines)
2. Engine coolant
temperature gauge
Stop car if above normal
range, turn off engine, let
vehicle cool; check coolant
level when safe
3. Speedometer
4. Tachometer
5. Odometer/Trip odometer
display
6. Odometer/Trip odometer
selector
Press to view odometer; press
again to reset trip odometer
A/B settings
WARNING LIGHTS
7. Cruise control on*
Lights when cruise control is set
8. Turn signals/hazard
warning on
9. High beams on
10. Engine oil-pressure
warning light
Stop car when safe and turn
off engine; check oil level
11. Brake system
Parking brake on/low brake fluid
12. Always fasten seat
belts
13. Air bag/front seat belt
pretensioner system
If light flashes or stays on,
the air bags/front seat belt
pretensioners may not operate
in an accident; dealer inspection
required
14. Charging system
warning light
Charging system malfunction;
dealer inspection required
15. Door-ajar
16. Low washer fluid
level*
17. Low fuel
18. Anti-lock Brake
System (ABS)*
ABS malfunction, normal
brakes only; dealer
inspection required
19. Check engine
Dealer inspection required
20. Overdrive off indicator*,
see Transaxle
Instrument
Cluster
Instrument
Cluster
Quick Tips Mazda Protegé/Protegé5 page 4
page 5
Revised September 23, 2002
H
C
F
E
20
0
40
mph
km/h
x1000r/min
0
20
40
60
80
100
TRIP
AB
88888.8
ODO
120
140
40160
180
200
220
60
80
100
0
1
2
3
4
5
6
7
8
120
140
H
C
F
E
20
0
40
mph
km/h
0
20
40
60
80
100
TRIP
AB
88888.8
ODO
120
140
40160
180
200
220
60
80
100
120
140
19
20
18
10
11
12
13
1415165617
71 3 28 89
7 38 8 421 9
18
19
20
10
11
12
13
1415165617
*Denotes optional equipment
Instrument Cluster
Instrument Cluster
with Tachometer*
