INSTRUMENT CLUSTER
Always check the Owner’s Manual for more operating information and safety features
WARNING LIGHTS
• Anti-lock Brake
System (ABS)
ABS malfunction, normal brakes
only, dealer inspection required
• Always fasten
seat belts
• Air bag readiness
Front or side air bag malfunction,
dealer inspection required
• High beams on
• Cruise control on*,
see Getting Started
• Door ajar
• Brake system
Parking brake on/low brake fluid
• Overdrive off
indicator*, see Transaxle
• Check engine indicator
Dealer inspection required if light
remains on, see Owner’s Manual
• Engine oil pressure
Stop car when safe and turn
off engine; check oil level
• Charging system
Charging system malfunction;
dealer inspection required
• Turn signals/hazard
warning on
• Low fuel
• Check fuel cap
Fuel cap not securely tightened


• Anti-theft on
• Throttle control/
powertrain
Illuminates when a powertrain
or throttle body fault has been
detected; dealer inspection
required if indicator remains on
• Tire Pressure Monitoring
System (TPMS),
see Getting Started
• Traction Control
System (TCS)/Dynamic
Stability Control (DSC)/
Roll Stability Control (RSC)
Light flashes when system is
activated while driving; dealer
inspection required if light
remains on
Instrument
Cluster
Instrument
Cluster
*Denotes optional equipment

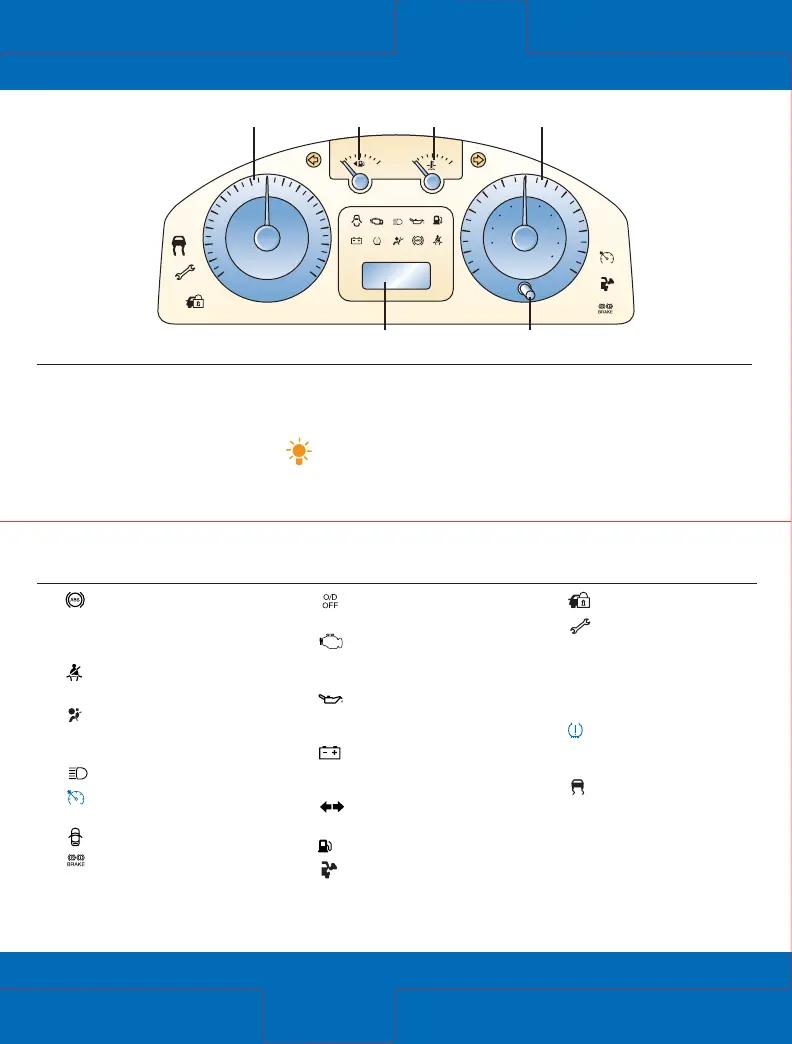

GAUGES
1. Tachometer
2. Speedometer
3. Fuel gauge
16.5-gallon/62-liter tank
(2.3L and 3.0L).
4. Odometer/trip odometer
selector
Press to toggle between
odometer and trip odometer.
Tip: Press and hold for more
than 1 second to r
eset trip
odometer.
5. Odometer
6
. Coolant temperature gauge
If above normal range, stop
vehicle and turn off engine, check
coolant level when safe.
4
x1000r/min
3
2
1
0
5
EF
6
7
453.2
2081.4
TRIP
A
8
0
mph
200
180
160
140
120
100
80
60
40
20
0
12 0
10 0
80
60
40
20
CH
31 26
45
O/D
OFF
