Mazzoni W5000 - Page 11

5

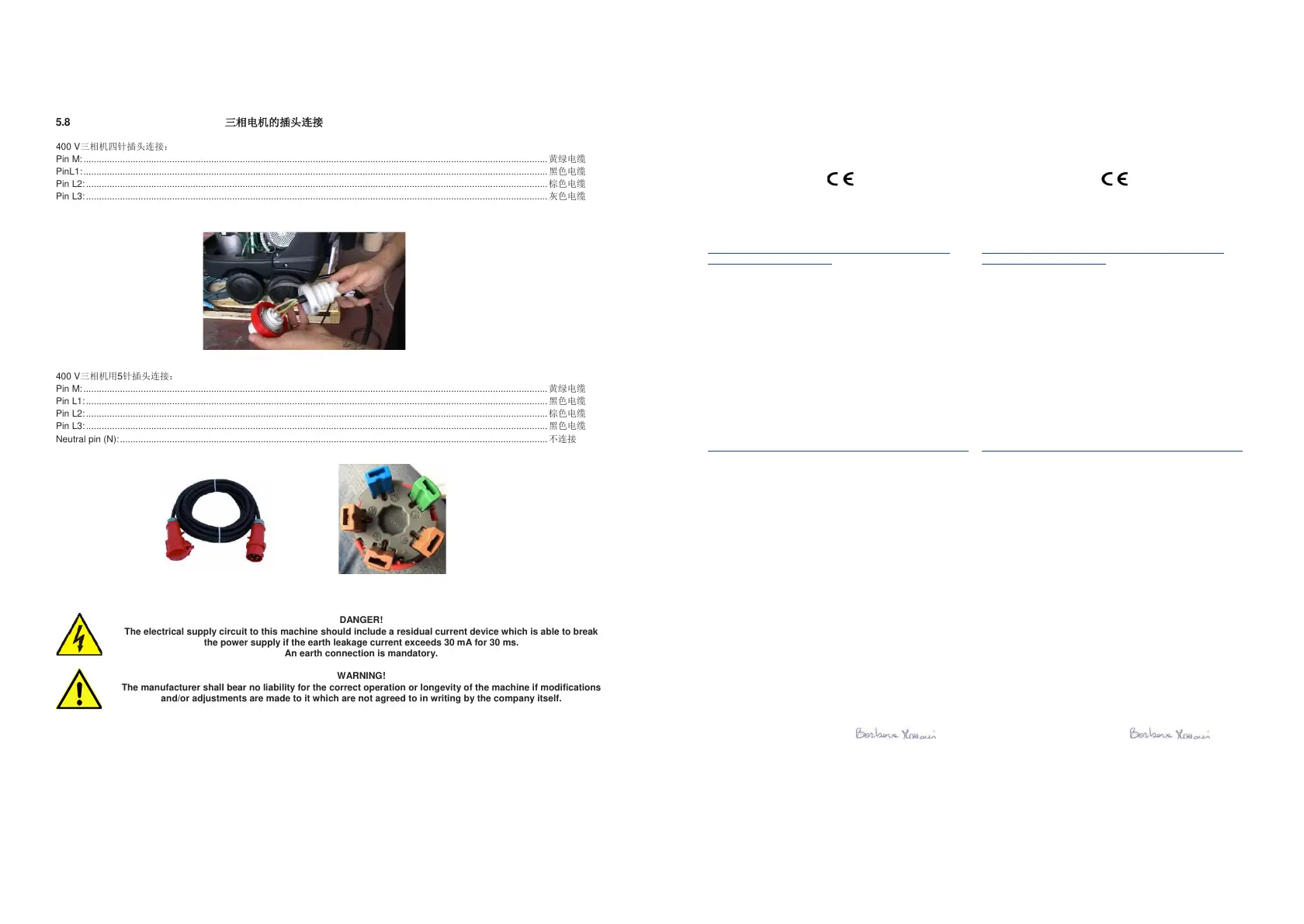

5.8 三相电机的插头连接
400 V三相机四针插头连接：
Pin M: .................................................................................................................................................................................. 黄绿电缆
PinL1: .................................................................................................................................................................................. 黑色电缆
Pin L2: ................................................................................................................................................................................. 棕色电缆
Pin L3: ................................................................................................................................................................................. 灰色电缆
400 V三相机用5针插头连接：
Pin M: .................................................................................................................................................................................. 黄绿电缆
Pin L1: ................................................................................................................................................................................. 黑色电缆
Pin L2: ................................................................................................................................................................................. 棕色电缆
Pin L3: ................................................................................................................................................................................. 黑色电缆
Neutral pin (N): .................................................................................................................................................................... 不连接
DANGER!
The electrical supply circuit to this machine should include a residual current device which is able to break
the power supply if the earth leakage current exceeds 30 mA for 30 ms.
An earth connection is mandatory.
WARNING!
The manufacturer shall bear no liability for the correct operation or longevity of the machine if modifications
and/or adjustments are made to it which are not agreed to in writing by the company itself.
1.
1.13 W5000 CE DECLARATION OFCONFORMITY
Declaration of Conformity
Directive 2006/42 EC Annex II A
MAZZONI SRL
Via PratiVecchi5
42025 CAVRIAGO (REGGIO EMILIA), ITALY
DECLARES UNDER ITS SOLE RESPONSIBILITY THAT
THEFOLLOWING PRODUCT:
1.14 W5025 CE DECLARATION OFCONFORMITY
Declaration of Conformity
Directive 2006/42 EC Annex II A
MAZZONI SRL
Via PratiVecchi5
42025 CAVRIAGO (REGGIO EMILIA), ITALY
DECLARES UNDER ITS SOLE RESPONSIBILITY THAT
THEFOLLOWING PRODUCT:
- Machinetype:PressureWasher-Class.no.27annexIpart-Machinetype: PressureWasher-Class.no.27annexIpart
CofItalianLegislativeDecree262/02implementingDirectiveCofItalianLegislativeDecree262/02implementingDirective
2000/14/EC
- Model: W5000
- Net installed power (kW):7.5
- Flow rate (l/min):21
- Voltage: 400V
- Frequency: 50Hz
- Measured sound power level LWA (dB):97
- Guaranteed sound power level LWA (dB):98
complies with the provisions of the following EC directives:
2000/14/EC
- Model: W5025
- Net installed power (kW):11
- Flow rate (l/min):21
- Voltage: 230V
- Frequency: 50Hz
- Measured sound power level LWA (dB):83
- Guaranteed sound power level LWA (dB):85
complies with the provisions of the following EC directives:
2006/42/EC.....................................................MachineryDirective2006/42/EC. .................................................... MachineryDirective
2014/30/EU.......................ElectromagneticCompatibilityDirective2014/30/EU. ....................... ElectromagneticCompatibilityDirective
2000/14/EC...............................................OutdoorNoiseDirective 2000/14/EC. ............................................. Outdoor NoiseDirective
2014/35/EU...................................................LowVoltageDirective2014/35/EU. ................................................. LowVoltageDirective
ERP2009/125/EC......................Energy-related ProductsDirectiveERP2009/125/EC. .................... Energy-related ProductsDirective
Reference standards:
- UNI EN ISO3744:2010 ........... Determination of sound powerlevels
- UNI EN ISO12100:2010 ......... Safetyofmachinery–Riskassessment
Reference standards:
- UNI EN ISO3744:2010 ........... Determination of sound powerlevels
- UNI EN ISO12100:2010 ......... Safetyofmachinery–Riskassessment
- UNI EN 60335-1:2012-01 ...... Household And Similar Electrical - UNI EN 60335-1:2012-01 ...... Household And SimilarElectrical
Appliances-Safety Appliances -Safety
- CEI EN 60335 – 2-79:2013 .... Particular requirements for high- - CEI EN 60335 – 2-79:2013 .... Particular requirements forhigh-
pressurecleanersandsteamcleaners.
Person authorised to compile the technical file
Moreno Mazzoni
c/o Mazzoni S.R.L.
Official Representative MAZZONI S.R.L.
Barbara Mazzoni
Date: 16 June 2016
pressure cleaners and steam cleaners.
Person authorised to compile the technical file
Moreno Mazzoni
c/o Mazzoni S.R.L.
Official Representative MAZZONI S.R.L.
Barbara Mazzoni
Date: 16 June 2016
