Break Joints
Mounting Surface
U-Bracket
Mounting Nuts
Cut Out Diameter: 3” / 76.2mm

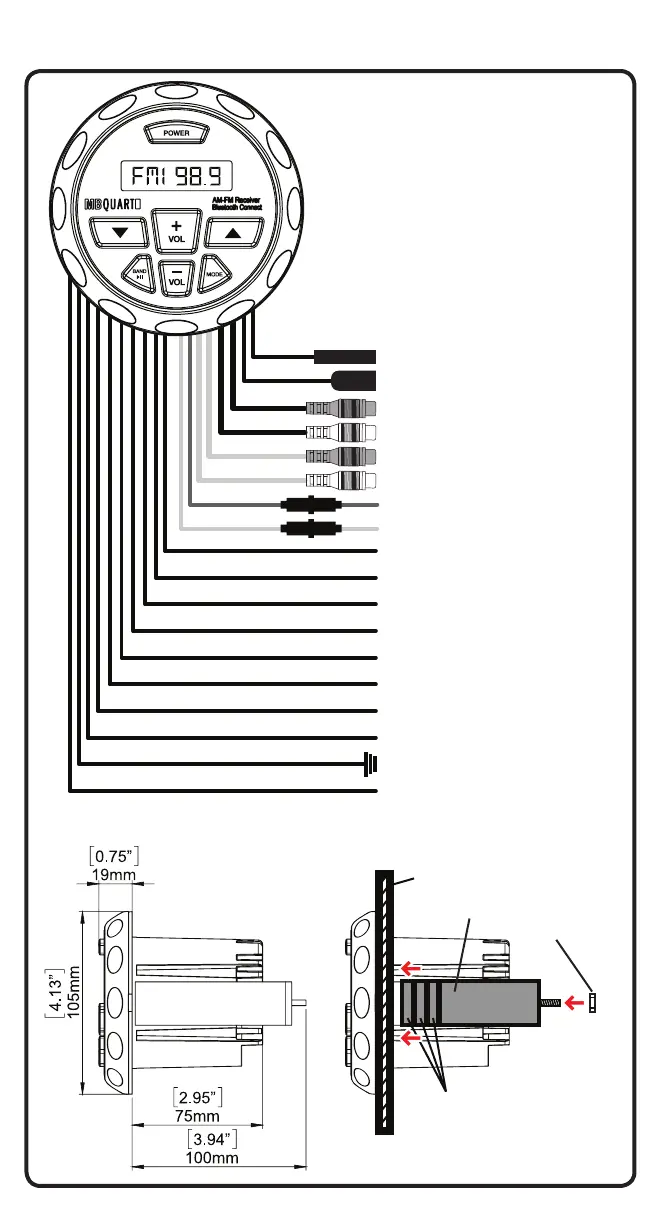

Wiring & Mounting
Radio Antenna
USB Connector
Red - Rear RCA Output (R)
White - Rear RCA Output (L)
Red - RCA Input (R)
White - RCA Input (L)
Accesory
+12 Volts
White/Black - Front Left (-)
Blue - Remote Output
Black - Ground (-)
Purple/Black - Rear Right (-)
Purple - Rear Right (+)
Green/Black - Rear Left (-)
Green - Rear Left (+)
Gray/Black - Front Right (-)
Gray - Front Right (+)
White - Front Left (+)
