MB QUART GMR-LED User Manual

3

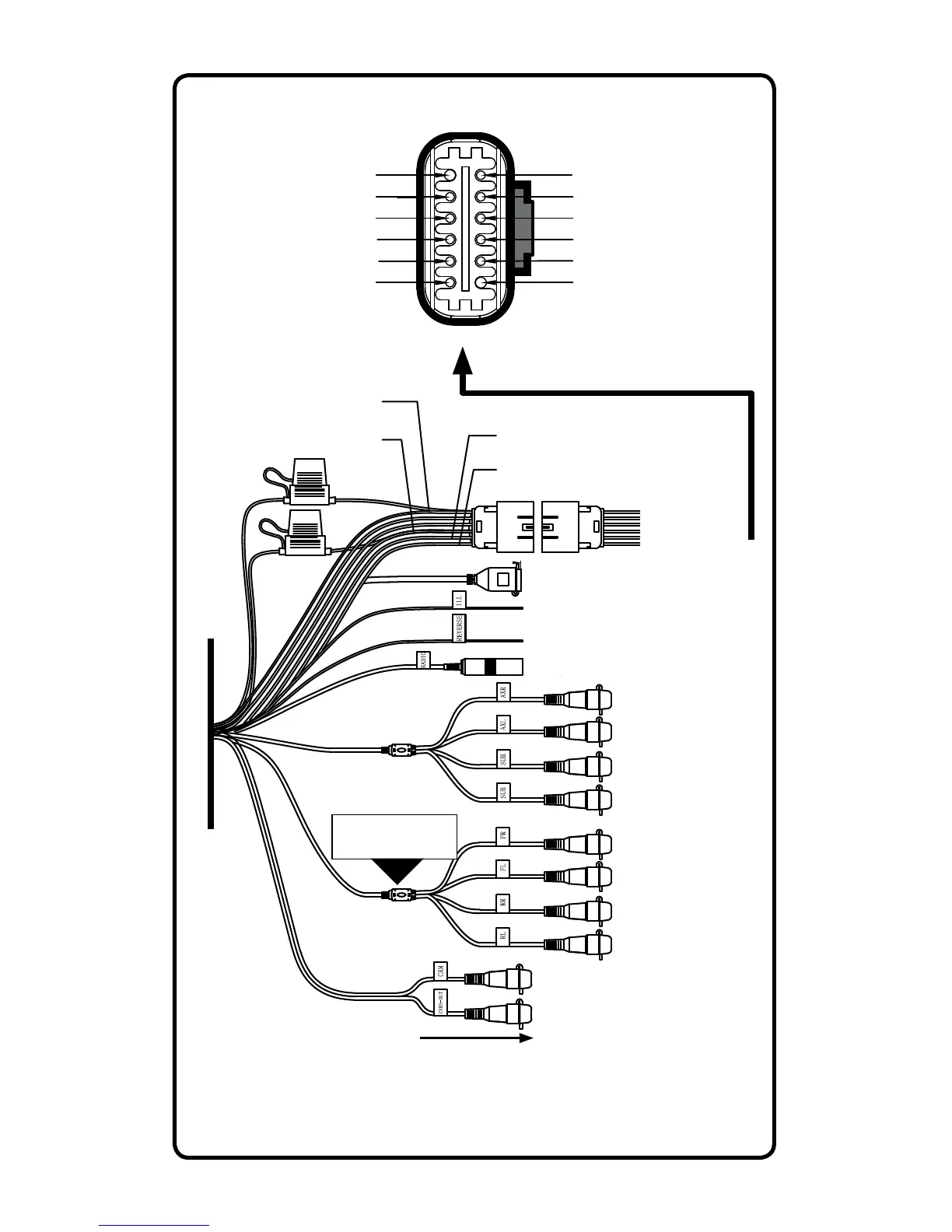

Wiring and Connections
(M) Yellow
(L) White/Black
Water Tight Plug Face Shown (Wires to Connect Exit Rear)
(K) White
(J) Red
(H) Purple/Black
(G) Purple
(F) Gray
(E) Gray/Black
(D) Green/Black
(C) Green
(B) Blue
(A) Black
Yellow (+12v Constant)
Red (+12v Accessory)
Water
Tight Plug
USB Connector
Orange (Illumination)
Purple/White (Reverse)
AM/FM Antenna
AUX Input
SUB Outputs
FRONT Preamp
Outputs*
REAR
Preamp Outputs*
Camera Input
CVBS Video Output
(Mirrors Unit’s Screen)
Black (Chassis Ground)
Blue(Amp Turn-On)
*Works with
ZONE Control
Note: See wiring chart on next page for connection tips, wire
colors and functions. Also note preamp level output connections
if using external ampliers and ZONE control capability.
See page 19 for Video Output details
