Auxiliary (AUX) Input and Camera
The multimedia controller has right and left preamp level RCA
connections for the Auxiliary Input. If a portable device with a
headphone jack is used, a 3.5mm (male) to RCA (male) adapter cable
is required and not included.
Select the AUX icon on the Source Menu wheel.
● Press play on the auxiliary device and turn up its volume. Volume is
controlled from the Selector/Volume Knob on the unit.
● Press the center ►
▌▐
to mute. This only mutes the input. It does not
pause the song. Press ►
▌▐
again to unmute or simply rotate the volume
control knob.
Camera Operation
● Connect the yellow RCA "Camera Input" to the installed camera's
composite video output.
● Connect the camera per the camera manufacturers recommendations
● Connect a +12 volt trigger, typically a reverse gear signal, to the unit's
purple/white wire. This automatically triggers the camera screen when
active. It should supply +12 volts to trigger.
● User can also manually select the "Camera" source from the menu.
1/
2/INT 3/RPT 4/RDM
Source

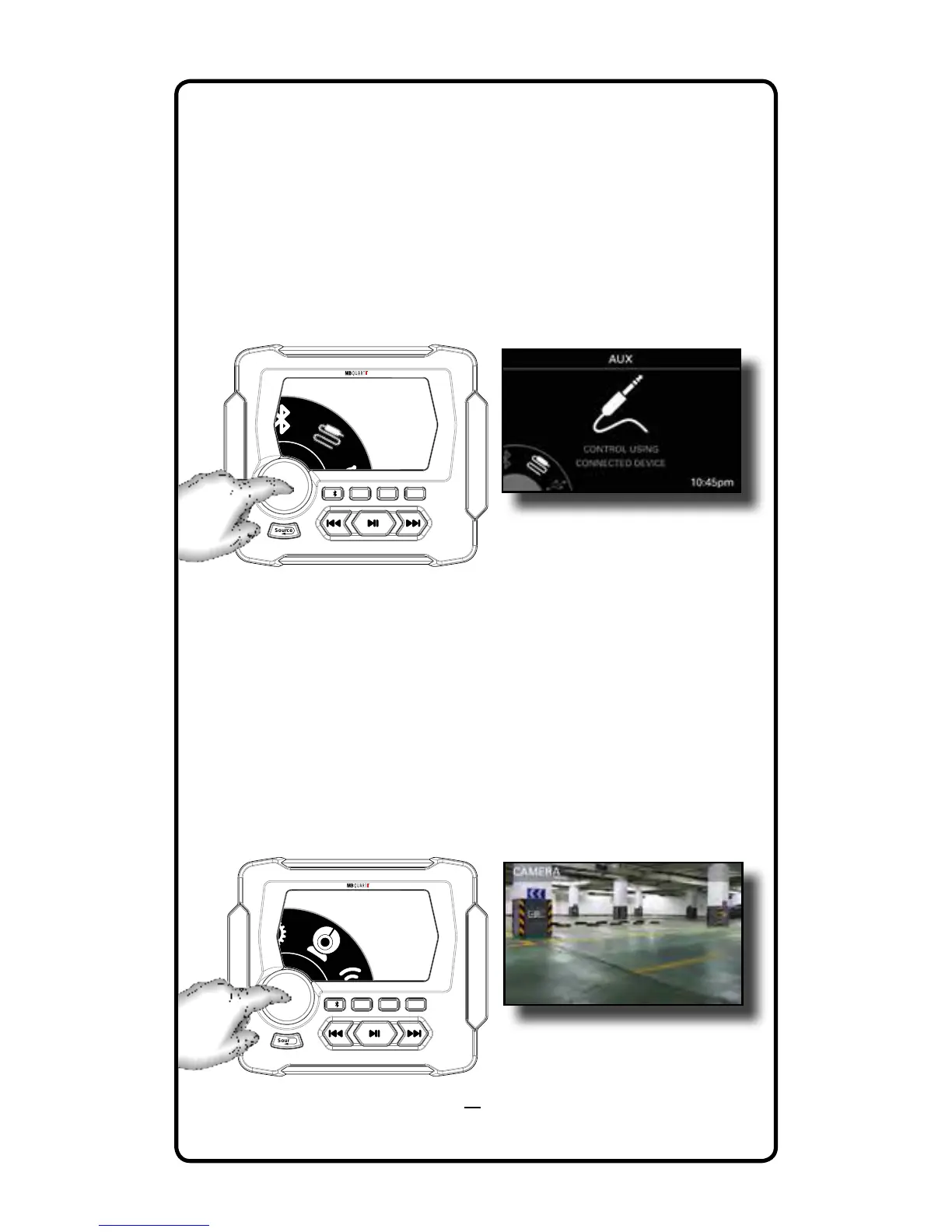

After selecting AUX in the source
menu, begin paying the music on the
auxiliary device. Turn its volume up.
Main volume can then be controlled via
the unit along with muting audio.
Select the AUX
icon in the menu.
1/
2/INT 3/RPT 4/RDM
Source
The unit displays a clear picture of
whatever view the camera views.
This could be used for a front thermal
imaging UTV camera or boat docking
camera depending on the application.
Manually select the Camera icon or
trigger automatically w/reverse input.
To Next Page
