MB 900 - Machine Setup Procedure; Component Assembly and Preparation

- 6 -
MACHINE SETUP
1. Remove machine from packaging.
2. Place machine on table or floor.
3. Remove roller pin.
4. Rotate upper frame out of the way.
5. Remove clevis pin.
6. Remove bender shoe & follow bar from packaging.
7. Insert shoe into clevis.
Note: Shoe can be installed to rotate in either direction
to complete the bends.
8. Insert clevis pin.
9. Remove saddle pin from adjustable saddle.
10. Place saddle on to shoe as shown.
11. Insert saddle pin into saddle and shoe.
CAUTION: Be sure pin is completely through bottom saddle arm.
12. Place follow bar on to machine as shown.
13. Slide roller as close as possible to follow bar.
Note: Lubricate (oil) roller Top / Bottom and Inside Diameter
14. Close the upper frame.
15. Note: Lubricate (oil) Pin Outside Diameter Insert roller pin through the upper
frame, roller, & lower frame.
CAUTION: Be sure pin is completely through lower frame arm.
16. Machine is now ready for use.

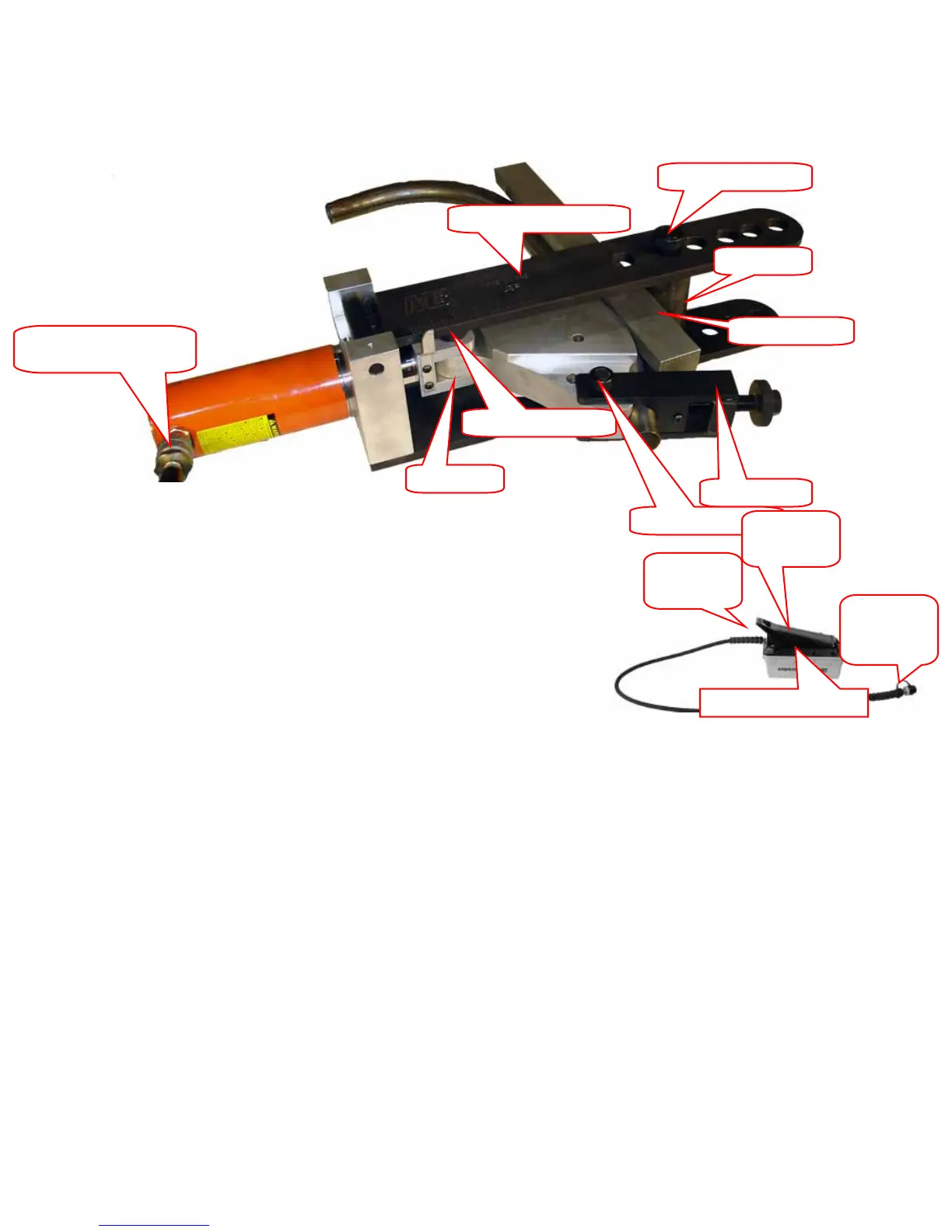

#12 Follow Bar
#13 Roller
#10 Saddle
#5 & #8 Clevis Pin
#7 Clevis
#9 & #11 Saddle Pin
#16 Female Hydraulic
Coupler
#3 & #15 Roller Pin
#4 & #14 Upper Frame
#16
Hydraulic
Coupler
Release
Pressure
Pump
Pressure
AIR / HYDRAULIC PUMP
