14

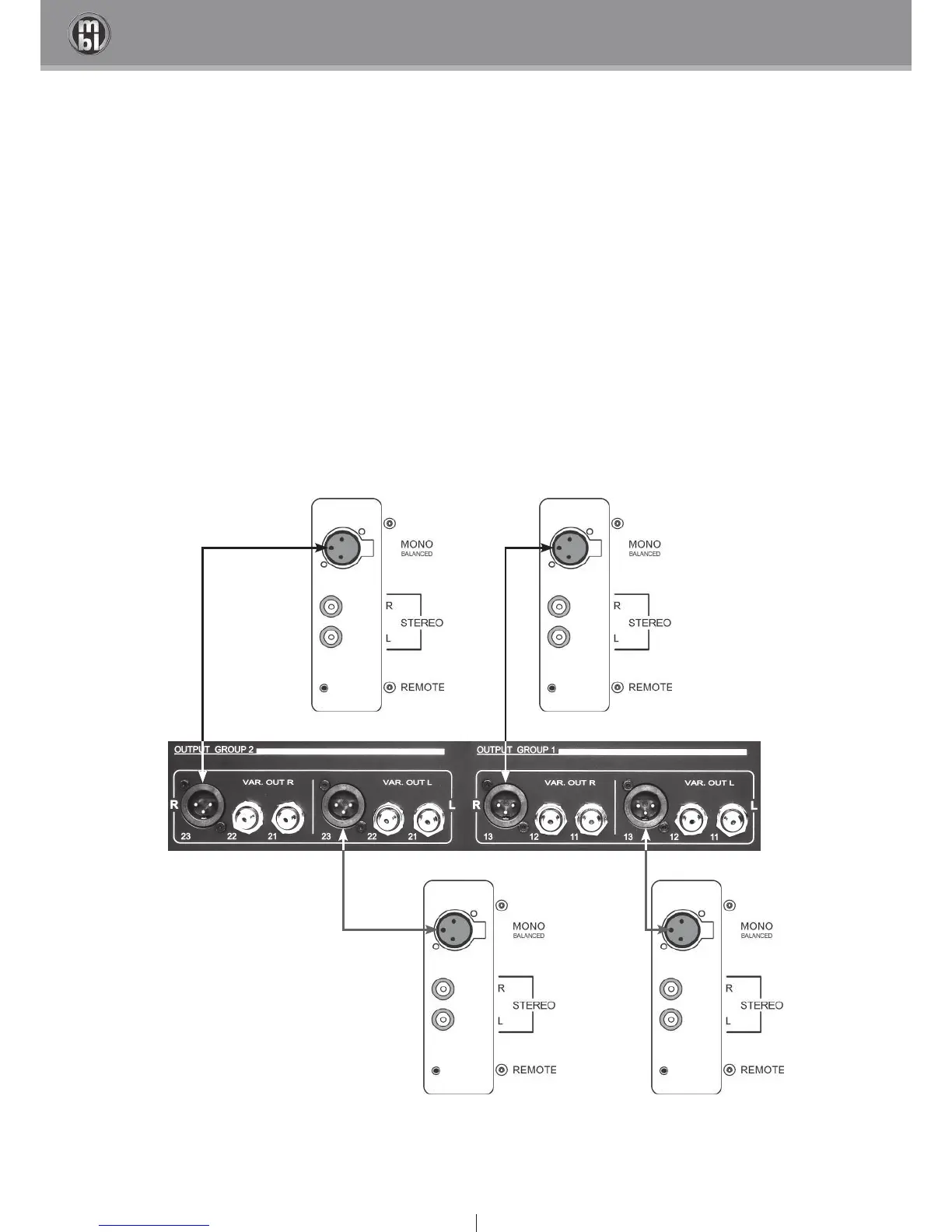

2.5 b) Connecting power amplifiers to preamplifier in mono mode, bi-amping (4 power amps)
This mode requires that the respective preamplifier has 2 outputs of completely the same quality (mbl 6010 D or mbl 5011).
Balanced-cables are used for the connection of preamplifier and power amplifier.
Connect the preamplifier’s output-channel 1 (right) with the input “Mono” of the first power amplifier. Connect the preamplifier’s
output-channel 2 (right) with the input “Mono” of the second power amplifier (right speaker).
Connect the preamplifier’s output-channel 1 (left) with the input “Mono” of the third power amplifier. Connect the preamplifier’ s
output-channel 2 (left) with the input “Mono” of the fourth power amplifier (left speaker).
preamplifier
power amplifier left 2 power amplifier left 1
power amplifier right 1power amplifier right 2
Balanced cable left 2
Balanced cable left 1
Balanced cable right 2
Balanced cable right 1
