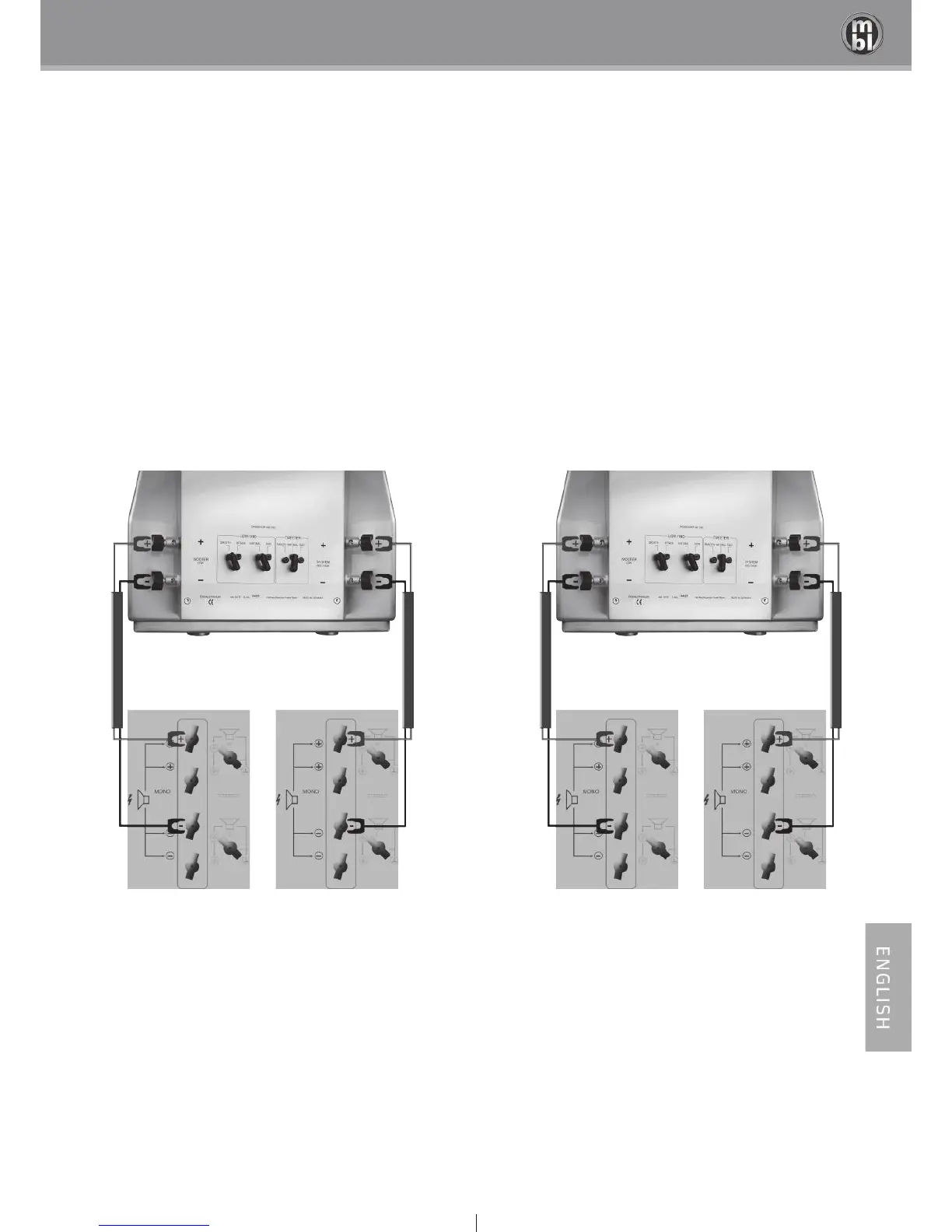

2.5 a) Connecting power amplifiers to speakers in mono mode, bi-amping (4 power amps)
Note the imprint MONO on the back of the power amplifier.
If you want to connect four power amplifiers to your loudspeakers, connect SYSTEM and WOOFER seperatly to each power
amplifier. Use the MONO connectors of the power amplifier. Connect the minus terminal to the respective minus connector and
the plus terminal to the respective plus connector.
left speaker right speaker
left power amplifier
WOOFER
left power amplifier
SYSTEM
right power amplifier
WOOFER
right power amplifier
SYSTEM
WOOFER
terminals
SYSTEM
terminals
WOOFER
terminals
SYSTEM
terminals
Example with mbl 101 E MKII Radialstrahler
