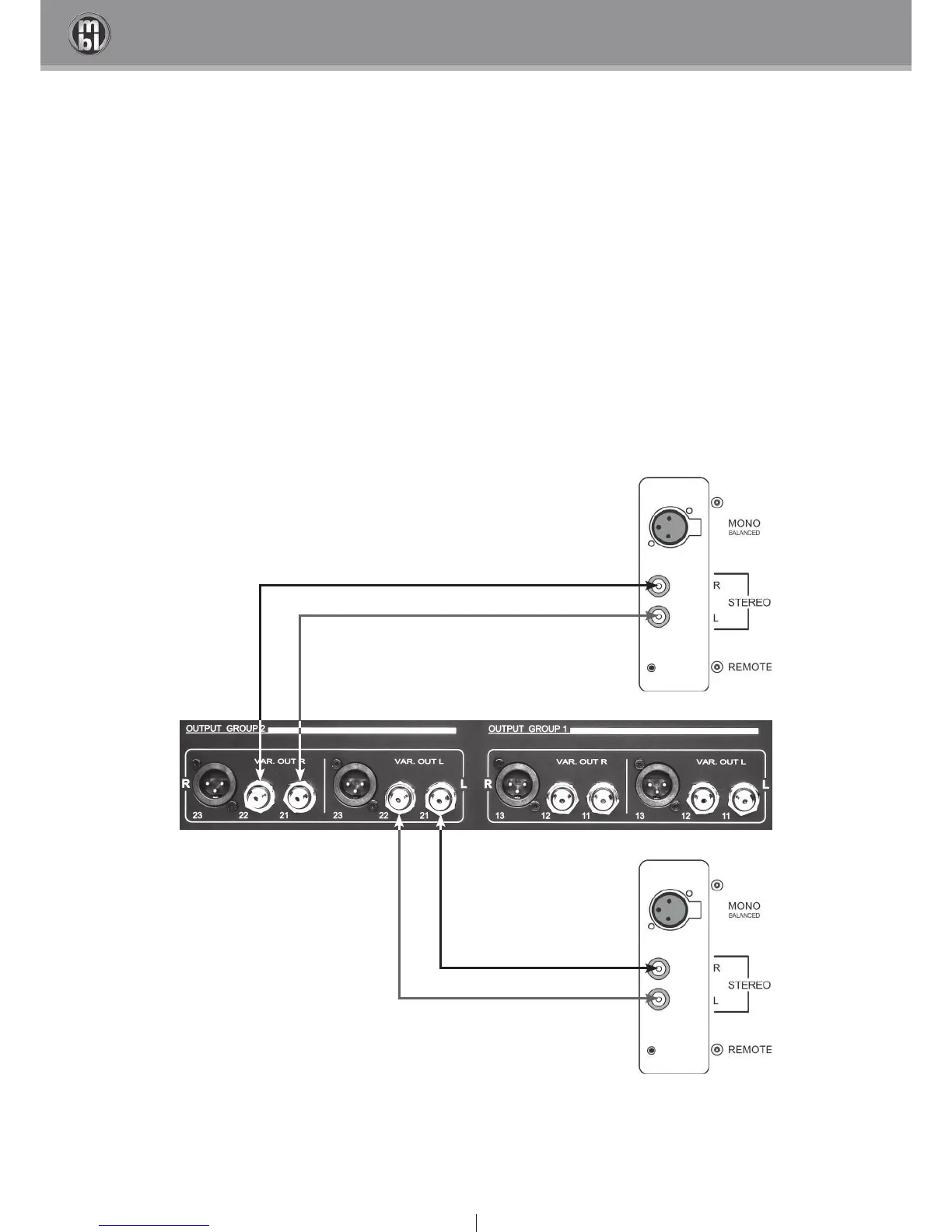

2.4 b) Connecting power amplifiers to preamplifier in stereo mode, bi-amping (2 power amps)
This mode requires that the respective preamplifier has 2 outputs of completely the same quality (e.g. mbl 6010 D or mbl 5011).
Use RCA cables for the connection of preamplifier and power amplifier.
Right amplifier: Connect one right stereo channel “R” of the preamplifier to the stereo input “L” of the power amplifier and the
second stereo channel “R” of the same output group of the preamplifier to the stereo input “R” of the power amplifier (right
speaker).
Left amplifier: Connect one left stereo channel “L” of the preamplifier to the stereo input “L” of the power amplifier and the sec-
ond left stereo channel “L”of the same output group of the preamplifier to the stereo input “R” of the power amplifier.
preamplifier
power amplifier left
power amplifier right
RCA cable
RCA cable
RCA cable
RCA cable
