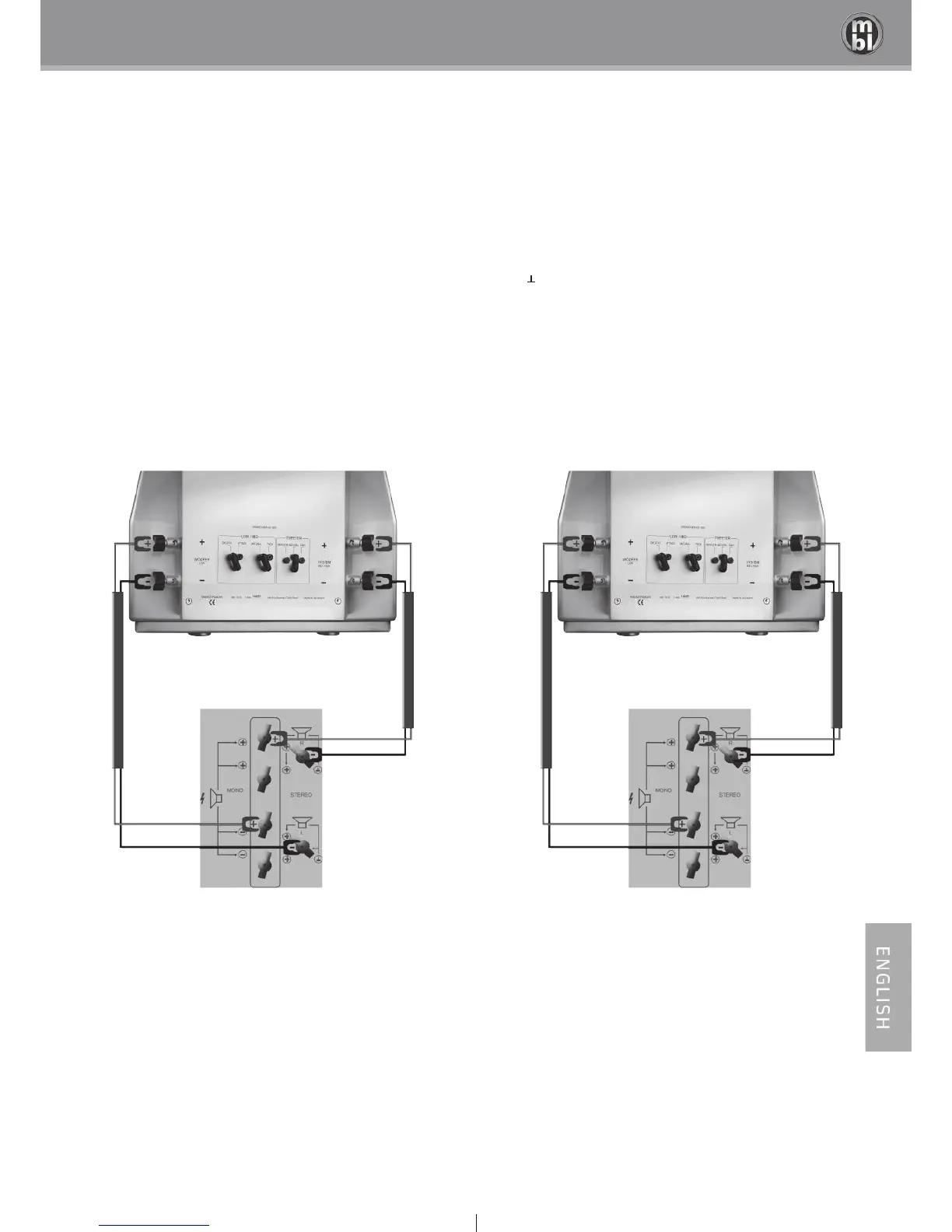

2.4 a) Connecting power amplifiers to speakers in stereo mode, bi-amping (2 power amplifiers)
Note the imprint STEREO on the back of the power amplifier.
If you want to connect two power amplifiers to your loudspeakers in stereo mode, use the STEREO connectors of the power
amplifiers. Connect each loudspeaker to one power amplifier. Connect the plus terminals (WOOFER and SYSTEM) to the respec-
tive plus connectors and the minus terminals to the ground connectors ( ).
left speaker right speaker
stereo power amplifier
left
stereo power amplifier
right
WOOFER
terminals
SYSTEM
terminals
WOOFER
terminals
SYSTEM
terminals
Example with mbl 101 E MKII Radialstrahler
