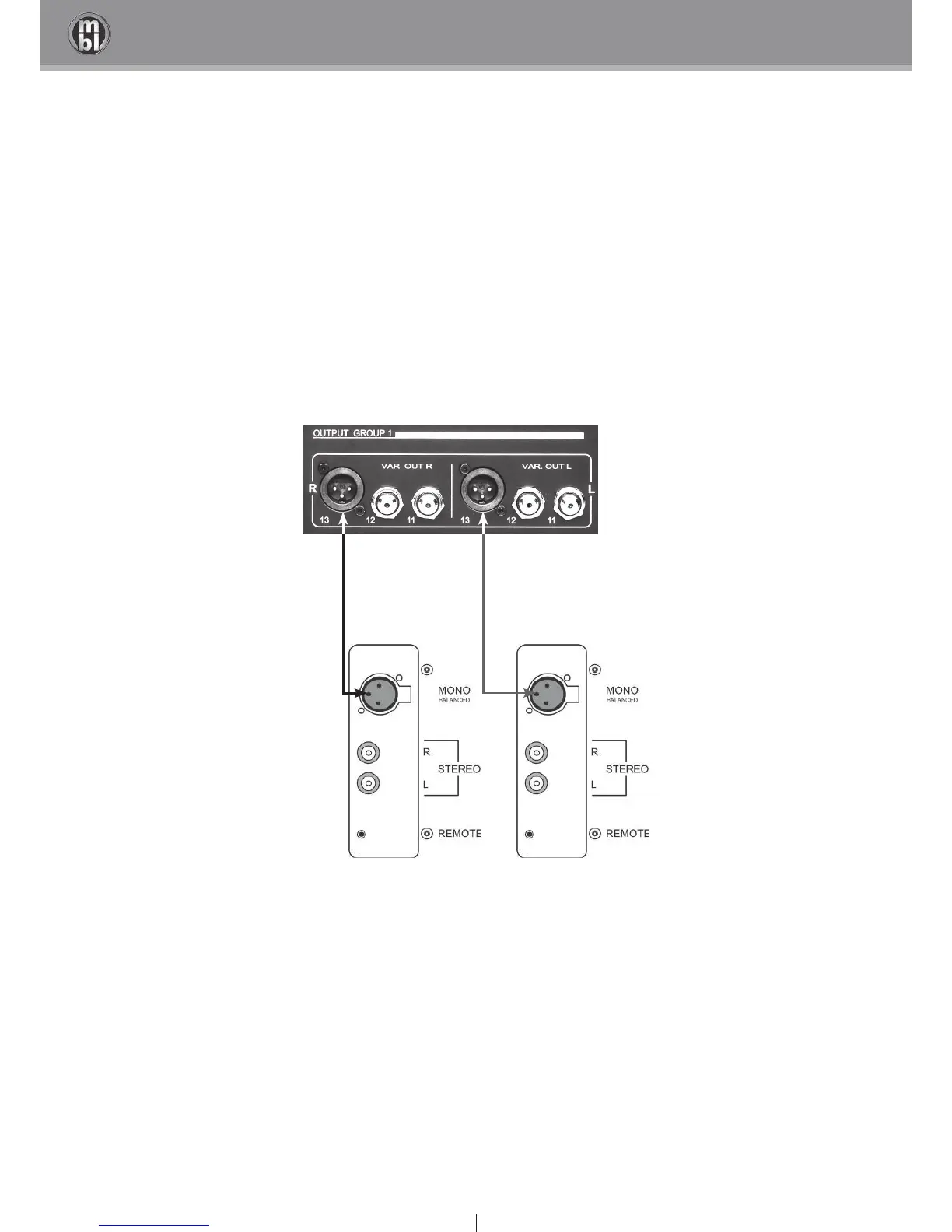

2.3 c) Connecting power amplifiers to preamplifier in mono mode (Balanced Mono)
Connect the preamplifier’s output to the power amplifier’s input with balanced cable. Connect the right channel “R” of the pre-
amplifier to the input of the power amplifier for the right speaker. Connect the left channel “L” of the preamplifier to the input
of the power amplifier for the left speaker.
power amplifier 1
(right speaker)
power amplifier 2
(left speaker)
preamplifier
Balanced cable left
Balanced cable right
