mbl 9011 | mbl 9008 A | mbl 9007
9

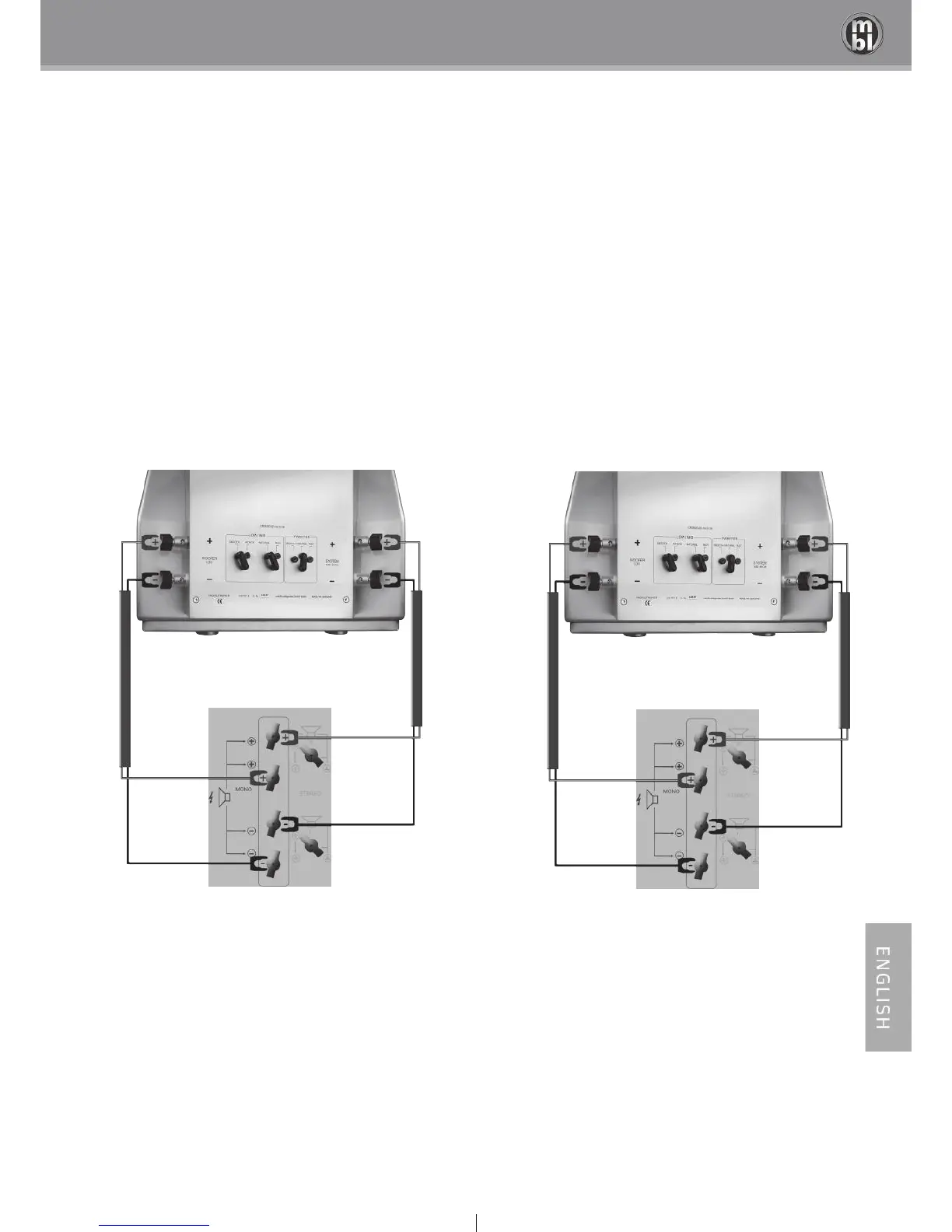

2.3 b) Connecting power amplifiers to speakers in mono mode, bi-wiring
Note the imprint MONO on the back of the power amplifier.
If you want to connect two power amplifiers to your loudspeakers in bi-wiring mode, use the MONO connectors of the power
amplifiers. Connect each loudspeaker to one power amplifier. Connect the plus terminals (WOOFER and SYSTEM) to the respec-
tive plus connectors and the minus terminals to the minus connectors.
left speaker right speaker
mono power amplifier
left
mono power amplifier
right
WOOFER
terminals
SYSTEM
terminals
WOOFER
terminals
SYSTEM
terminals
Example with mbl 101 E MKII Radialstrahler
