2.3 a) Connecting power amplifiers to speakers in mono mode, single wiring
Note the imprint MONO on the back of the power amplifier.

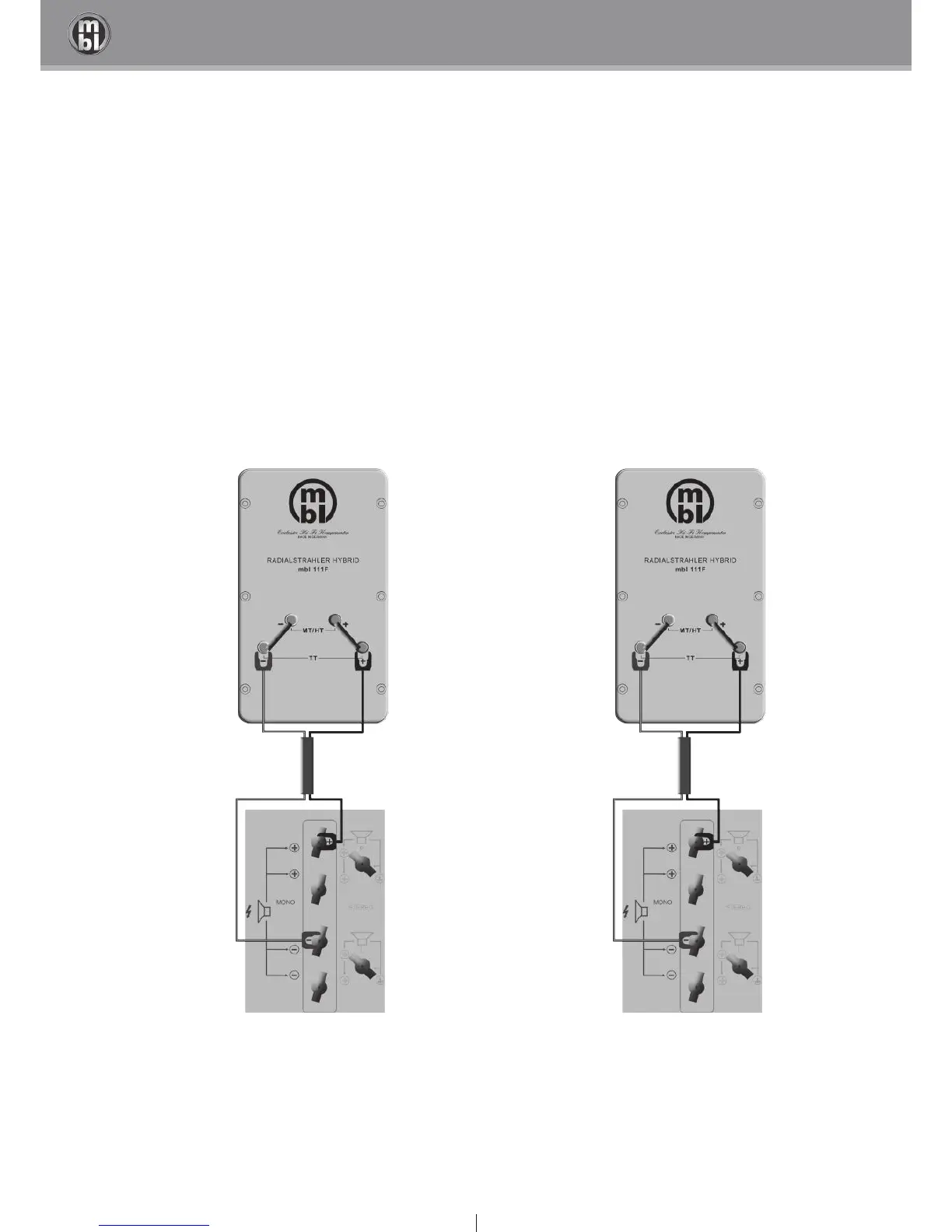

If you want to connect two power amplifiers to your loudspeakers in single wiring mode, use the MONO connectors of the power
amplifiers. Connect the plus terminal of each speaker to the respective plus connector of the power amplifier and the minus
terminal to the minus connector.
left speaker right speaker
mono power amp left mono power amp right
Example with mbl 111 F Radialstrahler Hybrid
