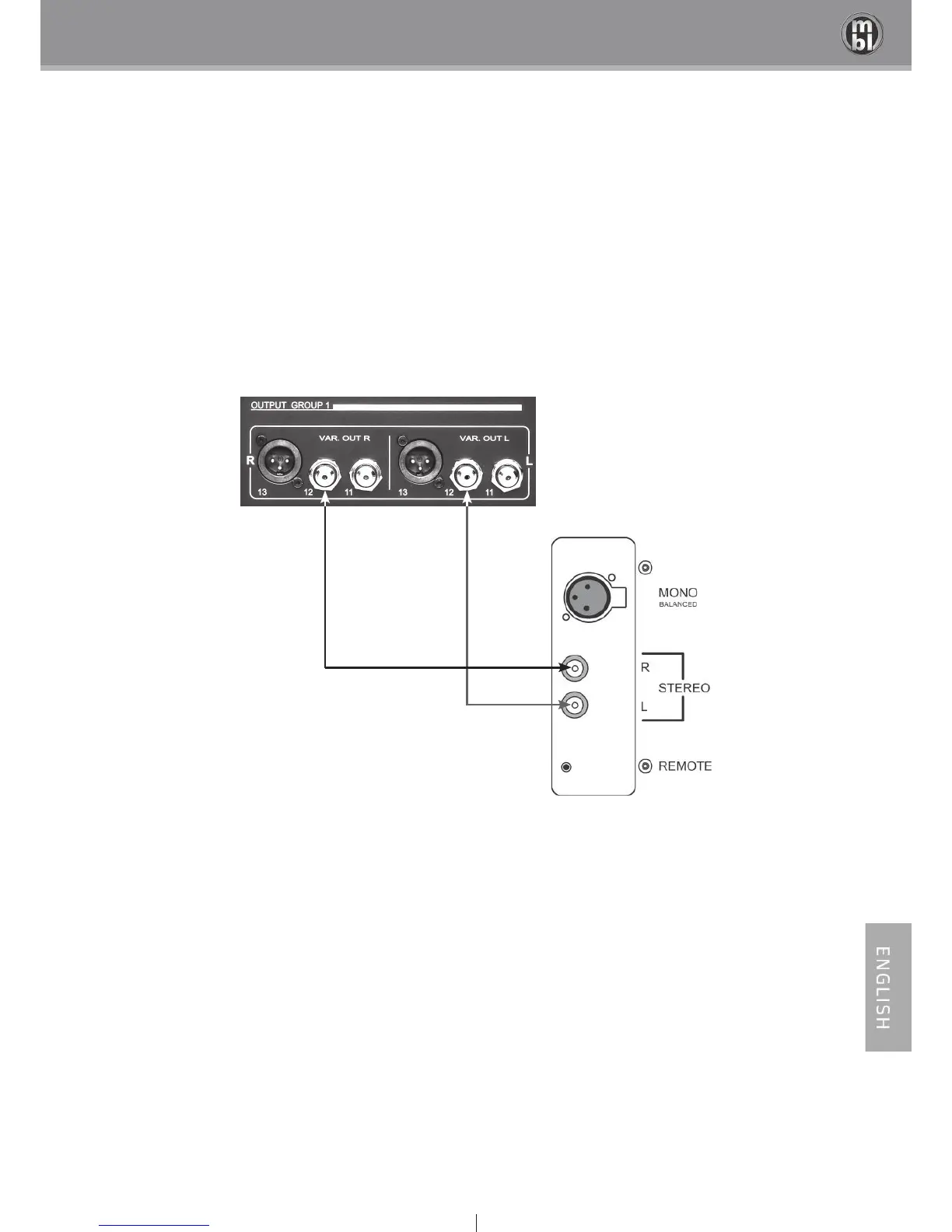

2.2 c) Connecting power ampliﬁer to preampliﬁer in stereo mode (Unbalanced Stereo)

Connect the preampliﬁer‘s output to the power ampliﬁer‘s input with RCA cable.

Note: Right channel „R“ (red) and left channel „L“ (white).

preampliﬁer

RCA cable left

RCA cable right

power ampliﬁer

stereo
