2.2 b) Connecting power amplifier to speakers in stereo mode, bi-wiring
Note the imprint STEREO on the back of the power amplifier.
If you want to connect one power amplifier to your loudspeakers in bi-wiring mode, use the STEREO connectors on the rear side
of the power amplifier. Connect the right speaker to the terminal area marked with R and the left speaker to the terminal area
marked with L.
Connect both minus terminals (WOOFER and SYSTEM) of each speaker with the respective ground connector ( ) of the power
amplifier. Connect the plus terminals of each speaker to the respective plus connectors (STEREO) of the power amplifier.

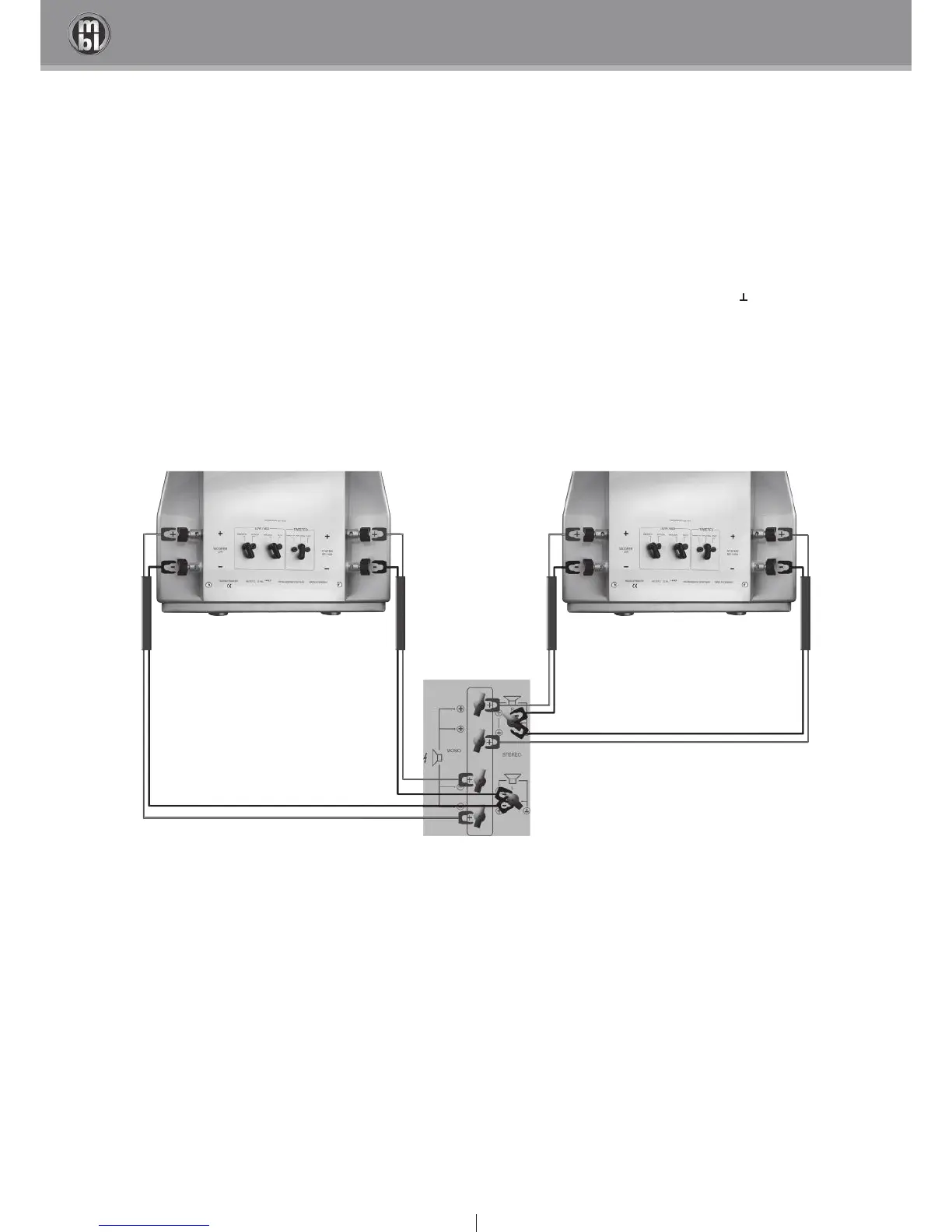

left speaker right speaker
power amplifier
stereo
WOOFER
terminals
SYSTEM
terminals
WOOFER
terminals
SYSTEM
terminals
Example with mbl 101 E MKII Radialstrahler
