2.2 a) Connecting power amplifier to speakers in stereo mode, single wiring
Note the imprint STEREO on the back of the power amplifier.
If you want to connect one power amplifier to your loudspeakers in single wiring mode, use the STEREO connectors on the back
of the power amplifier. Connect the right speaker to the terminal area marked with R and the left speaker to the terminal area
marked with L. Connect the minus terminal of each speaker with the respective ground connector ( ) of the power amplifier.
Connect the plus terminal of each speaker to the respective plus connector (STEREO) of the power amplifier.
power amplifier
stereo
right speakerleft speaker

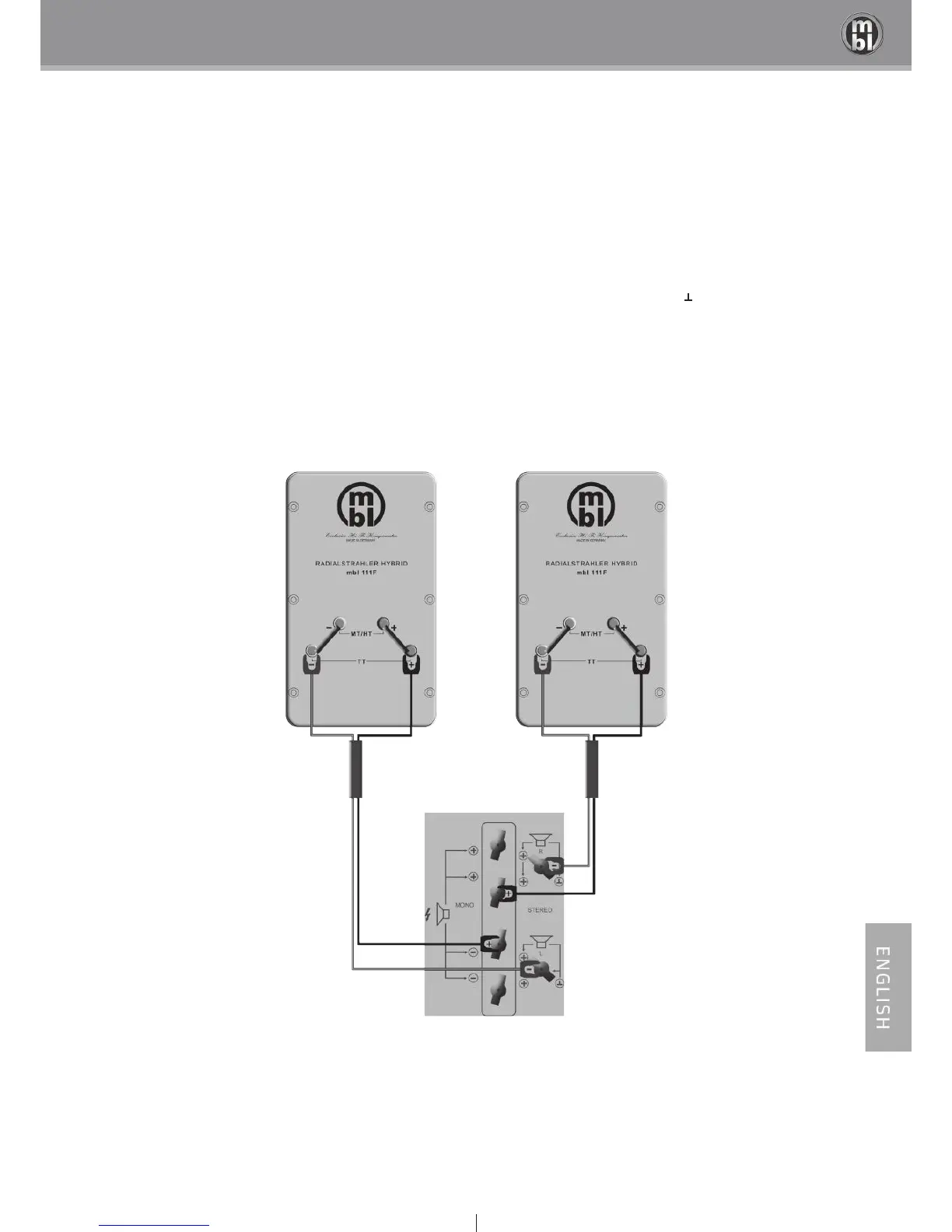

Example with mbl 111 F Radialstrahler Hybrid
