MBM 407A - Setup and Initial Configuration

(6) Set-Up

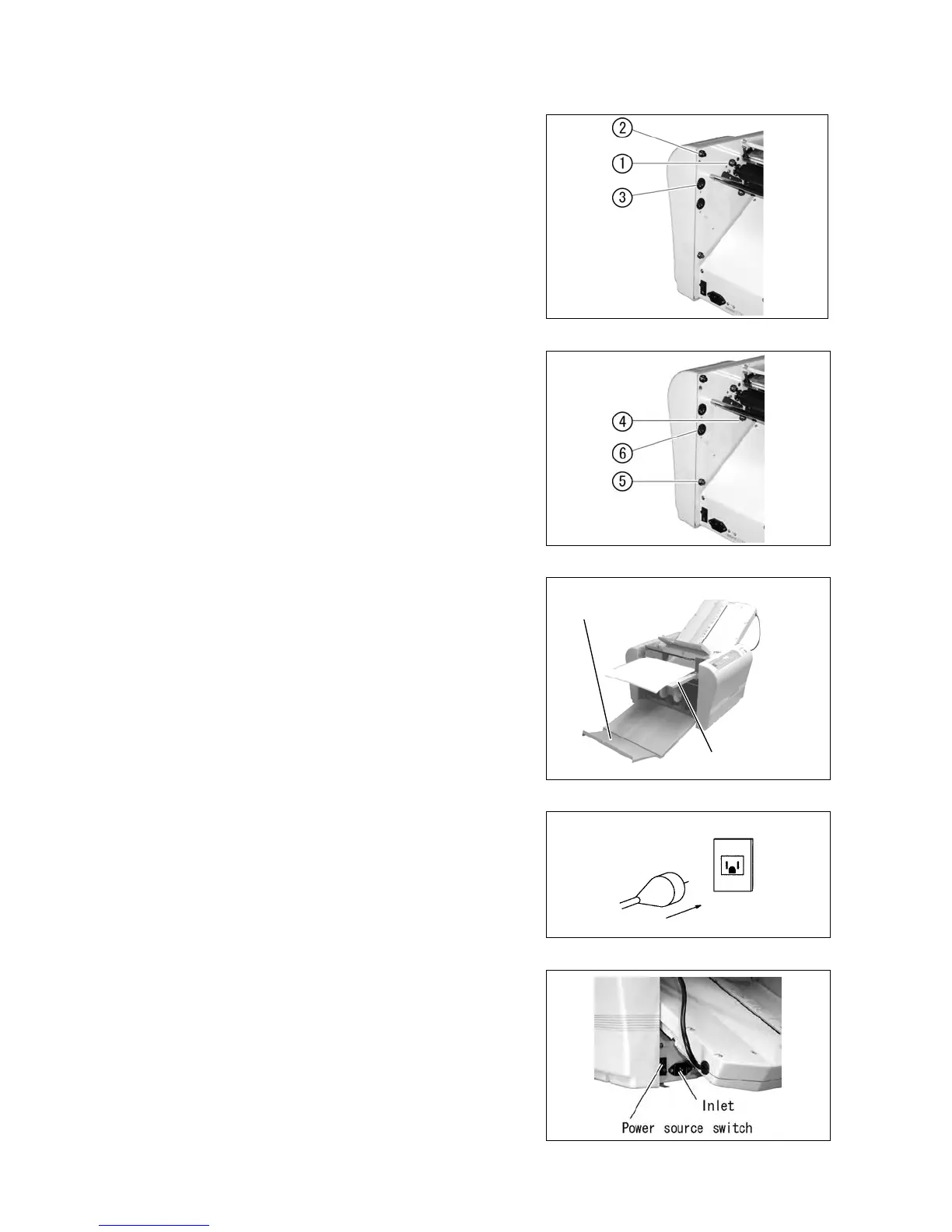

Install Table 1 and 2.
Insert the notched front part of Table 1 into stud ① and drop
its rear notched part onto stud ②. Insert the plug into the
connector ③.
Caution:
The connector can only be connected one way. Do not force.
Insert the notched front part of Table 2 into stud ④ and drop
its notched rear part onto stud ⑤. Insert the plug into the
connector ⑥.
Caution:
The connector can only be connected one way. Do not force.
Pull the paper eject table out and lift the auxiliary feed table
into position.
Insert the power cord into an outlet.
Caution:
Do not use a power cord other than the one provided.
Insert the power cord into the inlet.
When the power switch is turned on, the stoppers of Table 1
and 2 move to the zero position.
A
uxi l i ar
y
f eed t abl e
Paper ej ect t abl
e
9
http://www.monomachines.com/
http://www.monomachines.com/
•
' ..
P
Inlet
ower s
ource
switch
