MBM 407A - Machine Component Identification

(3) Part Names
①
④
⑤
⑦
⑧
⑥
② ③
⑨
⑩
⑪
⑫
⑬
⑭
⑲
⑰
⑱
⑮ ⑯ ⑳

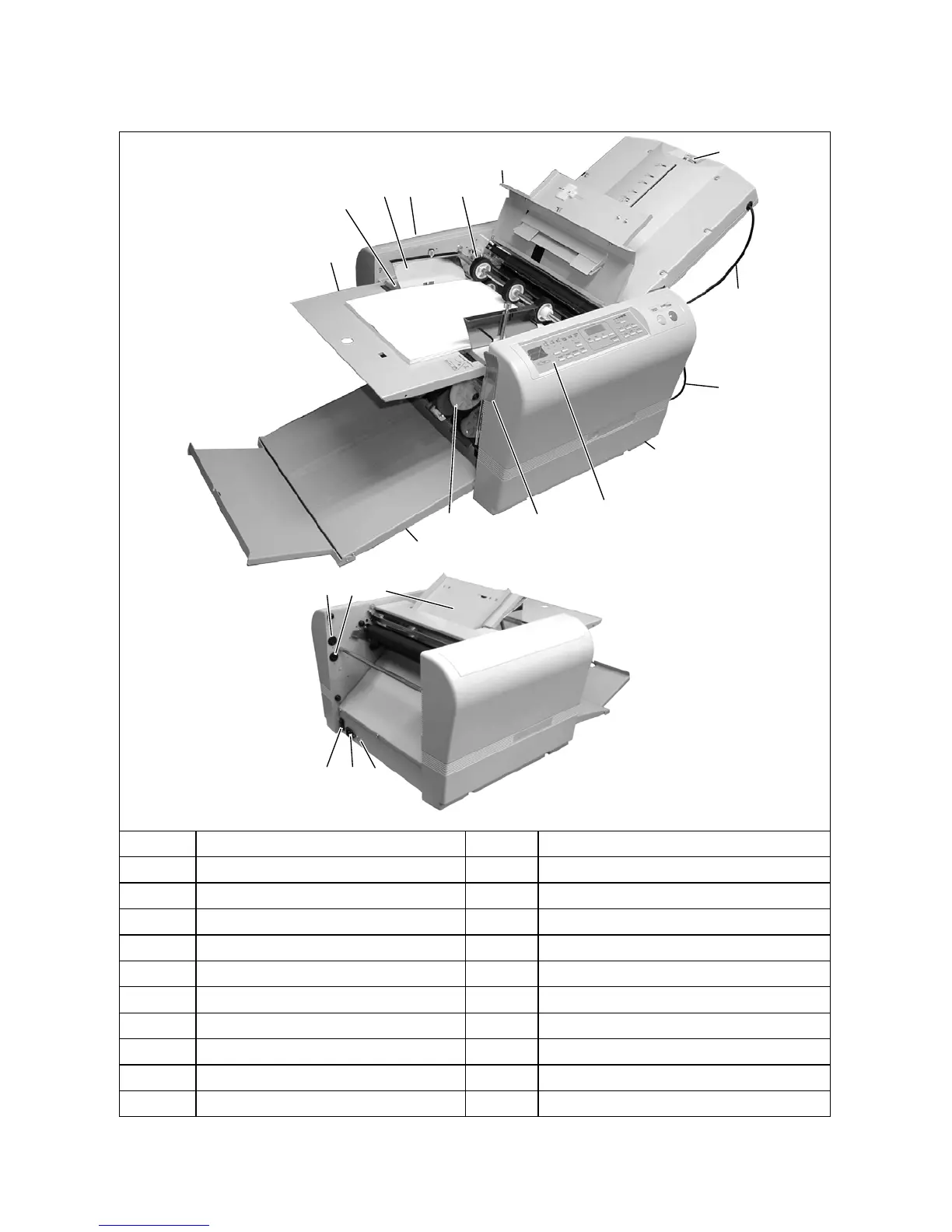

Number Name Number Name
① Safty cover ⑪ Paper feed table
② Left side cover ⑫ Table 2
③ Paper feed roller ⑬ Right side cover
④ Paper guide ⑭ Paper feed table lever (307A only)
⑤ Auxiliary feed table ⑮ Table 1 socket
⑥ Paper eject roller ⑯ Table 2 socket
⑦ Paper eject table ⑰ Power switch
⑧ Stopper fine adjustment knob ⑱ Inlet
⑨ Table 1 ⑲ Circuit breaker
⑩ Control panel ⑳ Manual paper feed tray(Option)
