• SFP/SFP+ 1/10 Gigabit Ethernet Monitoring ports (8)
• RJ-45 10/100/1000 Mbps Ethernet Monitoring ports (6)
4
RJ-45 10/100/1000 Mbps Ethernet Monitoring ports (8)
The supported transceiver modules are QSFP+, SFP+ (M2M and SM), SFP Fiber (MM and SM) and SFP Copper.

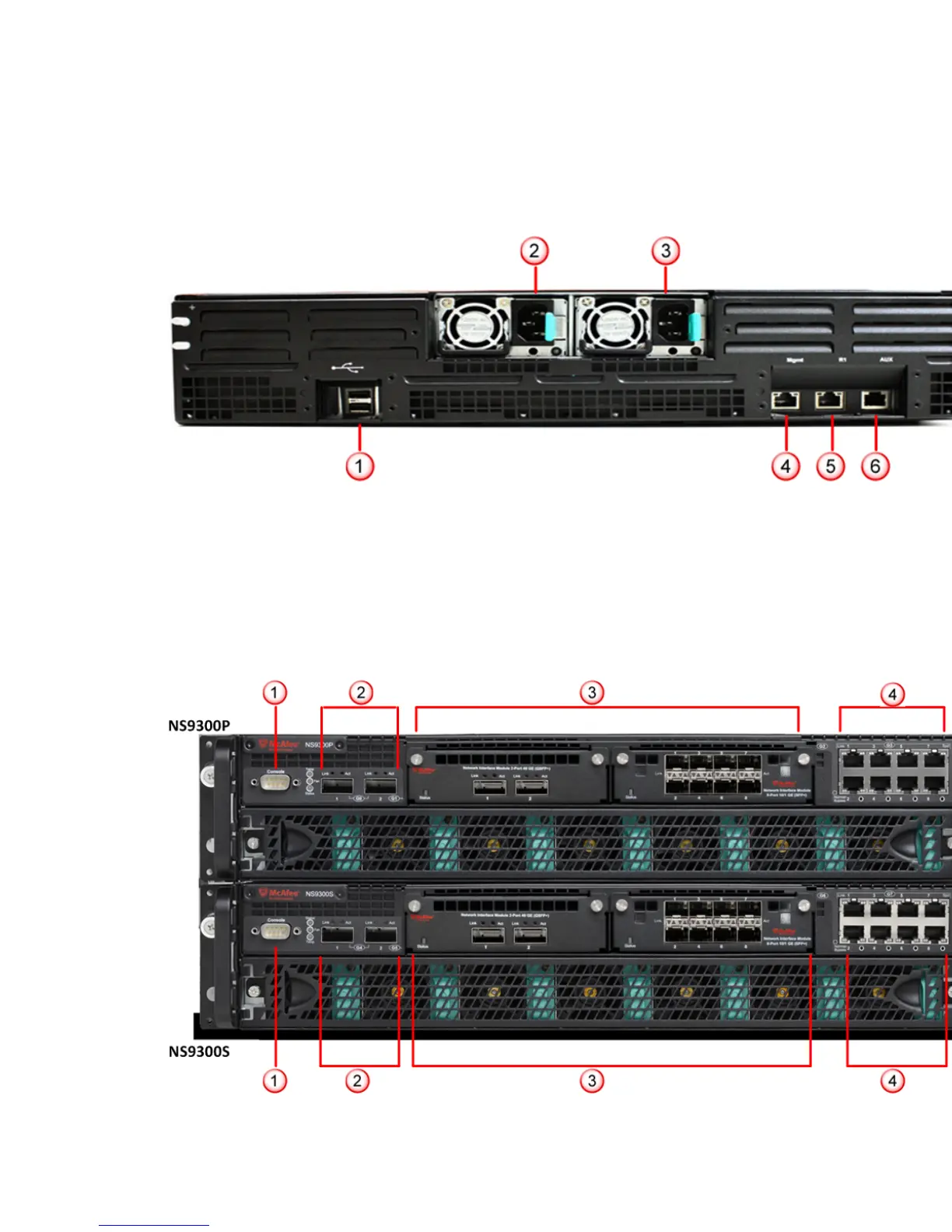

Figure 2 Sensor rear panel
1
USB ports (2)
4
RJ-45 100/1000/10000 Management port
(Mgmt) (1)
2
Power supply A (Pwr A)
5
RJ-45 100/1000/10000 Response port (R1) (1)
3
Power supply B (Pwr B) (optional on NS9100)
6
RJ-45 Auxiliary port (Aux) (1)
The NS9300 Sensor model
Figure 3 Sensor front panel
2
