The NS9300 Sensor consists of a Primary Sensor, NS9300P, and a Secondary Sensor, NS9300S.
1
Console ports on the NS9300P and NS9300S Sensors (2)
2
QSFP+ 40 Gigabit Ethernet Interconnect ports (4). G0/1 and G0/2 on NS9300P Sensor and G4/1 and G4/2 on
NS9300S Sensor.
3
Four slots for I/O modules (Any combination of the interface modules can be used)
• QSFP+ 40 Gigabit Ethernet ports (4)
• QSFP+ 40 Gigabit Ethernet ports (2)
• SFP/SFP+ 1/10 Gigabit Ethernet Monitoring ports (8)
• RJ-45 10/100/1000 Mbps Ethernet Monitoring ports (6)
4
RJ-45 10/100/1000 Mbps Ethernet Monitoring ports (16)
The supported transceiver modules are QSFP+, SFP+ (MM and SM), SFP Fiber (MM and SM) and SFP Copper.

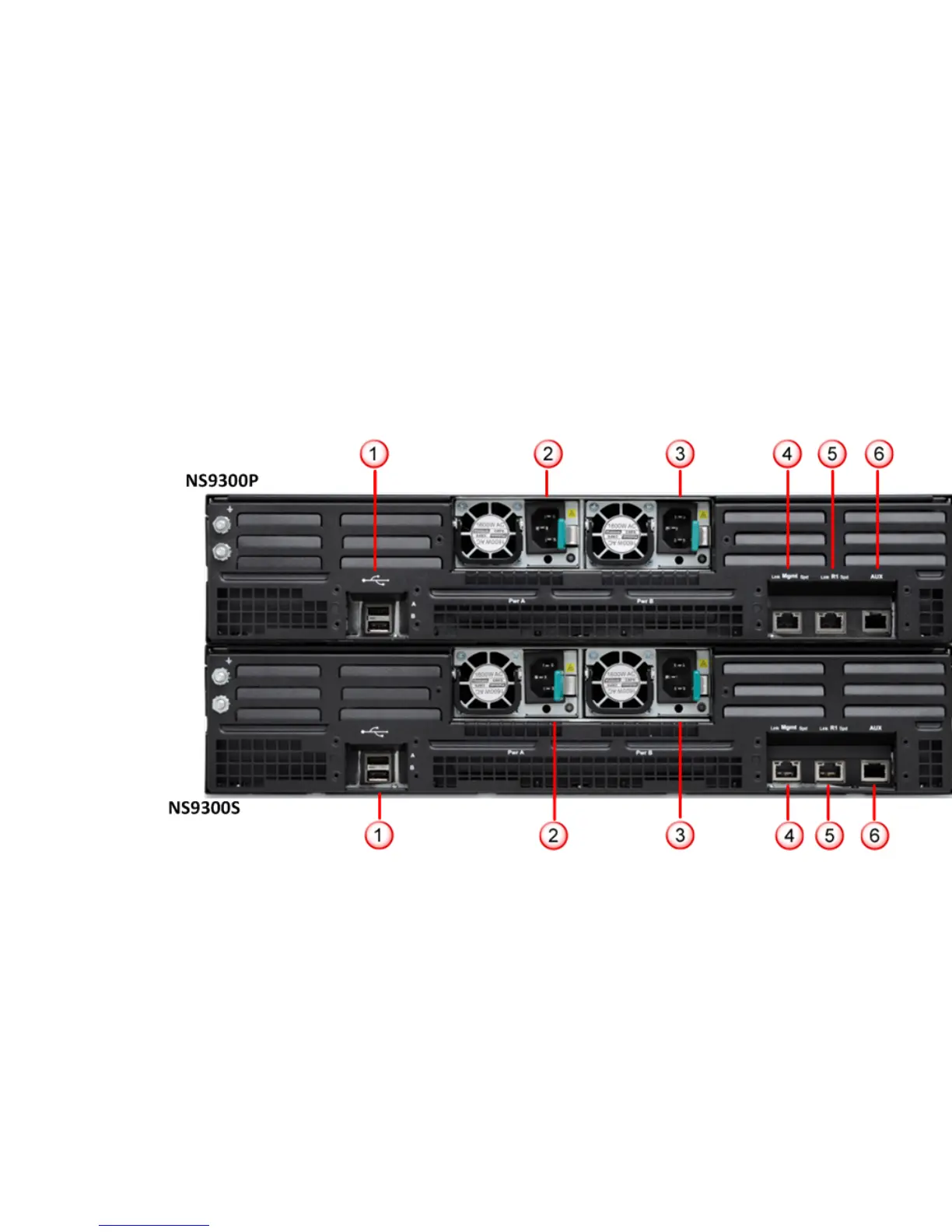

Figure 4 Sensor rear panel
1
USB ports (4)
2
Power supply A (Pwr A)
3
Power supply B (Pwr B)
4
RJ‑45 100/1000/10000 Management port (Mgmt) (2). Mgmt on NS9300S Sensor is used as an interconnect
port.
5
RJ‑45 100/1000/10000 Response port (R1) (2). R1 on NS9300P Sensor is used as an interconnect port.
6
RJ‑45 Auxiliary ports (Aux) (2)
