12
HYDRAULIC CONNECTIONS

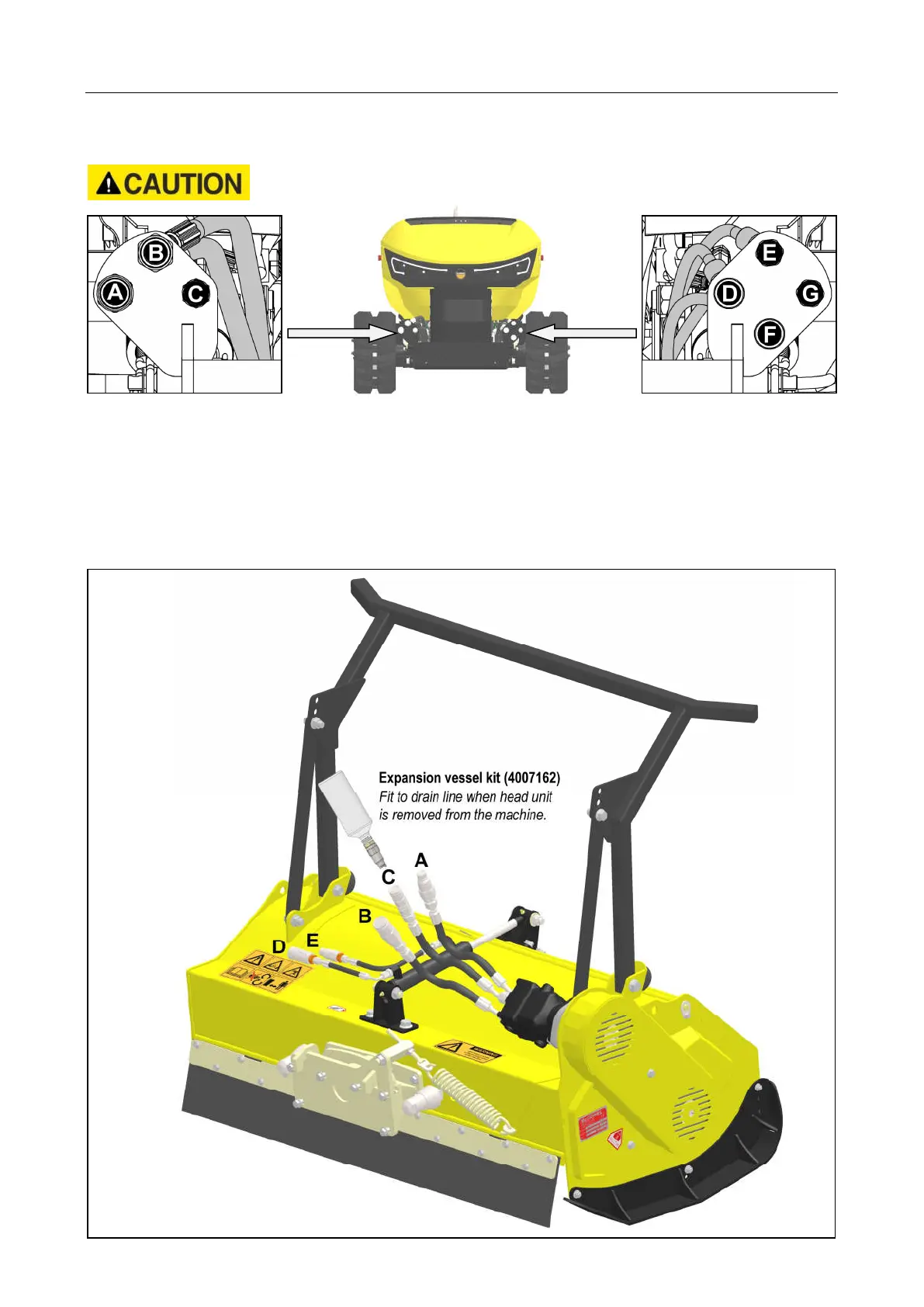

Robocut Hydraulic Connection Points
Robocut RC56 & RC75 hydraulic connection points for head unit attachment.
Ensure hydraulic couplings on the machine and the attachment are free from
dirt or debris – check and clean all couplings prior to connection.
When removing head unit from machine
ensure that expansion vessel is fitted
to the head unit drain line hose.
Ensure that the hydraulic hoses for the hood ram are attached to the correct connection
points (D & E) as indicated in the diagram above. The pressure and drain line hoses (A, B
& C) can only be attached on their corresponding connections. Connections F & G are
reserved for auxiliary use.
Head Unit Hose Connection
A. Pressure ‘A’
B. Pressure ‘B’
C. Drain line
D. Hood Ram (Base)
E. Hood Ram (Gland)
F. & G. Auxiliary use only
