For extended machine storage, it is advisable to release
the belt tension and re-tension the belt before next use.

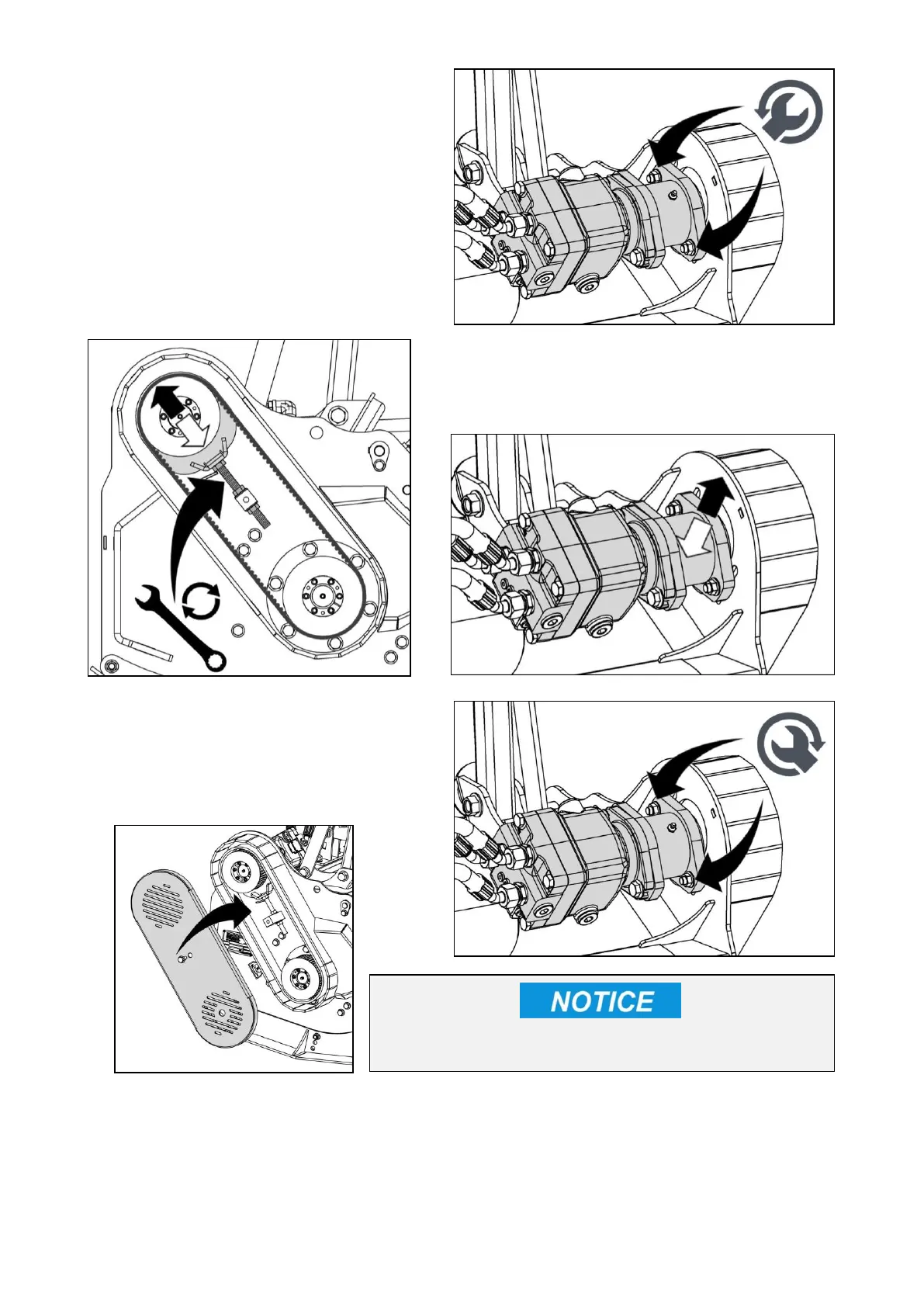

2. Slacken nuts on the bearing support;
only slacken the nuts enough to allow
the adjustment plate freedom to move.
3. Loosen adjuster locknuts and rotate adjuster
bolt to set belt tension - use a tension gauge.
Re-tighten adjuster locknuts when belt tension
is correct.
4. Re-tighten nuts on the bearing support.
Re-check belt tension to confirm that
the tension setting is correct.
5. Replace and secure the belt cover
before running the machine.
Belt Replacement
When replacing a drive belt, the procedure is the same as above other than the tensioner
will need to be loosened enough to allow removal of the old belt and subsequent fitment of
the new one.
Note: When installing a new belt, its tension should be re-checked after an initial hour or
so of operation; if necessary, re-tension the belt to the correct setting.
