KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 10 62-22 Tire F Ts 15 x 6 0 - 6 Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 18 33-37 Rim Asm 6" front White Service
6 532 12 49-57 Fit ting Grease (Front Wheel Only)
7 532 12 49-59 Bear ing Flange (Front Wheel Only)
8 532 18 33-38 Rim Asm 8" rear White Service
9 532 10 62-68 Tire R Ts 18 x 9.5-8 C. Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 17 50-39 Cap Axle Blk 1 50 x 1 00
- - 532 14 43-34 Sealant, Tire ( 10 oz. Tube)
8
20
14
5
1 532 18 96-97 Decal Steering Wheel
2 532 14 08-37 Decal Saddle Brake Parking
3 532 18 96-91 Decal Hood
4 532 18 95-74 Decal Fender
5 532 18 47-67 Decal HP Engine
6 532 18 04-32 Decal Europe Stand CE
8 532 18 21-66 Decal Mower Cutfi nger
10 532 14 54-98 Decal Read Owner's Manual Syms.
11 532 15 97-36 Decal Chassis Hot Muffl er
KEY PART
NO. NO. DESCRIPTION
2
6
2
1
5,8
4,10
3,9
11
7
wheel_1
WHEELS & TIRES
12 532 15 97-37 Decal Brake/ Clutch Symbol Lt
14 532 13 68-32 Decal V-Belt Schematic
20 532 14 50-05 Decal Bat Dan/Psn
- - 532 16 25-98 Decal Drawbar
- - 532 13 83-11 Decal Handle Lift Height Adjust
- - 532 18 51-49 Manual Operator's (Euro.)
- - 532 18 52-38 Manual Operator's (Scand)
- - 532 18 51-50 Manual Operator's (E-Bloc)
- - 532 18 94-73 Manual Parts
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6

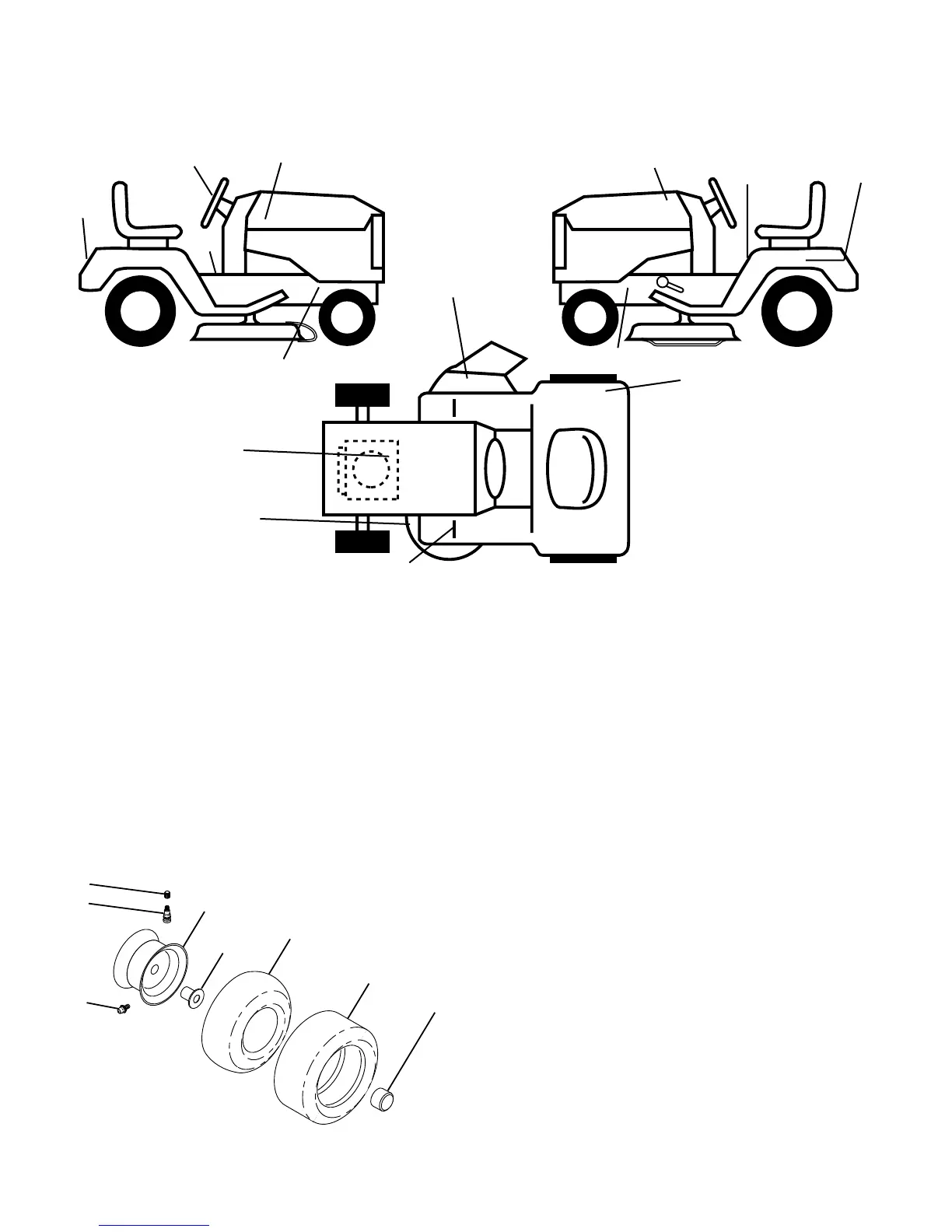

REPAIR PARTS
TRACTOR - MODEL NO. 14596 (BA14596B), PRODUCT NO. 964 77 26-02
DECALS
11
12
11
3
1
4
