1 532 17 05-51 Control Th/ch Flag
2 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2
3 - - - - - - - - Engine B&S Model No. 282H07
(Order Parts From Engine Manufac-
turer)
4 532 13 73-52 Muffl er
13 532 16 52-91 Gasket Eng 1 313 Id Tin Plated
14 532 14 84-56 Tube Drain Oil Easy
23 532 16 98-37 Shield Brn/Dbr Guard
25 532 18 09-45 Control Choke
29 532 13 71-80 Kit Spark Arrestor (Flat Scrn)
31 532 18 49-00 Tank Fuel Front
32 532 14 05-27 Cap Asm Fuel W/sym Vented
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
1
OPTIONAL EQUIPMENT
Spark Arrester
29
44
46
32
31
33
37
33
13
4
72
78
81
3
78
23
45
14
38
40
25
engine-bs.1cyl_38

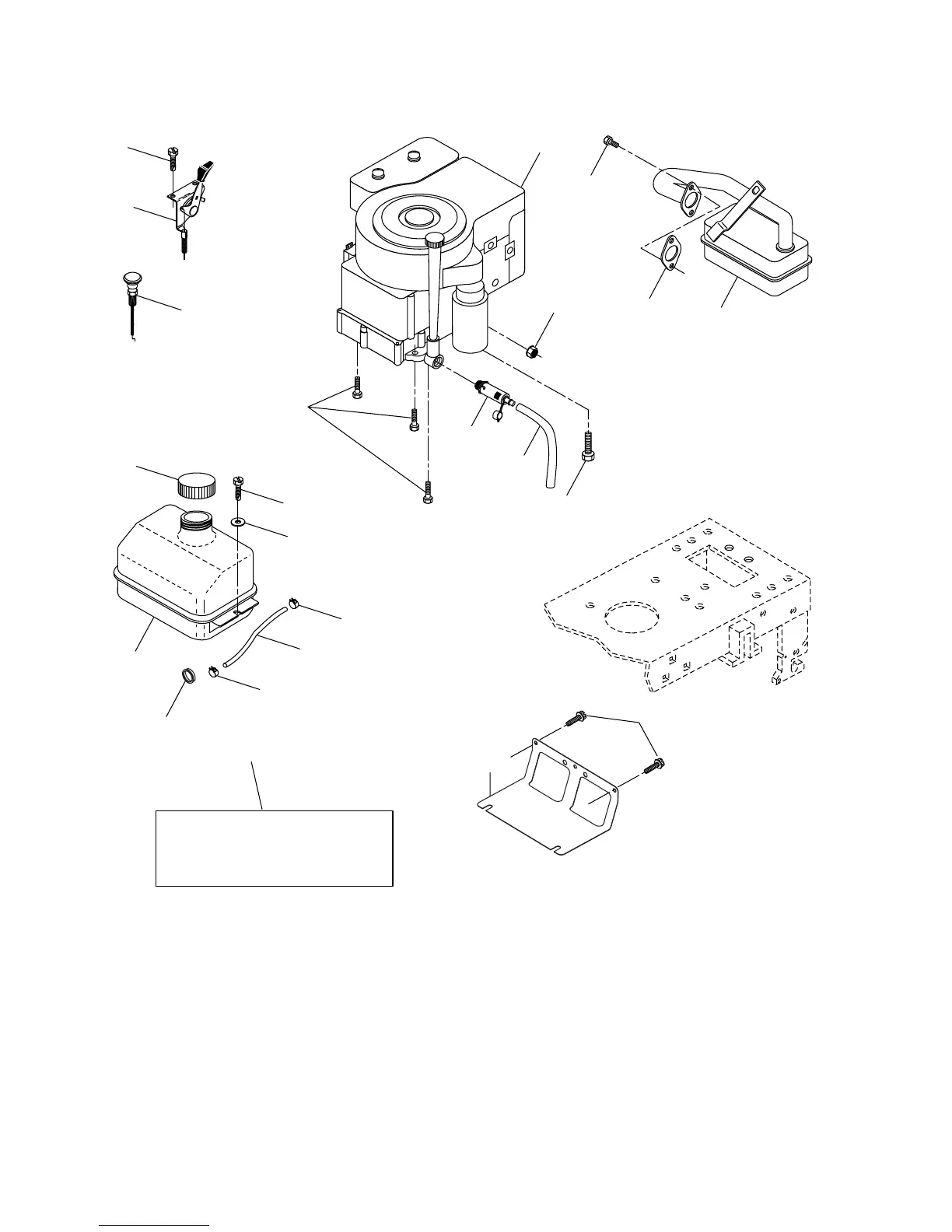

REPAIR PARTS
TRACTOR - MODEL NO. 14596 (BA14596B), PRODUCT NO. 964 77 26-02
ENGINE
33 532 12 34-87 Clamp Hose Black
37 532 13 70-40 Line Fuel 20"
38 532 18 16-54 Plug Drain Oil Easy
40 532 12 40-28 Bushing Snap Nyl Blk Fuel Line
44 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4
45 817 00 06-12 Screw Hex Wsh Thdrol 3/8-16 x 3/4
46 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
72 532 18 39-06 Screw Socket Head 5/16-18 x 1
78 817 06 06-20 Screw 3/8-16 x 1-1/4
81 873 51 04-00 Nut 1/4-20
KEY PART
NO. NO. DESCRIPTION
To Next Page
