McCulloch 96192004000 - Page 26

26
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION

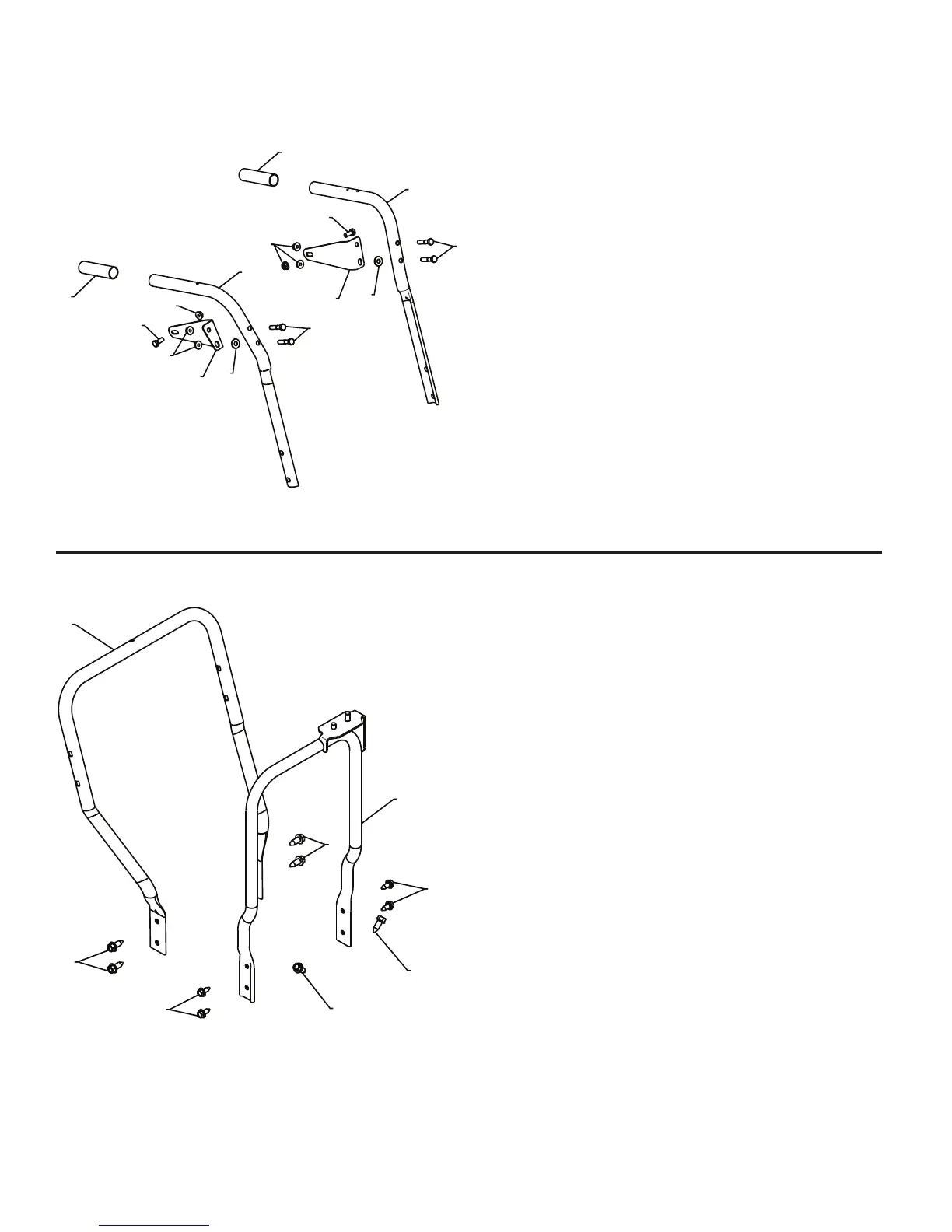

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC624ES (96192004000)
HANDLES
1
2
3
4
5
5
6
6
7
7
8
8
8
9
9
01.08.003-A
1 419800X431 PLOW HANDLE LH
2 419801X431 PLOW HANDLE RH
3 196944X431 PANEL BRACKET LH
4 196943X431 PANEL BRACKET RH
5 199513 HANDLE GRIP
6 74780512 SCREW 5/16−18 X .750
7 74780524 SCREW 5/16−18 X 1.50
8 751153 NUT 5/16−18
9 155415 WASHER
1
2
3
3
4
4
4
4
01-05-013-A
1 419797X431 LOWER HANDLE
2 427513X431 PIVOT SUPPORT WELDMENT
3 428867 SCREW 5/16−18 X .750
4 17000616 SCREW 3/8−16 X 1.00
