McCulloch 96192004000 - Page 27

27
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION

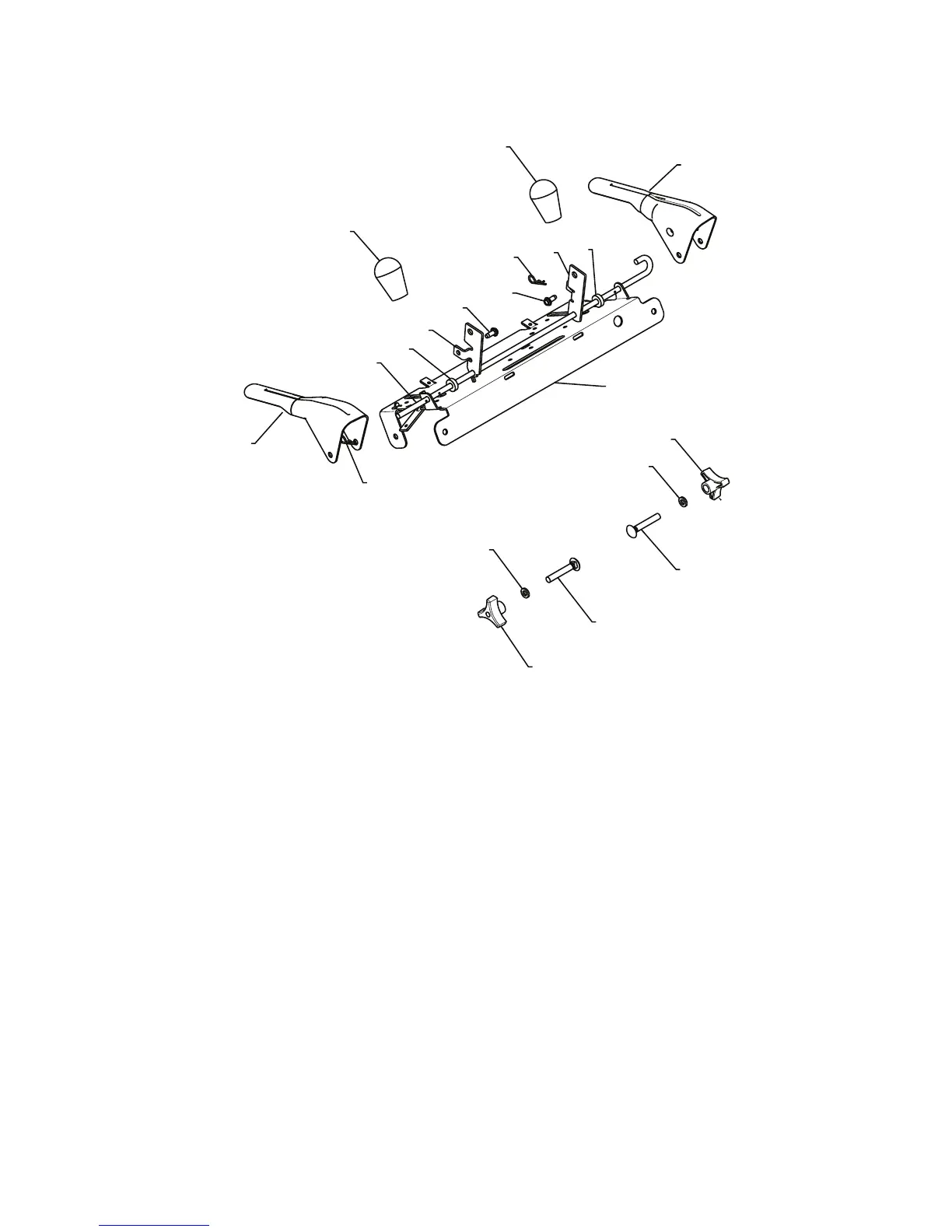

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC624ES (96192004000)
HANDLES
10
11
1
2
3
4
5
6
7
7
9
9
8
8
12
12
13
13
14
14
01.08.002-F
1 412683X431 CONTROL PANEL
2 424517X431 CONTROL LEVER LH
3 424516
X431 CONTROL LEVER RH
4 41 26-79X008 TRACTION ROD ARM
5 426918X008 IMPELLER ROD ARM
6 412677 INTERLOCK BAIL
7 421613 SPACER
8 169675 RETAINER
9 17060410 SCREW 1/4-20 X .62
10 414280 KNOB BLACK
11 414281 KNOB RED
12 178899 HANDLE KNOB
13 19131316 WASHER 3/8
14 72120618 CARRIAGE BOLT 3/8-16 X 2.25
