McCulloch 96192004000 - Page 28

28
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION

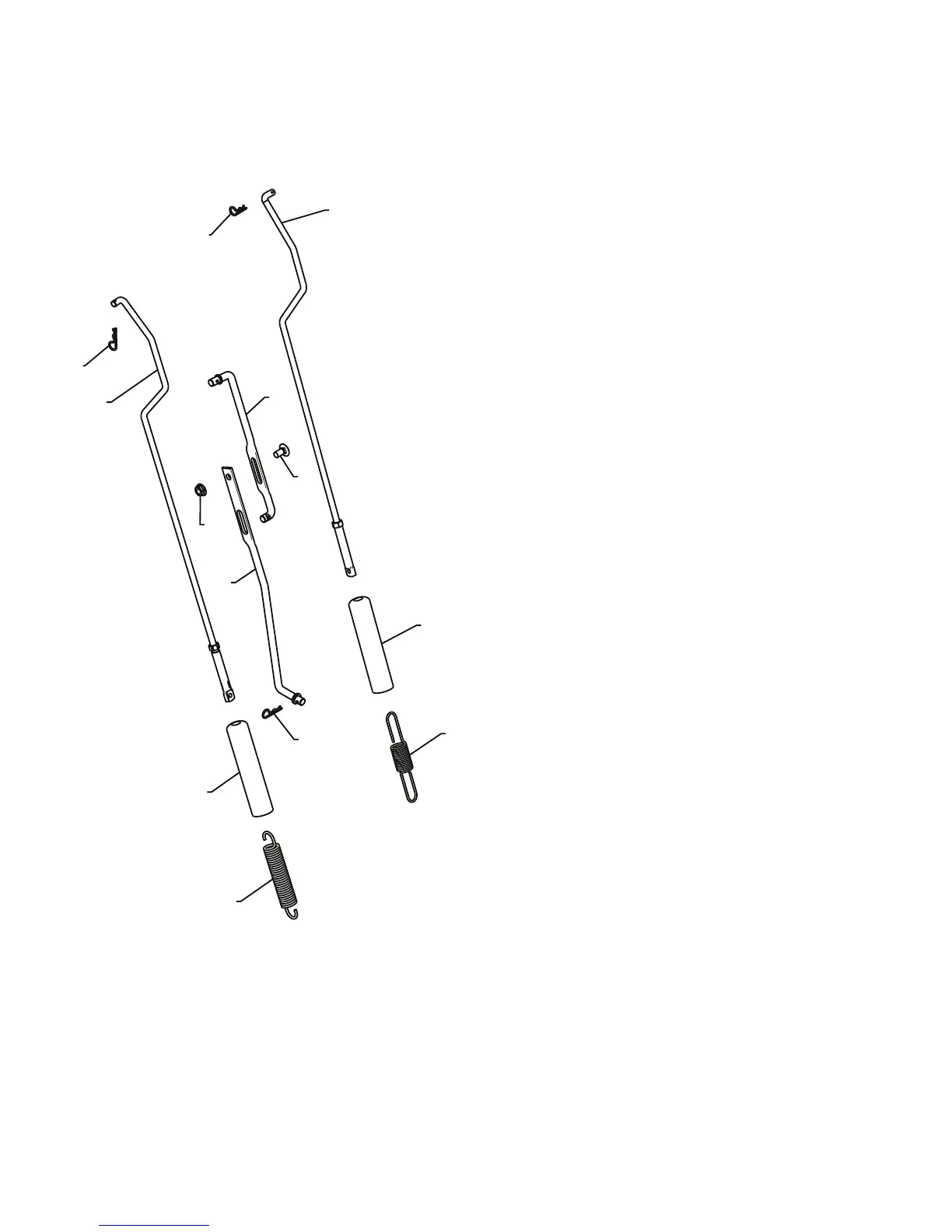

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC624ES (96192004000)
HANDLES
10
10
10
1
2
3
4
5
5
6
7
9
8
01.12.001-E
1 180480 IMPELLER ROD
2 405740 TRACTION ROD
3 180445 SHIFTER ROD TOP
4 187716 SHIFTER ROD BOTTOM
5 180447 SPRING SLEEVE
6 178669 IMPELLER SPRING
7 180926 TRACTION SPRING
8 72270505 CARRIAGE BOLT 5/16-18 X .625
9 155377 NUT 5/16-18
10 169675 RETAINER
