29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION

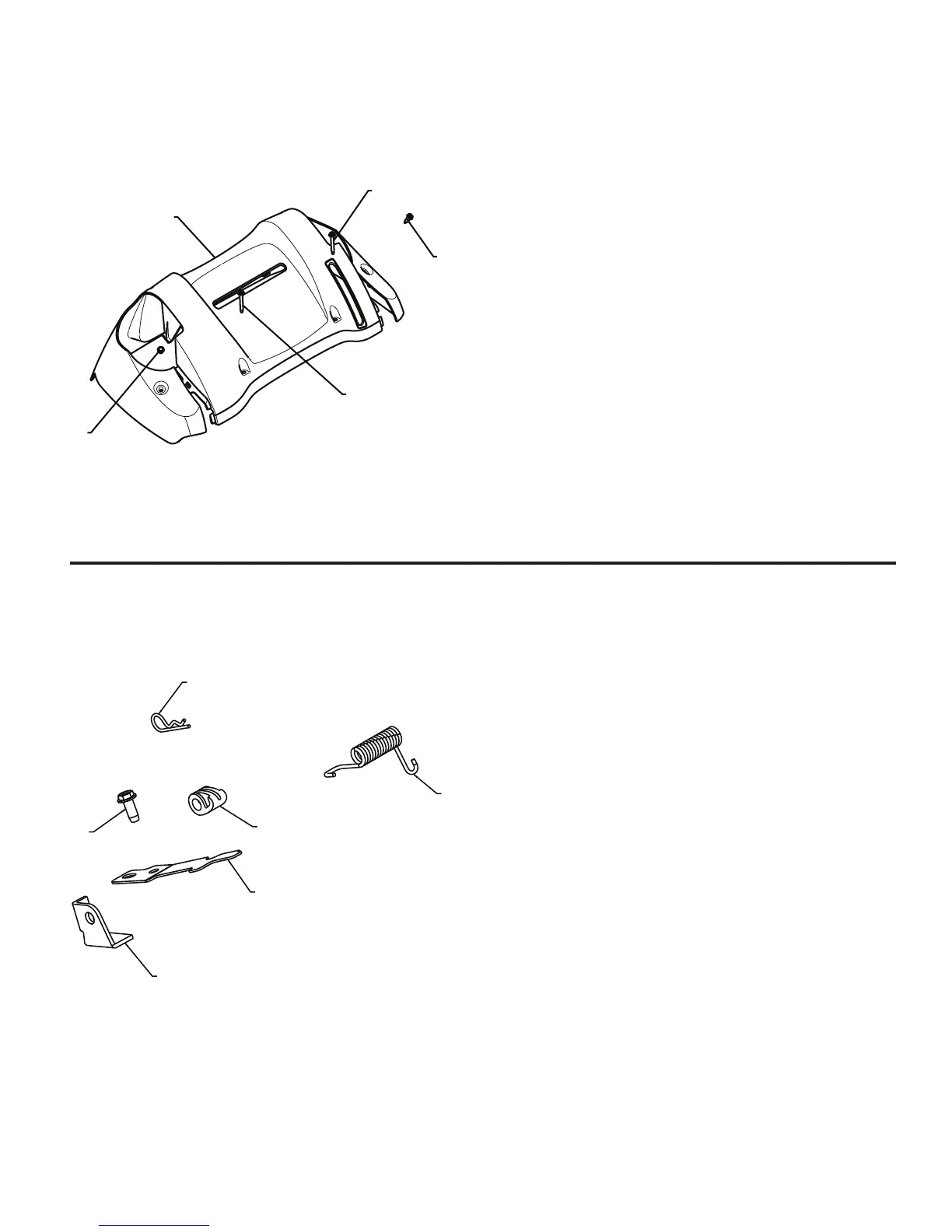

REPAIR PARTS SNOW THROWER - - MODEL NUMBER MC624ES (96192004000)
HANDLES
01.10.001-B
1
3
3
2
2
1 183352 CONSOLE PANEL
2 184471 SCREW 10−24 X .625
3 175262 SCREW 10−24 X 1.25
1
2
3
4
5
6
01.08.007-B
1 412675X431 INTERLOCK SPRING
2 414572 INTERLOCK CAM
3 178831 TORSION SPRING
4 169675 RETAINER
5 17060410 SCREW 1/4−20 X .625
6 421252X431 INTERLOCK STOP
KEY PART
NO. NO. DESCRIPTION
