McCulloch M17538H User Manual

McCulloch M17538H

32 pages

To Next Page

To Next Page

Page #1 background image

Loading...

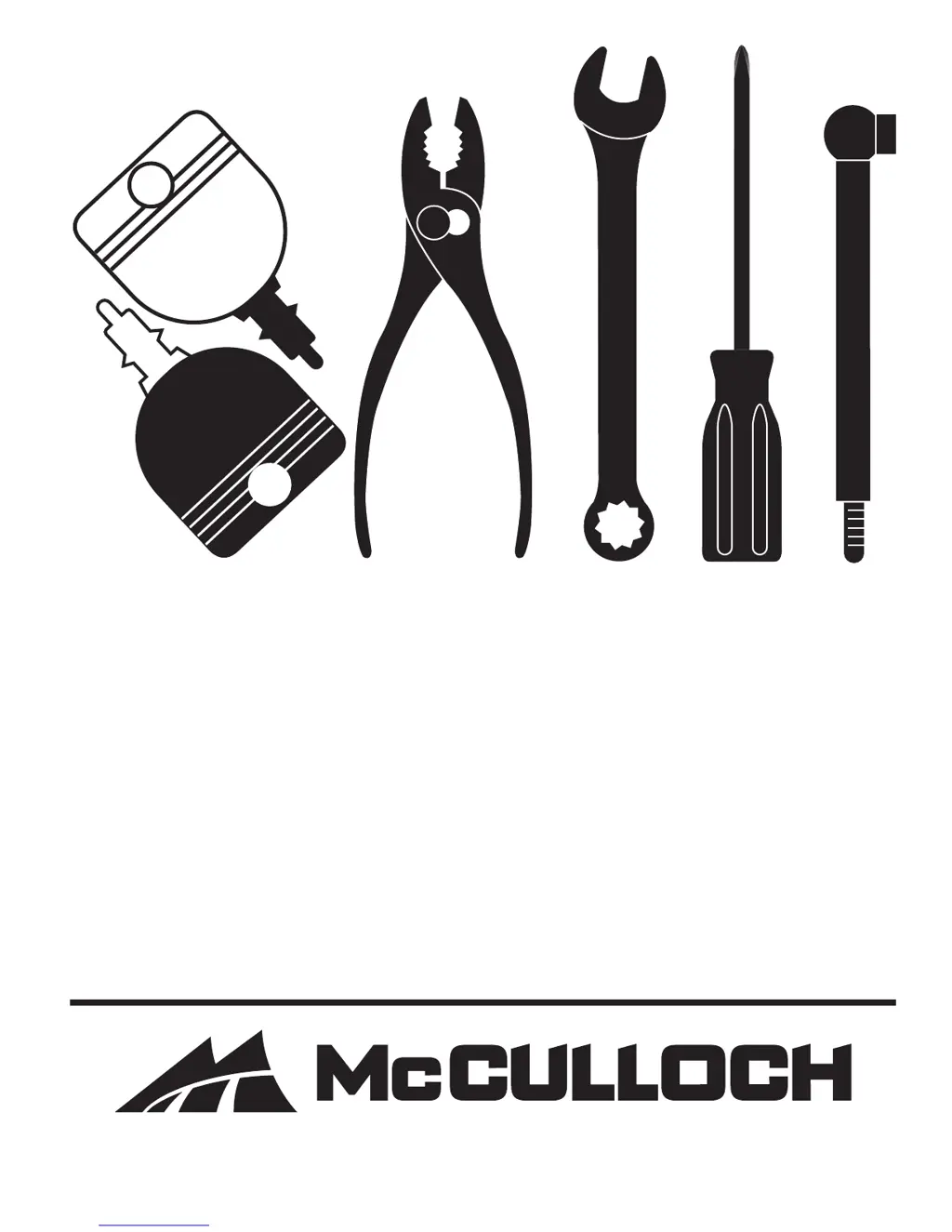

Page #1 background image

• Assembly

• Operation

• Maintenance

• Service and Adjustments

• Storage

• Troubleshooting

www.mcculloch.biz

532 43 38-90

OPERATOR’S MANUAL

MODEL NO. M17538H

17.5 HP

*

38 INCH

LAWN TRACTOR

*As rated by the engine manufacturer

Other manuals for McCulloch M17538H

Owner's Manual32 pages

Questions and Answers:

C
Christian StewartAug 21, 2025
How to fix a McCulloch M17538H that will not start?
- E
  Emily CobbAug 21, 2025
  If your McCulloch Lawn Mower won't start, several factors could be the cause. First, ensure that the fuel tank is filled. If the engine isn't choked properly, consult the “TO START ENGINE” section in the Operation section. If the engine is flooded, wait a few minutes before trying again. Other potential issues include a bad spark plug (replace it), a dirty air filter (clean or replace it), a dirty fuel filter (replace it), or water in the fuel (empty the tank and carburetor, refill with fresh gasoline, and replace the fuel filter). Also, check for loose or damaged wiring. If none of these steps work, the engine valves may be out of adjustment, and you should contact an authorized service center.
B
Brandi AndersonAug 26, 2025
How to troubleshoot a hard to start McCulloch M17538H Lawn Mower?
- C
  Christine MuellerAug 27, 2025
  If your McCulloch Lawn Mower is hard to start, begin by checking the air filter and clean or replace it if it’s dirty. A bad spark plug can also cause this issue, so replace it if necessary. Check the battery; if it’s weak or dead, recharge or replace it. Additionally, a dirty fuel filter can be the culprit, so replace it. If the fuel is stale or dirty, empty the fuel tank and refill it with fresh, clean gas. Also, check all wiring for any looseness or damage. If none of these steps work, the engine valves may be out of adjustment, and you should contact an authorized service center.
J
Jenny StewartAug 27, 2025
What to do if McCulloch M17538H Lawn Mower engine clicks but will not start?
- A
  alexandermccarthyAug 27, 2025
  If your McCulloch Lawn Mower engine clicks but won't start, the problem might stem from a weak or dead battery, so try recharging or replacing it. Another potential cause is corroded battery terminals, which you should clean. Also, check for loose or damaged wiring. If the issue persists, the solenoid or starter might be faulty, requiring a check and potential replacement.
M
Mark MayerAug 29, 2025
What causes a McCulloch M17538H engine will not turn over?
- W
  webbjamesAug 29, 2025
  If your McCulloch Lawn Mower engine will not turn over, make sure the brake pedal is depressed. Also, check that the attachment clutch is disengaged. If these aren't the issue, the battery may be weak or dead, requiring a recharge or replacement. A blown fuse can also prevent the engine from turning over, so replace it if necessary. Clean any corroded battery terminals. Inspect all wiring for looseness or damage. If the problem continues, the ignition switch, solenoid, or starter might be faulty and need checking or replacement. For faulty operator presence switch(es), contact an authorized service center.
B
Blake PayneAug 31, 2025
What causes McCulloch M17538H Lawn Mower blades will not rotate?
- N
  ncraigAug 31, 2025
  If your McCulloch Lawn Mower blades will not rotate, there might be an obstruction in the clutch mechanism, which you should remove. Another cause could be a worn or damaged mower drive belt, requiring replacement. Additionally, check for a frozen idler pulley or blade mandrel, and replace them if necessary.
J
Justin WilsonSep 1, 2025
Why does my McCulloch Lawn Mower have loss of drive?
- B
  Brittany BoltonSep 1, 2025
  If your McCulloch Lawn Mower has loss of drive, ensure the freewheel control is in the “engaged” position. If equipped, check for debris on the steering plate. A worn, damaged, or broken motion drive belt can also cause this, so replace it. If air is trapped in the transmission, purge it. Finally, check for a missing axle key and install one at the rear wheel.
B
Bryce ObrienSep 4, 2025
Why is my McCulloch Lawn Mower hard to start?
- S
  Shelly CollinsSep 4, 2025
  Your McCulloch Lawn Mower may be hard to start due to a dirty air filter (clean or replace it), a bad spark plug (replace it), a weak or dead battery (recharge or replace it), a dirty fuel filter (replace it), or stale or dirty fuel (empty the fuel tank and refill it with fresh, clean gas). Also, check for loose or damaged wiring. If the carburetor is out of adjustment, see the Service Adjustments section. If the engine valves are out of adjustment, contact an authorized service center/department.
Y
yrogersSep 6, 2025
Why does my McCulloch M17538H Lawn Mower have a poor cut?
- L
  Lauren ReyesSep 6, 2025
  If your McCulloch Lawn Mower provides a poor and uneven cut, several factors could be responsible. Start by checking the blade for wear, bending, or looseness; replace the blade and tighten the blade bolt if needed. Ensure the mower deck is level. Remove any buildup of grass, leaves, or trash under the mower. Also, inspect the blade mandrel for bending and replace it if necessary. Lastly, check for clogged mower deck vent holes due to buildup of grass, leaves, and trash around the mandrels, and clean around the mandrels to open vent holes.
R
Raymond DawsonSep 7, 2025
Why does my McCulloch M17538H have excessive vibration?
- Y
  yflynnSep 8, 2025
  If your McCulloch Lawn Mower experiences excessive vibration, it could be due to a worn, bent, or loose blade; replace the blade and tighten the blade bolt. Another possibility is a bent blade mandrel, which would need replacement. Also, check for any loose or damaged parts and tighten or replace them as necessary.

McCulloch M17538H Specifications

General

Brand	McCulloch
Model	M17538H
Category	Lawn Mower
Language	English

Summary

Safety Rules for Ride-On Mowers

General Operation and Slope Safety

Essential practices for safe operation and navigating slopes.

Child Safety, Towing, and Service Precautions

Important warnings concerning children, towing, and general service safety.

Product Specifications

Customer Responsibilities and Tractor Data

Owner's duties and key technical specifications for the lawn tractor.

Assembly Instructions

Tractor Preparation and Steering Assembly

Unpacking the tractor and assembling the steering wheel and associated parts.

Seat Installation and Battery Check

Procedures for installing the seat and checking the battery status.

Final Assembly Checks and Skid Removal

Verifying tire pressure, deck levelness, belts, and removing tractor from skid.

Tractor Operation Guide

Tractor Controls and Starting Procedures

Familiarization with tractor controls, dashboard symbols, and engine starting.

Driving, Mowing, and Slope Handling

Guides on using controls, operating the mower, and safe slope driving.

Transmission Purge and Mowing Tips

Procedures for transmission purging and advice for effective mowing.

Maintenance Procedures

Maintenance Schedule and General Recommendations

Overview of routine maintenance tasks and general advice for upkeep.

Engine and Filter Servicing Procedures

Instructions for engine oil changes, filter replacement, and lubrication.

Tractor Cleaning and Component Maintenance

Procedures for cleaning the tractor, air filter, muffler, and fuel filter.

Service and Adjustments

Mower Deck Removal and Installation

Detailed steps for detaching and reattaching the mower deck from the tractor.

Mower Deck Leveling and Adjustments

How to adjust the mower deck for optimal side-to-side and front-to-back cutting.

Drive Belt Replacement and Brake Checks

Procedures for replacing drive belts and verifying brake system functionality.

Storage Preparation

Tractor and Battery Storage Preparation

Steps to prepare the tractor and battery for long-term storage to prevent damage.

Fuel System Management for Storage

Methods to prevent fuel gumming and system damage during engine storage.

Troubleshooting Common Issues

Engine Starting and Running Problems

Common causes and solutions for engine not starting or running poorly.

Performance and Drive System Issues

Troubleshooting for uneven cuts, loss of power, and drive system malfunctions.

Suggested Guide for Sighting Slopes for Safe Operation
