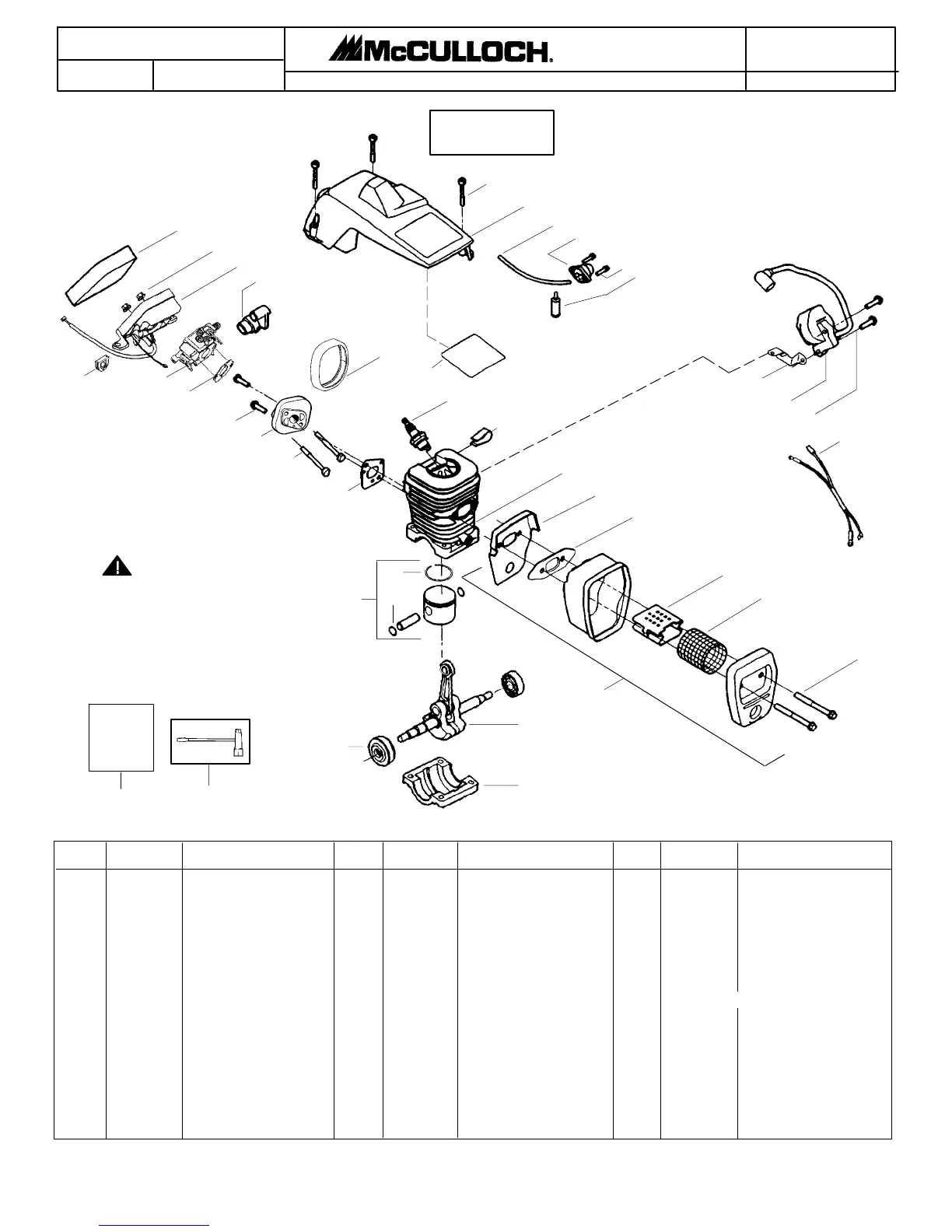

McCulloch MAC CAT 435 - Type 5 Chainsaw Components (Alternate); Kit-Air Purge; Engine Gasket Kit

10
Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
CHAIN SAW MODEL(s)
530087882
MAC CA T
DATE
6/21/04
Replaces
PARTS LIST
87882 -- 4/19/04
335, 435, 440
1. 530016153 Screw
2. 530055638 Ass y--- Cylinder Shield
(includes # 16)
3. 530069247 Kit--- Fuel Line (Small)
4. 530071835 Kit--- Air Purge (Incl. #5)
5. 530015780 Screw
6. 530095646 Ass y--- Fuel Pick--- up
7. 530047442 Strap--- Ground
8. 530039198 Ignition Module
9. 530015814 Screw
10. 530057475 Assy--- Wire Harness
11. 530037793 Foam--- Air Filter
12. 530016101 Nut
13. 530057702 Assy--- Air Box
14. 530035526 Grommet---Carb Adjust
15. 530054144 Seal--- Carb Adapter
16. 530055698 Reflector--- Heat
17. 952030150 Spark Plug (RCJ ---7Y)
18. 530016136 Clip--- High Tension Lead
19. 530012550 Cylinder
20. 530049870 Backplate--- Muffler
21. 530069608 Gasket--- Muffler(kit)
22. 530037817 Diffuser---Muffler
23. 530036103 Screen--- Spark
24. 530016132 Bolt--- Muffler
25. 530047631 Grommet--- Throttle Cable
2 6 . --- --- --- K i t --- C a r b u r e t o r
530071820 Zama (W---20)
530071821 Walbro (WT--- 662)
27. 530069608 Gasket--- Carb. (kit)
28. 530016386 Screw
29. 530049700 Carb. Adapter
30. 530016187 Screw
31. 530069608 Gasket--- Adaptor(kit)
32. 530038729 Ring---Piston
33. 530015697 Retainer--- Piston Pin
34. 530071408 Kit--- Piston (Incl. 32 & 33)
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
35. 530069608 Kit--- Engine Gasket
(Incl. 21, 27 & 31)
36. 530031135 Bar Wrench
37. 530056363 Assy--- Seal & Bearing
38. 530037935 Cap ---Crankcase
39. 530047062 Assy--- Crankshaft
40. 530047207 Assy--- Muffler
(Incl . 20 --- 24)
--- --- --- M a n u a l s
530164671 (Scan)
530164672 (Euro I)
530164673 (Euro II)
530165153 (Euro III)
530165154 (Euro IV)
530165155 (Euro V)
530164902 (Eng/Russian)
530165156 (Turkish)
530164912 (Russian)
11
1
14
4
3
10
18
31
34
32
38
37
17
5
Engine
Gasket
Kit
33
7
19
8
9
15
= NEW PART NUMBER FOR THIS IPLn
= REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)K
30
29
28
27
26
13
12
35
2
6
22
23
40
21
39
24
Not Shown
25
20
16
36
All repairs, adjustments and maintenance not
described in the Operator’s Manual must be
performed by qualified service personnel.
WARNING
TYPE 5
n
n
n
n
n
