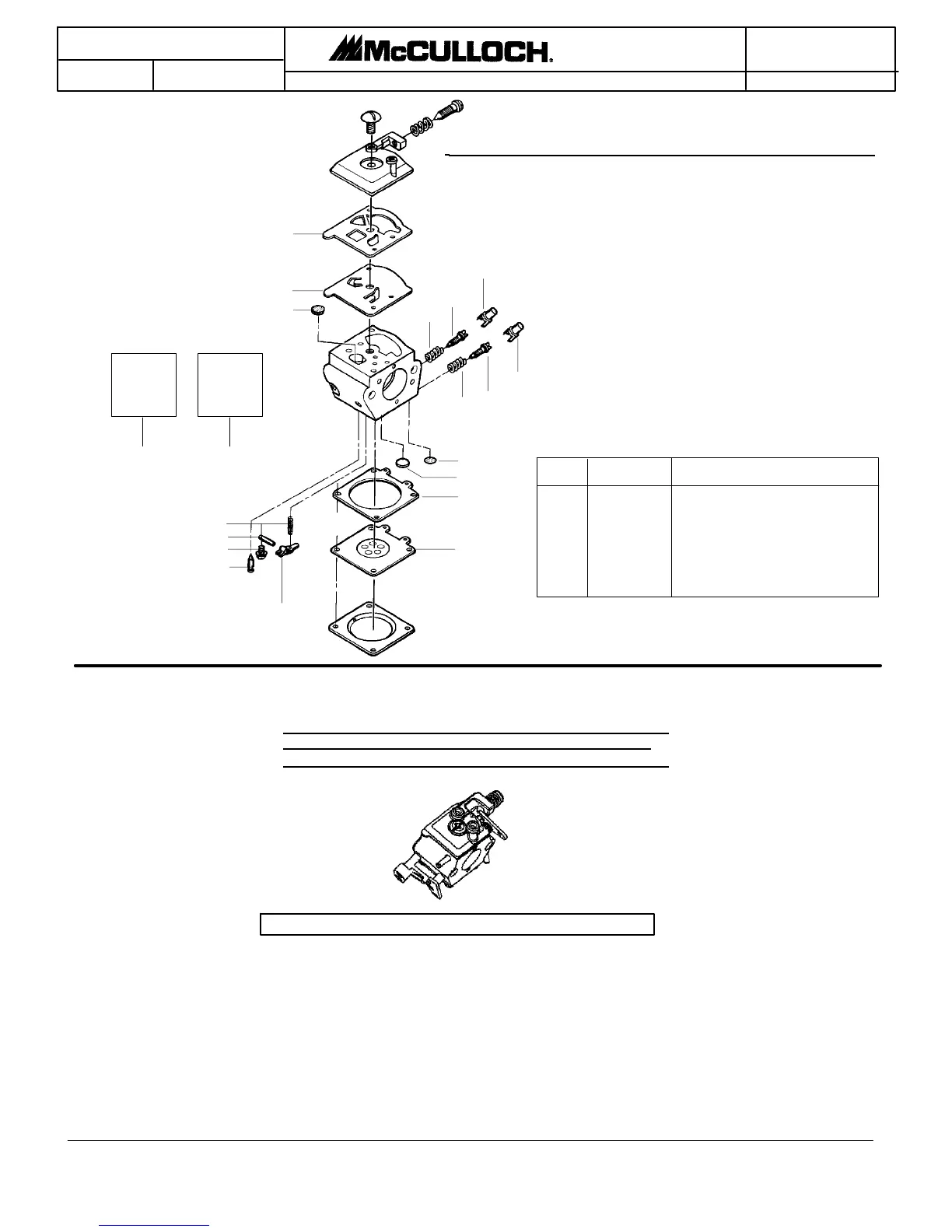

McCulloch MAC CAT 435 - Carburetor Assembly Details; Carburetor Repair Kit; Gasket;Diaphragm Kit

11
Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
CHAIN SAW MODEL(s)
530087882
MAC CA T
DATE
6/21/04
Replaces
PARTS LIST
87882 -- 4/19/04
335, 435, 440
1. 530038479 Limiter Cap --- High
2. 530038478 Limiter Cap ---Low
3. 530069826 Carburetor Repair Kit
( KIT= Indicates Contents) &
Includes Limiter Caps
4. 530069844 Gasket/Di aphragm Kit
( D = Indicates Contents)
Ref. Part No. Description
3
Carb.
Repair
Kit
C a r b u r e t o r A s s e m b l y --- W T --- 3 9 1 --- #530069722
1
2
KIT D
KIT D
KIT
KIT
KIT
KIT
KIT
KIT
KIT D
KIT D
KIT
KIT
Gasket/
Dia.
Kit
4
KIT
KIT
KIT
KIT
=
NEW PART N UMBER FOR THIS IPLn
= REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
Kit -- Carburetor Assembly No. 530071621 -- WT--625
Note: No Repair kits are available for these carburetors
Kit -- Carburetor Assembly No. 530071820 -- W--20
Kit -- Carburetor Assembly No. 530071821 --
WT--662
